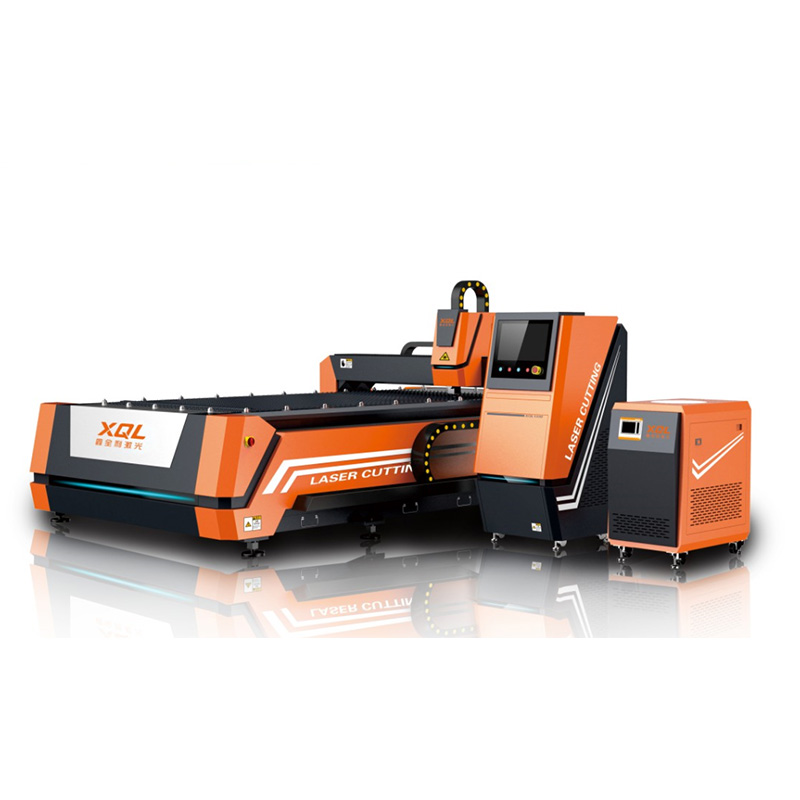

Fiber Advantage
Cost advantage:
1.It can cut sheet metal by Air compressor.
2.Lifespan is 100,000 hours.
3.Laser source 2years warranty.
4.Easy control system.
Environmental Protection and Energy Saving:
1. Higher electro-optical conversion rate: fiber cutting machine's electro-optical conversion rate about 30%, it is 3 times higher than co2 fiber cutting machine.
2. Higher cutting speed and efficient, 2 time faster than YAG or CO2 laser.
3. Low cost: Machine power consumption is 20% -30% of same power co2 laser
cutting machine, every hour consumed 0.5w to 1.5 w electricity, it is very easy to maintain: no need to adjust optical path.
Product Configuration
| Model | 3015 | Servo Motor | Jaskawa / Schneider (option) | Power supply | 220V/380V / 50HZ~60HZ |
| Working size | 3000X1500mm / 4000X1500mm / 6000X1500mm | Control System | Cypcut | Positioning Accuracy | <0.1mm/m |
| Power | 1000W/1500W / 2000W / 3300W | Reducer | Motovrio | The Best Running Speed | 45m/min |
| Laser generator | RAYCUS / IPG | Gear Rack | Taiwan | The Max Running Speed | 80-90 m/min |
| Cutting Head | OSIPRI / Raytools / WSX (option) | Guide Rail | Taiwan | Accelerated Speed | 0.8 G - 1.0 G |
