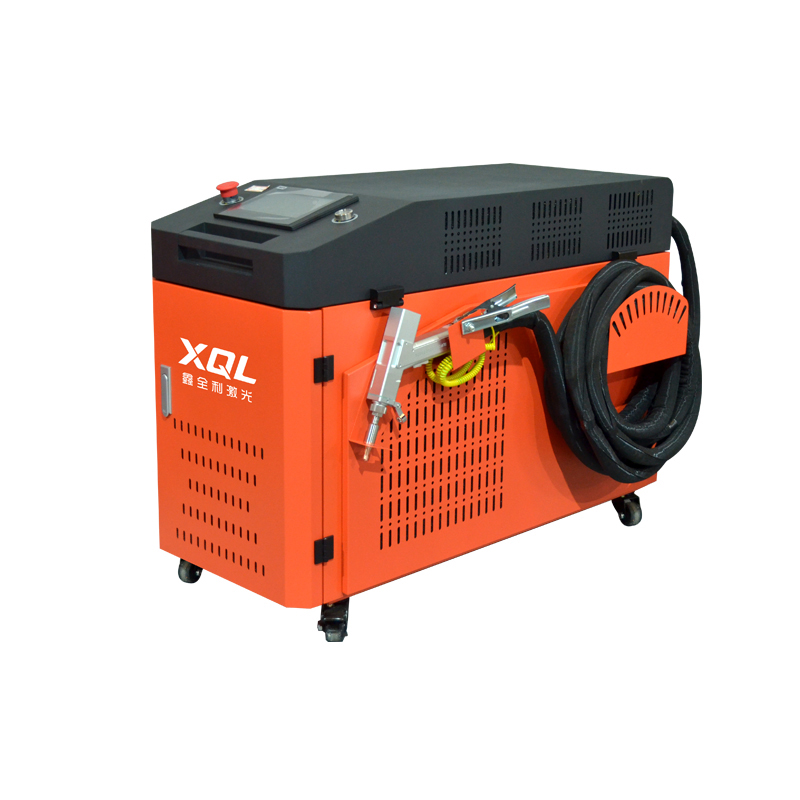

Handheld laser cutter front view with water-cooled design and digital control system for welding, cutting, and cleaning applications

Close-up of handheld laser cutter welding head showing ergonomic grip, water-cooled fiber connector, and precise laser focus for stable metal cutting and welding

XQL Model H Water-Cooled Handheld Fiber Laser Welding Machine

Model H water-cooled handheld fiber laser welding machine provides a three-in-one solution for welding, cutting, and cleaning. It offers a wide range of processing capabilities, producing smooth and beautiful welds while reducing subsequent polishing processes. Simple to operate and utilizing digital welding, it makes the welding process more convenient. This versatile machine is widely used in industries such as kitchenware, hardware, and lighting.

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Advantage:

1. Efficiency increased by 2-10 times.

2. High-quality welding with smooth weld seams, no need for subsequent grinding.

3. Low cost, saving at least 2 welders.

4. 360 degree flexible movement welder with no experience can do a good job.

5. Welding mode with or without wire function as cutter for thin steel.

Product Configuration

No.	Name	quantity	Specification	Remark
1	Fiber laser	1 set	1000W/1500W/2000W	Raycus/XQL
2	Handheld welding head	1 pc	Wobble	CQWY
3	Optical fiber cable length	1 set	10 m	Raycus/XQL
4	Control system	1 set	Touch screen	CQWY
5	Electrical control	1 set	Automatic air blow	CQWY
6	Wire feeder	1 set	Automatic wire feeding	CQWY
6	Wire feeder	1 set	0.8, 1.0, 1.2, 1.6	/
7	Water chiller	1 set	Dual temperature	XQL
8	Protective lens	5 pieces	D18*T2	/
9	Nozzles	1 set	1 set	/
10	Machine tool machinery platform and accessories	1 set	One-piece sheet metal	/

Technical Parameter

Index	Parameter
Machine model	XQL-H1000H/1500H/2000H
Laser power	1000W/1500W/2000W
Power required	AC 220V/380V 50/60Hz
Physical dimension	985600758(mm)
Weight	150kg
Cooling method	Water cooling
Cooling water temperature	5-45℃
Laser source	Fiber laser
Laser wavelength	1080±5nm
Adjusted spot range	0.1-5（mm）
Laser energy stability	<2%
Fiber optical length	Standard 10 meters, support 15 meters
Fiber core diameter	25/50(um)
Aiming and positioning	Red light positioning
Power adjustable range	10-100%
Work patterns	Continuous
Wobble frequency	0-300(Hz)
Air humidity	10-90%
Auxiliary gas	Argon/Nitrogen, Water-Free & Oil-Free air

Welding Parameter

Items	1000W	1500W	2000W
Stainless steel	2 mm	3 mm	4 mm
Carbon steel	2 mm	3 mm	4 mm
Aluminum	1.5 mm	2 mm	3 mm
Galvanized sheet	1.5 mm	2.5 mm	3 mm
Welding width	≤5 mm
Remark	Based on the actual welding effect test, this test data is for reference only.
