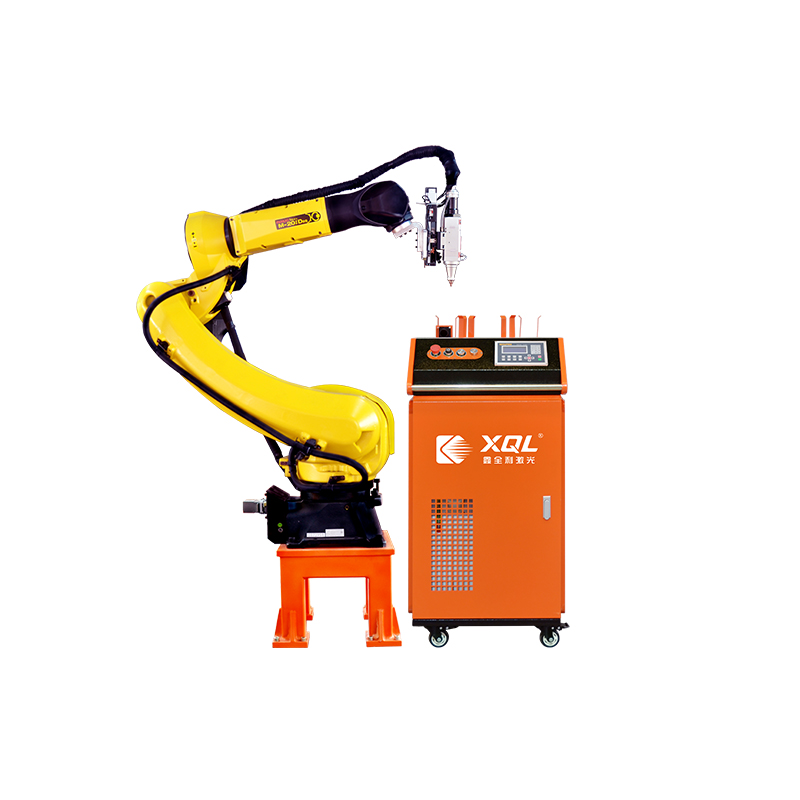

XQL JC3000 Robot Laser Cutting Machine
XQL JC3000 Robot Laser Cutting Machine XQL JC3000 Robot Laser Cutting Machine

loading

XQL JC3000 Robot Laser Cutting Machine

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Three-dimensional laser cutting is the use of industrial robots flexible and fast performance, according to the user cutting processing workpiece size is different, you can choose to put the robot formal or flip to different products, different tracks for teaching programming or off-line programming, the sixth axis of the robot loaded fiber laser cutting head three-dimensional cutting irregular workpiece.
SKU:
Availability:
Quantity:

Product Advantage:

1. Large range of complex space curve cutting.
2. Suitable for cutting of various materials and different thicknesses.
3. Rapid deployment of process transformation.
4. Personnel safety protection and equipment safety.
5. Expansion of cutting process.


Technical Parameter


Machine ModelXQL-JC3000
Laser Source BrandRAYCUS/XQL LASER
Laser Power1500W/2000W/3000W
Cooling modeWater cooling
Cutting thickness0.3mm≤ Aluminum ≤6mm
0.3mm≤ stainless steel ≤10mm
0.3mm≤ Carbon steel ≤20mm
(It depends on the power)
Number of axes6
Maximum arm span1688mm
Repeated positioning accuracy士0.05mm
payload20kg
Protection classIP65
