Product Description:
Fast speed, High precision, low consumption!

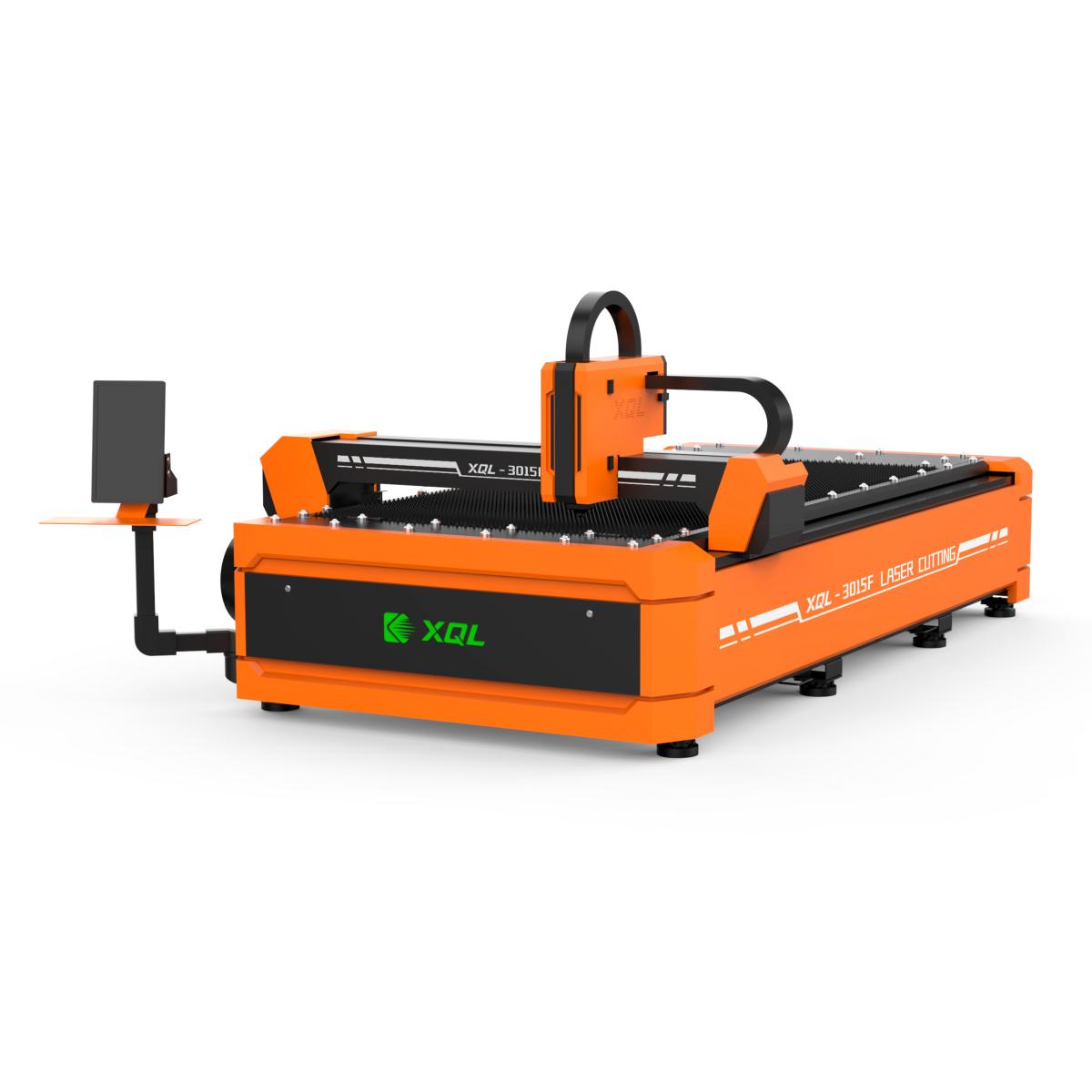

XQL-3015F industrial fiber laser cutting machine is Integrated design, small footprint, mainly suitable for metal processing enterprises in sheet metal industry. High strength bed structure ensure long-term stable. The cutting head is automatically focusing, which can good cutting quality and smooth cutting surface. The product has a professional laser cutting software, with graphic layout and sharp smoothing processing functions, can achieve high-speed drilling and marking functions.
Product Advantage:
1: Compact integrated design, low space cost.

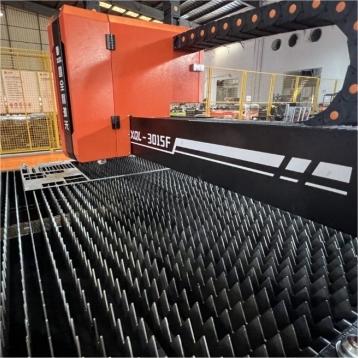

2: The bed is stable and durable, the equipment is stable and the service life is long.

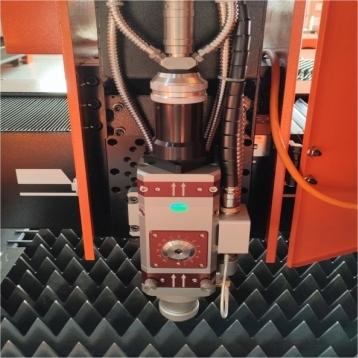

3: Equipped with automatic focusing cutting head, intelligent and efficient cutting.
4: Fiber cutting machine power consumption is 20% -30% of same power CO2 laser cutting machine, every hour consumed 0.5 W to 1.5W electricity, it is very easy to maintain: no need to adjust optical path.
Product Configuration
| NO. | Name | Quantity/Specification | Brand | Remark |
| 1 | Control System | 1 set | RayTools X3S /FSCUT | Optional |
| 2 | Programming software |
|
|
|
| 3 | Fiber-optic laser | 1500-3000W | Raycus | Wuhan |
| 4 | Cutting head | 1 pcs | RayTools/Ospri | Optional |
| 5 | Machine bed | 1 set | Tube welding bed | 聽 |
| 6 | Tool machinery platform and accessories | Cutting width 3000*1500mm |
| XQL Customization |
| 7 | Servo Motors and Drives | 1 set | Inovance | China |
| 8 | Precision reducer | 1 pc | Motoreducer | China |
| 9 | Chiller | 1 set | Hanli | Wuhan |
Technical Parameter
| Name | Parameter |
| Machine Model | XQL-3015F |
| Power | 1500W/2000W/3000W |
| Machining area (length * width) | 3000*1500(mm) |
| X-axis stroke | 3050(mm) |
| Y-axis stroke | 1550(mm) |
| Z-axis stroke | 150(mm) |
| Positioning precision of X/Y axis | ±0.03mm/m |
| Maximum speed | 80m/min |
| Protection rating of main power | IP54 |
| Operating Voltage | AC220V/AC380V |
| Frequency | 50Hz/60Hz |
| Equipment size | 4800*2700*1800(mm) |
| Total weight | 1800kg |
| Material | Laser Power |
| 1000W | 1500W | 2000W | 3000W | 6000W | 8000W | 12000W | 20000W |
| Carbon Steel | 10 | 14 | 16 | 20 | 25 | 30 | 40 | 70 |
| Stainless Steel | 4 | 6 | 8 | 10 | 16 | 30 | 30 | 50 |
| Aluminum | 3 | 3 | 4 | 6 | 14 | 25 | 30 | 30 |
| Brass | 2 | 3 | 4 | 5 | 10 | 12 | 16 | 20 |
