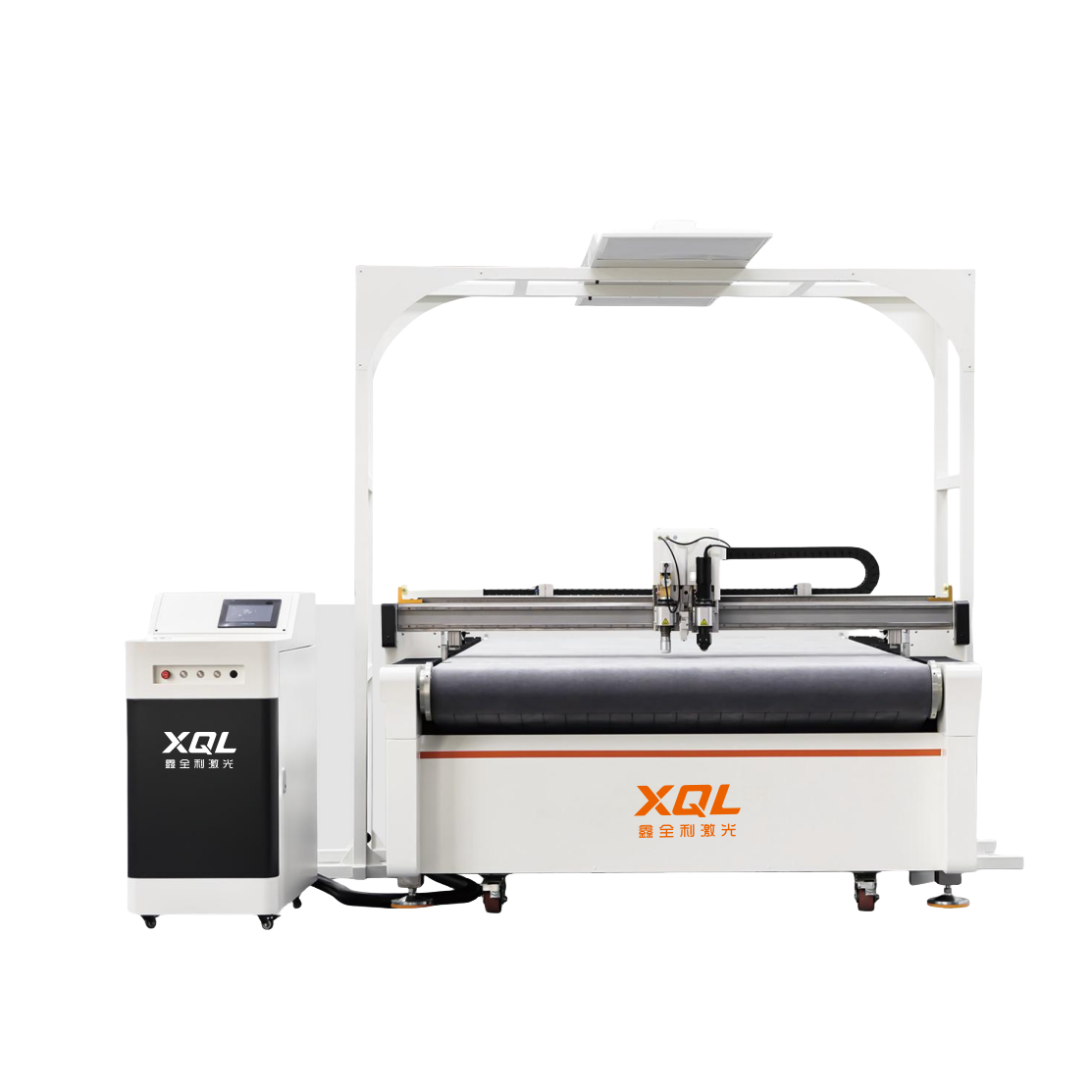

Front view of CNC laser and vibrating knife cutting machine with aluminum table and felt conveyor for precise cutting of PVC, acrylic, and foam materials
Front view of CNC laser and vibrating knife cutting machine with aluminum table and felt conveyor for precise cutting of PVC, acrylic, and foam materials Front view of CNC laser and vibrating knife cutting machine with aluminum table and felt conveyor for precise cutting of PVC, acrylic, and foam materials

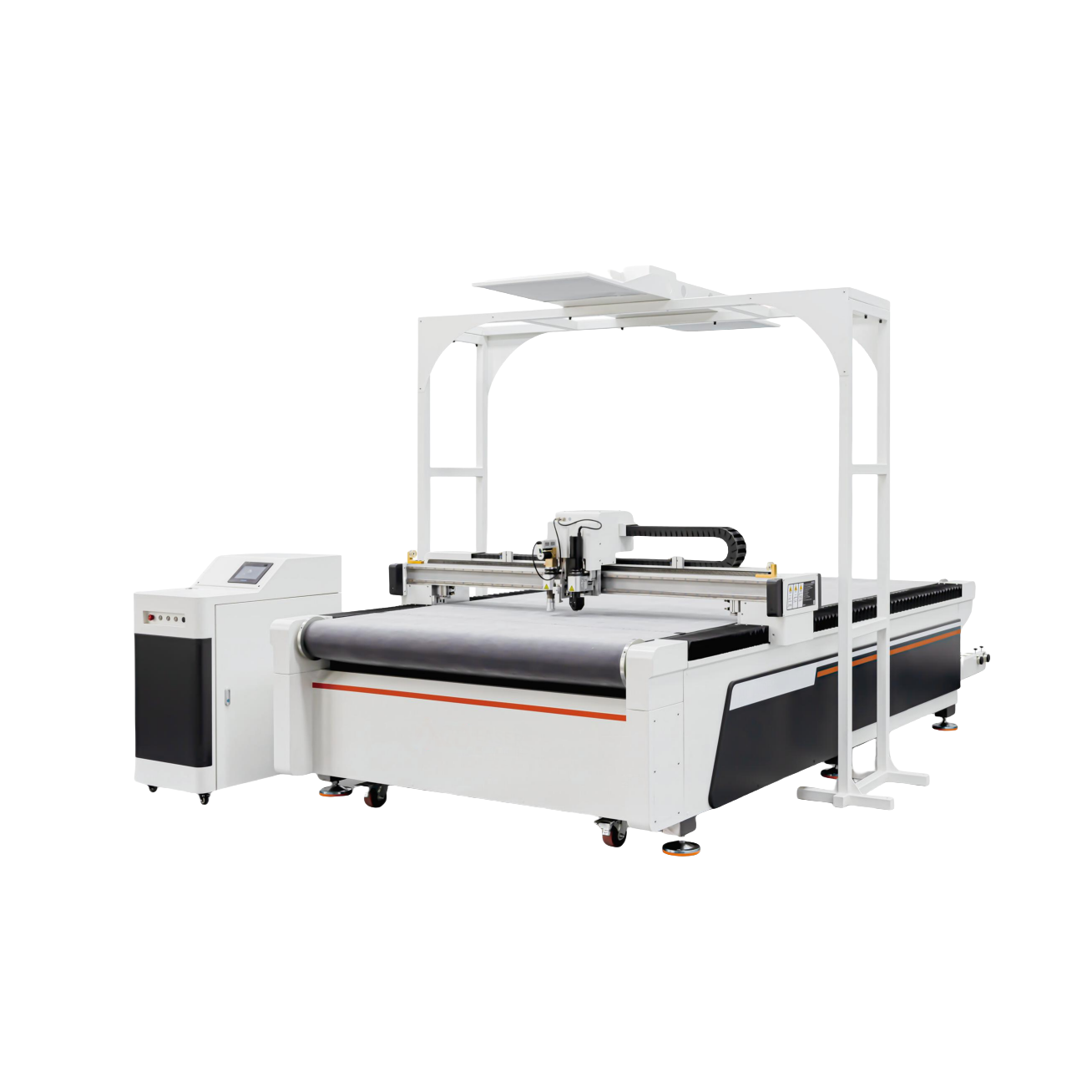

Full view of 3D laser cutting and vibrating knife system with automatic feeding rack and smart camera positioning for high-speed material cutting Full view of 3D laser cutting and vibrating knife system with automatic feeding rack and smart camera positioning for high-speed material cutting

loading

XQL Vibrating Knife Cutting Machine

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
The vibrating knife cutting machine has an aluminum table, felt conveyor, and rear feeding rack for continuous roll processing. It uses AC servo motors with planetary gear reducers, polished rack and pinion, and linear guide rails. The smart system offers network connectivity, camera positioning, and one-key no-white-border cutting.
SKU:
Availability:
Quantity:
Inquire Add to Basket

Product Application

Various corrugatedcardboard, yellow cardboard, redcardboard, PVCboards, honeycomb boards, PVCfoamboards, acrylic, KTboards, alu- minum composite panels, fiber midsoles and rubber boards, thick foam plastic, car stickers, adhesives, reflective flm, photo paper, photo PVC, etc.


Product Configuration

NO.NameQuantitySpecification/BrandRemark
1Control system1 setPC Touch screenShenzhen
2Worktop1 setGuide belt styleChina
3Special laser cutting head1 pc/China
4Guide rail1 set/Taiwan,China
5Servo Motors and Drives1 set/China
6Precision transmission1 set/China
7CCD Camera1 pc/China
8Chiller1 pc/China


Technical Parameter


NameParameter
Machine model1625Z
Vacuum pump power7.5KW
Total power9.5KW
Machining area (length × width)2500*1600(mm)
Equipment size3900*2585*1350(mm)
Cutting speed300-1800mm/min
Cutting thickness<50mm
Transmission systemHigh-end all servo drive, imported linear guide slide block
Operating voltageAC220V/380V 50/60Hz
Working temperature0-35℃
Air humidity35-80%
Operation end formPC Touch screen
JPG-Key generate path and optimizationSupported
