Product Character:
1. Honey-bomb table/ blade plate table: The design of two platforms increases the application scenarios of the equipment. Honey-bomb table is suitable for soft material like paper, leather. And blade plate table is suitable for hard material like acrylic, wood, mdf.
2. Four direction feeding and returning design: The four directions of the equipment are accessible to materials, convenient for batch processing, and processing of special materials and bulk materials.
3. Red light positioning system: The built-in red light makes the red light and laser output in the same way, with accurate and real-time positioning.
4. Automatic focus and manual lifting table (Optional): Automatic one button focus, easy focus when processing different materials, speed up efficiency.
5. Closed integrated guide rail: x-axis, Y-axis drive and guide rail adopt closed design, with clean appearance, more effective isolation of smoke and noise, and improvement of movement smoothness and accuracy.
Product Configuration

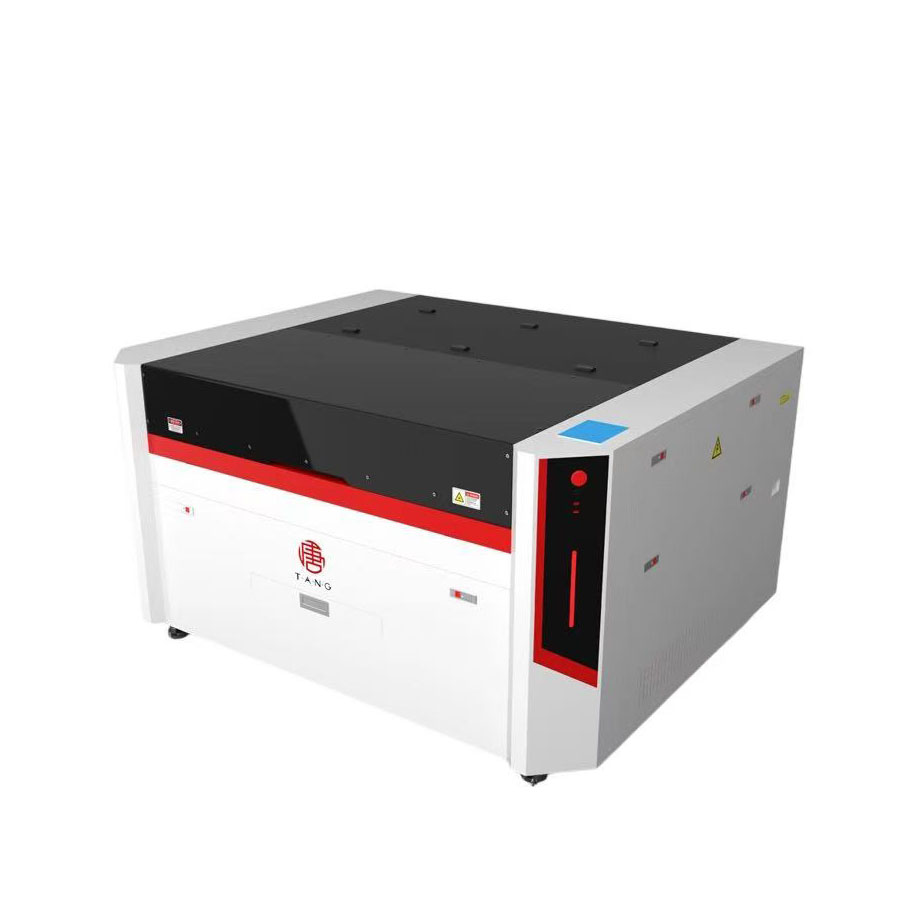

| Model | TAN-1390 |
| Laser power | 130W/150W |
| Laser type | CO2 laser |
| Working area | 1300mmX900mm |
| Processing speed | 0-300mm/s |
| Suitable material | Acrylic, glass, leather, MDF, paper, plastic, plexiglax, plywood, rubber, stone, wood |
| File format | BMP, GIF, JPEG, PCX, TGA, TIFF, PLT, CDR, DMG, DXF, PAT, CDT, CLK, DEX, CSL |
| Input voltage | 220V（AC+10%), 50/60Hz |
| Machine weight | 1940mmX1600mmX1310mm /500kg |
| Control system | RUIDA（RDWorks) |
| Lifting table | Optional configuration |
| Automatic focus system | Optional(Equipped with lifting table together) |
| Wifi | Normal configuration |
| Contour Cutting | CCD Camera(optional) |
| Cutting thickness | (130W)≦Acrylic 10mm |
