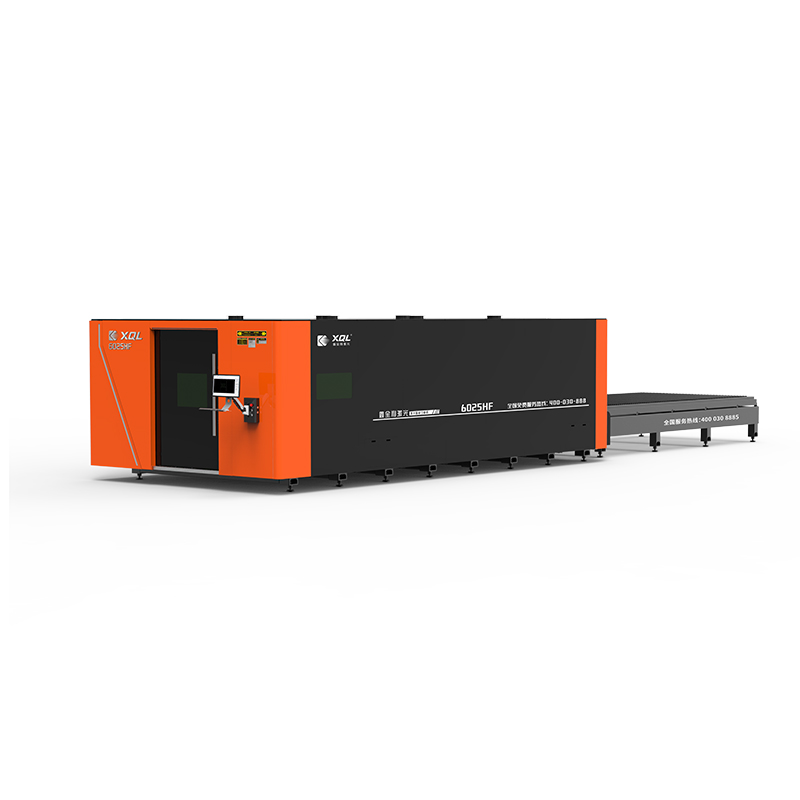

XQL X6025HF Full-Closed Heavy Duty Fiber Laser Cutting Machine

X6025HF fiber laser cutting machine adopts a closed envelope structure of the whole machine,which is dustproof and waterproof protection. The precision ball screw transmission mechanism can meet the processing of precision parts. The automatic cutting head moves with the height of the plate, and the position of the cutting point is always kept unchanged, which is suitable for flat or curved plate cutting, with flexible processing and smooth cutting seams. The intelligent cutting CNC system supports multi-type file import, intelligent typesetting, and simple and convenient operation.

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Advantage：

1. The enclosed enveloping structure of the whole machine protects the machine in all directions.

2. The bed is stable and durable, the equipment is stable and the service life is long.

3. Equipped with autofocus cutting head, intelligently and efficiently cut any pattern.

4. Fiber cutting machine power consumption is 20% -30% of same power CO₂ laser cutting machine, every hour consumed 0.5 W to 1.5W electricity, it is very easy to maintain: no need to adjust optical path.

Product Configuration

NO.	Name	Quantity/Specification	Brand	Remark
1	Control System	1 set	HypCut/Raytools	Optional
2	Programming software	1 set	HypCut/Raytools	Optional
3	Fiber-optic laser	6000-20000W	Raycus	Wuhan
4	Cutting head	1 pcs	RayTools/Ospri	Optional
5	Machine bed	1 set	Plate welding bed
6	Tool machinery platform and accessories	Cutting width 6070*2550mm		XQL Customization
7	Servo Motors and Drives	1 set	Inovance	China
8	Precision reducer	1 pc	Motoreducer	China
9	Chiller	1 set	Hanli	Wuhan

Technical Parameter

Name	Parameter
Machine Model	6025HF
Power	6000W/12000W/20000W
Machining area (length × width)	6000*2500(mm)
X-axis stroke	6050(mm)
Y-axis stroke	2550(mm)
Z-axis stroke	150(mm)
Positioning precision of X/Y axis	±0.03mm/m
Maximum speed	120m/min
Protection rating of main power	IP54
Operating Voltage	AC380V
Frequency	50Hz/60Hz
Equipment size	1200048002200(mm)
Total weight	14000kg

Cutting Parameter

Material	Laser Power
Material	1000W	1500W	2000W	3000W	6000W	8000W	12000W	20000W
Carbon Steel	10	14	16	20	25	30	40	70
Stainless Steel	4	6	8	10	16	30	30	50
Aluminum	3	3	4	6	14	25	30	30
Brass	2	3	4	5	10	12	16	20
