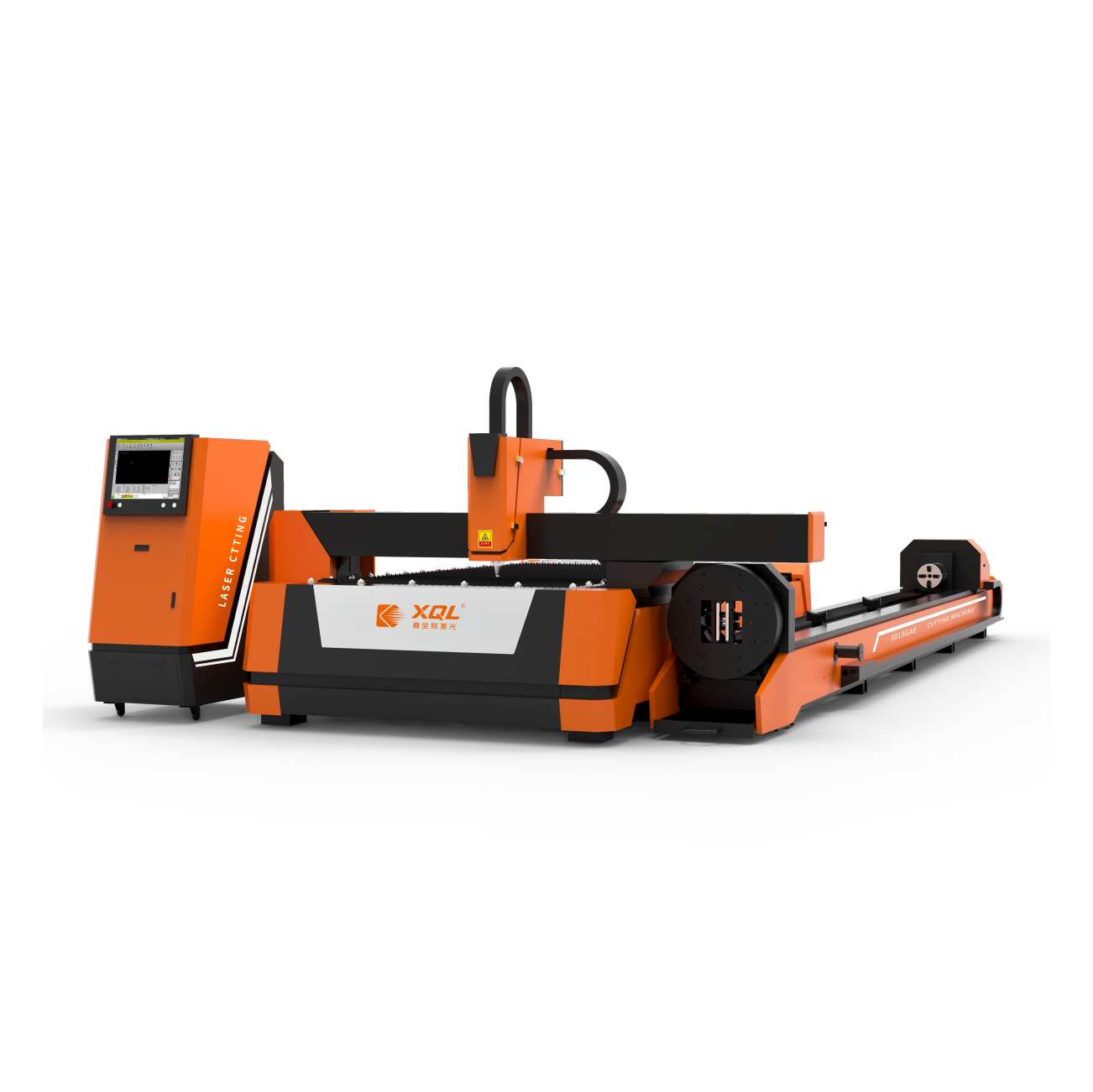

XQL X3015GAE Plate & Pipe Fiber Laser Cutting Machine

The plate & pipe fiber laser cutting machine is dual-purpose, handling metal plate and pipe cutting. It cuts stainless steel, carbon steel, aluminum pipes, and more, for round hole, square hole, and irregular pattern cutting. With a self-centering chuck, it adjusts clamping force automatically, featuring a professional laser cutting system and user-friendly interface.

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Advantage：

1. One machine for two purposes, to meet all kinds of plate and pipe cutting.

2. The bed is stable and durable, the equipment is stable and the service life is long.

3. Advanced chuck clamping system, automatically adjust the clamping force according to the plate specifications.

4. The power consumption of a fiber cutting machine is 20% to 30% of that of a CO2 laser cutting machine with the same power. It uses only 0.5W to 1.5W of electricity per hour and is very easy to maintain, with no need to adjust the optical path.

Product Configuration

NO.	Name	Quantity/Specification	Brand	Remark
1	Control System	1 set	FSCUT	Shanghai
2	Programming software	1 set	FSCUT	Shanghai
3	Fiber-optic laser	1500-3000W	Raycus	Wuhan
4	Cutting head	1 pcs	RayTools/Ospri	Optional
5	Machine bed	1 set	Plate welding bed
6	Tool machinery platform and accessories	Cutting width 3000*1500mm		XQL Customization
7	Servo Motors and Drives	1 set	Inovance	China
8	Precision reducer	1 pc	Motoreducer	China
9	Chiller	1 set	Hanli	Wuhan

Technical Parameter

Name	Parameter
Machine Model	3015GAE
Power	1500W/2000W/3000W
Plate Cutting range (length * width)	3000*1500(mm)
Round & Square pipe processing range	Φ20- Φ220(mm) L 6m
X-axis stroke	3050(mm)
Y-axis stroke	1550(mm)
Z-axis stroke	150(mm)
Positioning precision of X/Y axis	±0.03mm/m
Maximum speed	80m/min
Protection rating of main power	IP54
Operating Voltage	AC220V/AC380V
Frequency	50Hz/60Hz
Equipment size	520032001700(mm)
Total weight	6000kg

Cutting Parameter

Material	Laser Power
Material	1000W	1500W	2000W	3000W	6000W	8000W	12000W	20000W
Carbon Steel	10	14	16	20	25	30	40	70
Stainless Steel	4	6	8	10	16	30	30	50
Aluminum	3	3	4	6	14	25	30	30
Brass	2	3	4	5	10	12	16	20
