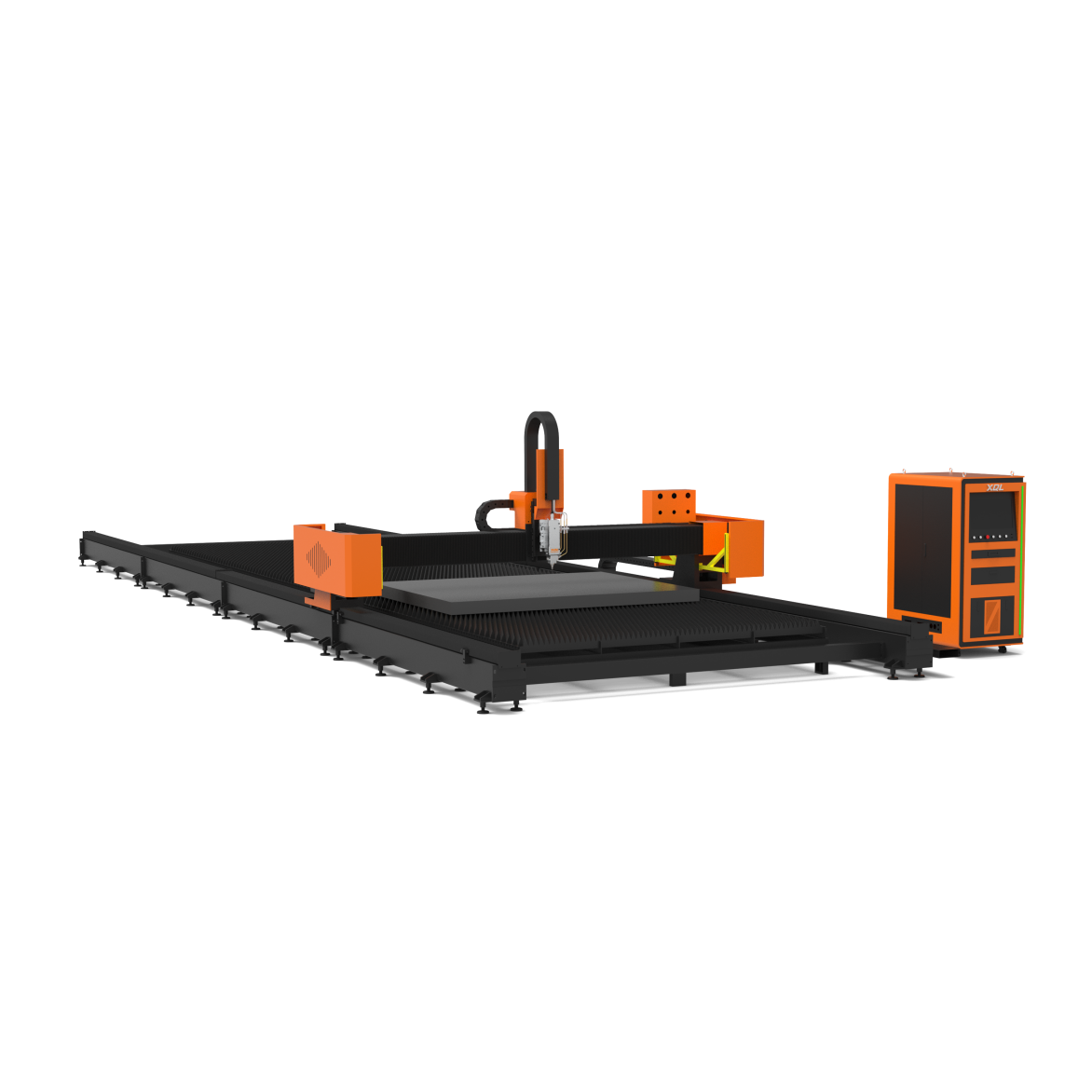

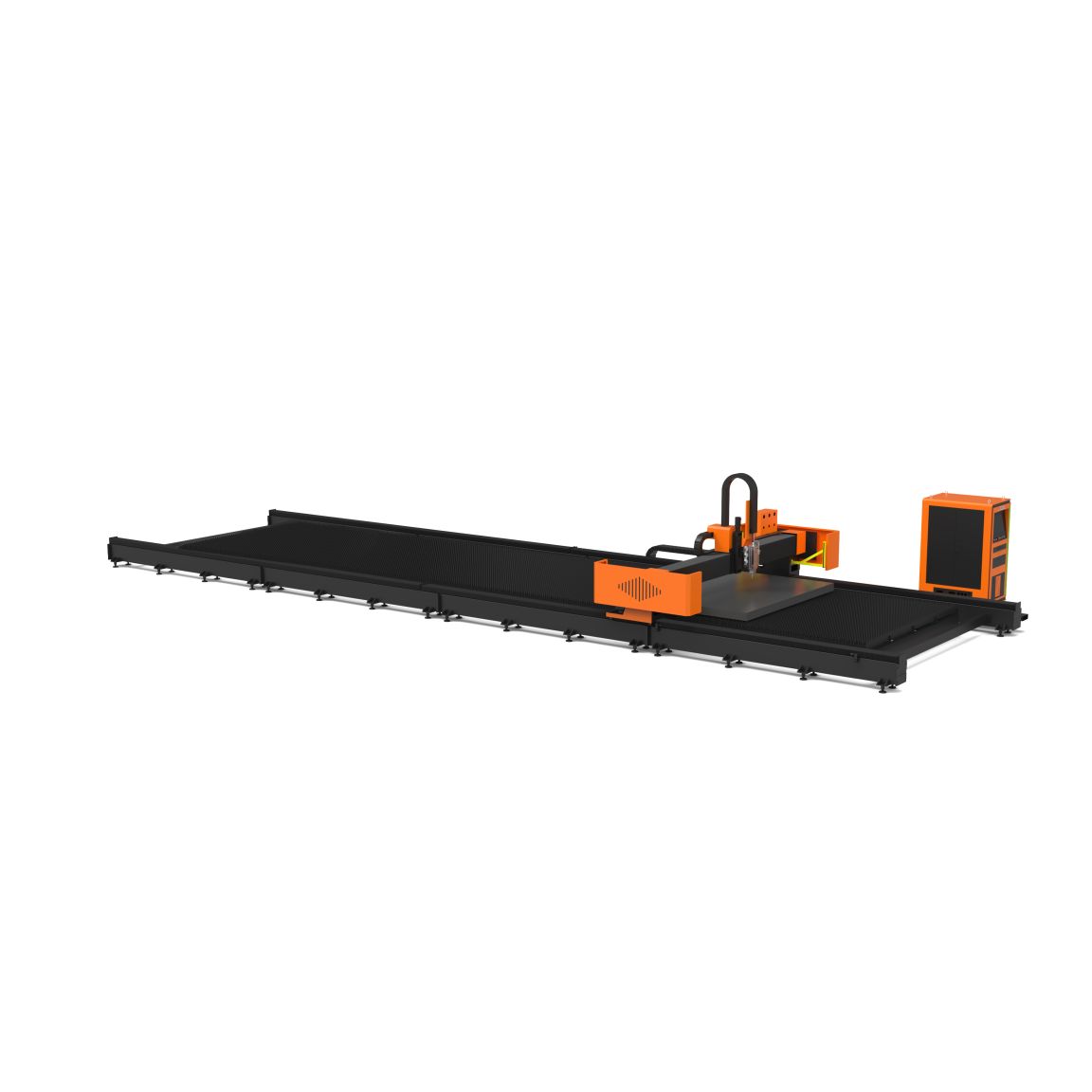

Product Description:
1: Uniquely designed laser optical system, combined with laser and flame cutting heads.
2: Based on high-quality laser beams and powerful flame combustion energy.
3: Higher cutting efficiency.
4: Better cutting seam.
5: Lower energy consumption.
6: Ground rail laser bed.
7: Heavy load-bearing, no thermal deformation.
Product Configuration
NO. | Name | Quantity | Brand | Remark |
1 | Fiber-optic laser | 1 set | XQL Customization | China |
2 | Laser composite cutting head | 1 set | XQL Customization | China |
3 | Control software | 1 set | XQL Customization | China |
4 | Nesting software | 1 set | XQL Customization | China |
5 | Tool machinery platform and accessories | 1 set | XQL Customization | China |
6 | Technical ParameterGuide rail | 1 set | HIWIN | Shanghai |
7 | Rack | 1 set | YYC | Taiwan |
8 | Speed Reducer | 1 pc | Motoreducer | Taiwan |
9 | Servo Motors and Drives | 1 set | Inovance | Taiwan |
10 | Proportional valves | 1 set | SMC | Japan |
11 | High-pressure proportional valves | 1 set | AVENTICS | Shanghai |
12 | Circuit control | 1 set | XQL Customization | China |
13 | Pneumatic control | 1 set | XQL Customization | China |
14 | Chiller | 1 set | Hanli | Wuhan |
Technical Parameter
Name | Parameter |
Machine Model | X13032AE |
Laser power | 3000W |
X-axis stroke | 3200(mm) Customizable |
Y-axis stroke | 13000(mm) Customizable |
Z-axis stroke | 350(mm) |
Positioning precision of X axis | ±0.03mm |
Positioning precision of Y axis | ±0.05mm |
Positioning precision of X axis | ±0.03mm |
Repositioning precision of Y axis | ±0.05mm |
Maximum positioning speed of X/Y axis | 40m/min |
Linkage Maximum Positioning Speed of X/Y axis | 60m/min |
Dynamic response acceleration | 0.6G |
Protection rating of main power | IP54 |
Operating Voltage | AC380V |
Frequency | 50Hz |
