Machine Features:
Full-Color Metal Marking:
Adjustable pulse width enables vivid color effects on stainless steel and anodized materials.
High Precision & Speed:
±0.01 mm accuracy and up to 7000 mm/s marking speed ensure sharp, efficient production.
No Consumables & Long Lifespan:
Fiber laser technology offers long service life with zero consumable costs.
Wide Material Compatibility:
Supports engraving on metals, plastics, anodized aluminum, coated surfaces, and more.
Flexible Working Area Options:
Available in 110×110, 200×200, and 300×300 mm marking fields.
Professional EZCAD Control:
Stable, user-friendly operation with support for multiple file formats like AI, PLT, DXF, and BMP.
Optional Automation Modules:
Rotary axis and lift platform allow precise marking on cylindrical or multi-height products.
Products Specification:
| Item | Specification |
| Laser Type | MOPA Fiber Laser |
| Laser Power Options | 20W / 30W / 50W / 70W |
| Working Accuracy | ±0.01 mm |
| Marking Depth | Up to 3 mm |
| Marking Speed | 7000 mm/s |
| Operation Mode | Pulsed |
| Cooling System | Air Cooling (Built-in) |
| Pulse Width | Adjustable |
| Wavelength | 1064 nm |
| Supported Marking Areas | 110×110 mm / 200×200 mm / 300×300 mm |
| Graphic Formats Supported | AI, PLT, DXF, BMP, DST, DWG, LAS, DXP |
| Control Software | EZCAD |
| Control System | EZCAD-based digital control |
| Optional Configurations | Rotary axis, lifting platform, and other customizable automation |
| Machine Weight | 59 kg |
| Key Features | Multi-function, no consumables, long lifespan, maintenance-free |
| Warranty | 2 Years |
| Product Application | Metal color marking, engraving, coding, logo marking, serial numbers, patterns |

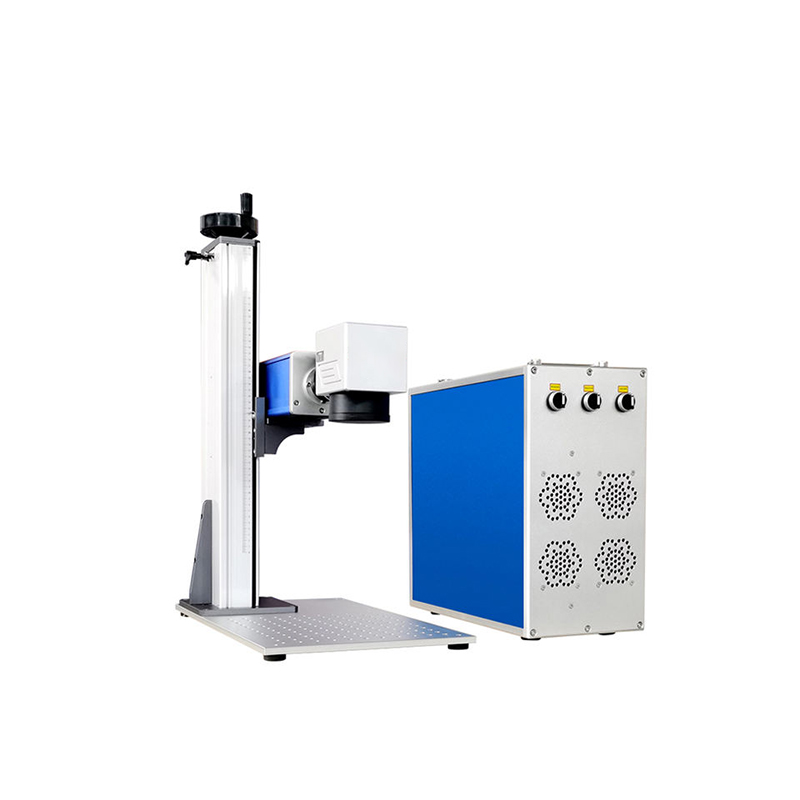

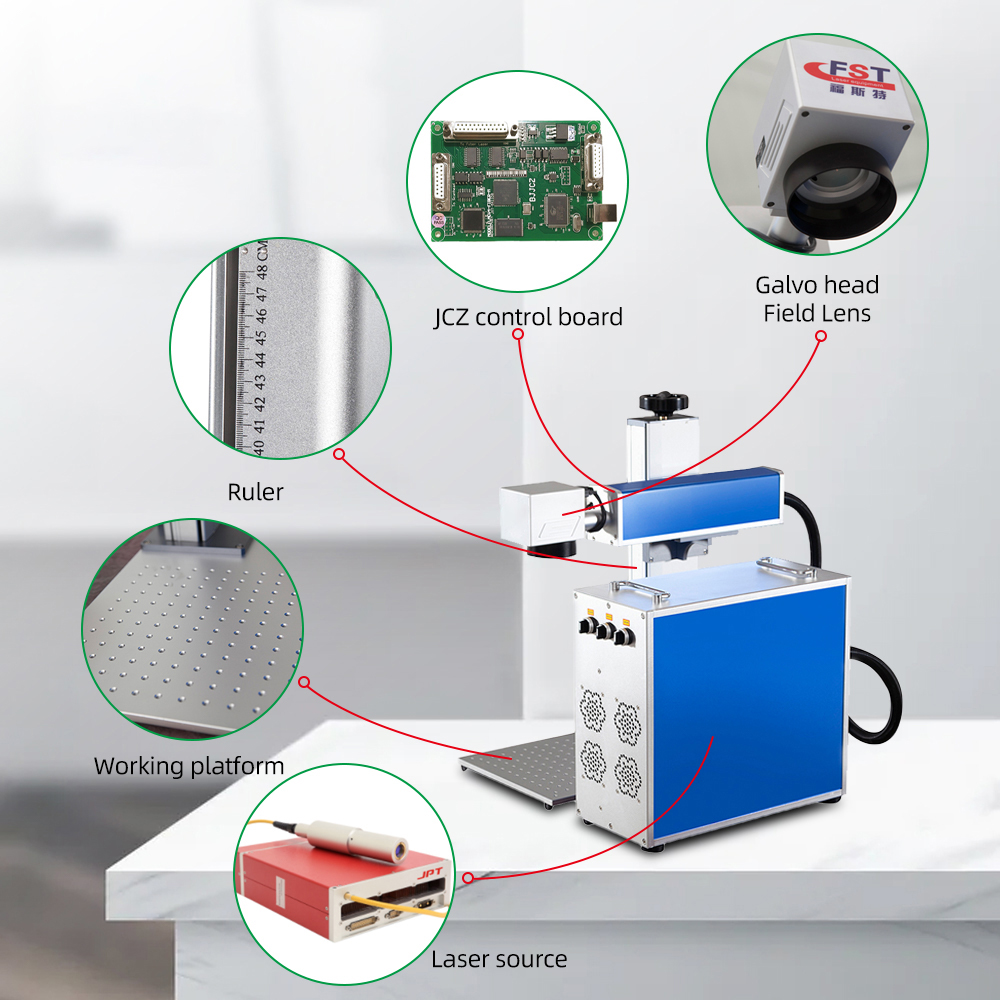

Products Pictures:
