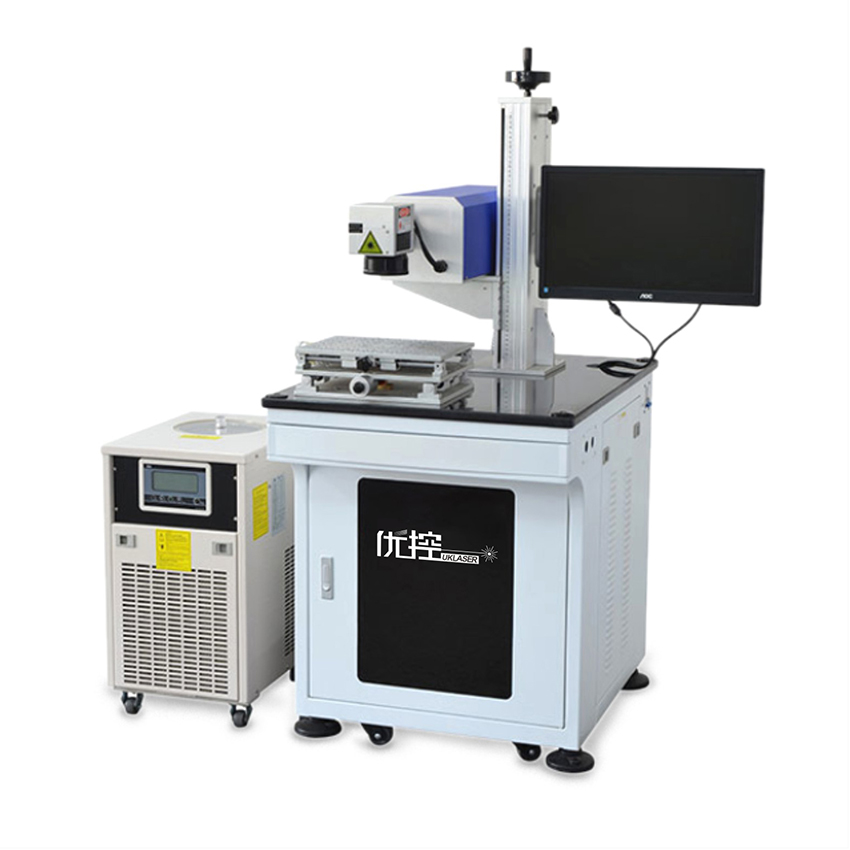

Front view of UV laser marking machine for high-precision marking on glass, ceramics, and polymer materials using 355nm ultraviolet laser
Front view of UV laser marking machine for high-precision marking on glass, ceramics, and polymer materials using 355nm ultraviolet laser Front view of UV laser marking machine for high-precision marking on glass, ceramics, and polymer materials using 355nm ultraviolet laser

loading

UK UV Laser Marking Machine

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Ultraviolet laser marking machine belongs to the series of laser marking machines, and is currently a relatively advanced laser marking equipment in China. However, it is developed using a 355nm ultraviolet laser. Compared with infrared lasers, this machine uses third-order intracavity frequency doubling technology. The 355 ultraviolet light has a very small focus spot. The effect of marking is to directly break the molecular chain of substances through a short-wavelength laser.
SKU:
Availability:
Quantity:
Inquire Add to Basket




Technical Parameter

ModelUK-UV-3WUK-UV-5W
Laser Power3w5w
Wavelength355nm355nm
Minimum Line Width0.01mm0.01mm
Minimum Character0.1mm0.1mm
Power Stability (12h)(12h)<1.5(12h)<1.5
Pulse Repetition Frequency100KHz100KHz
Peak Power125uj/10kw125uj/10kw
Power Demand220V/50H220V/50H
Frequency20-100KHz20-100KHz
Cooling RangeWater cooling/AirWater cooling/Air
Marking Range100mm*100mm（Optional parts）100mm*100mm（Optional parts）
Moving Temperature+10 to+30℃(46 to 95 to)+10 to+30℃(46 to 95 to)
Marking Speed≤15000mm/s≤15000mm/s
