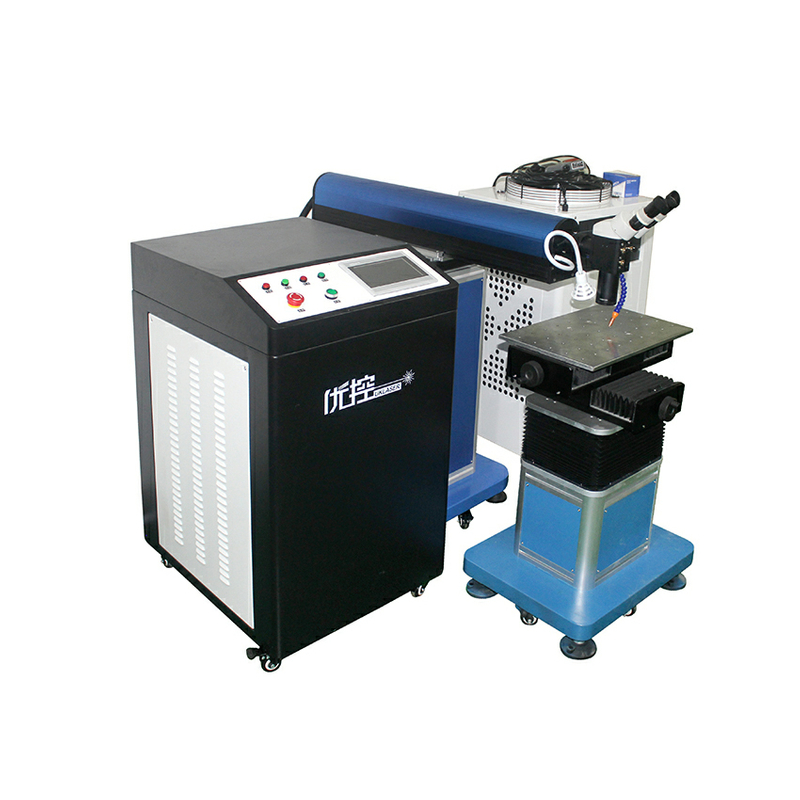

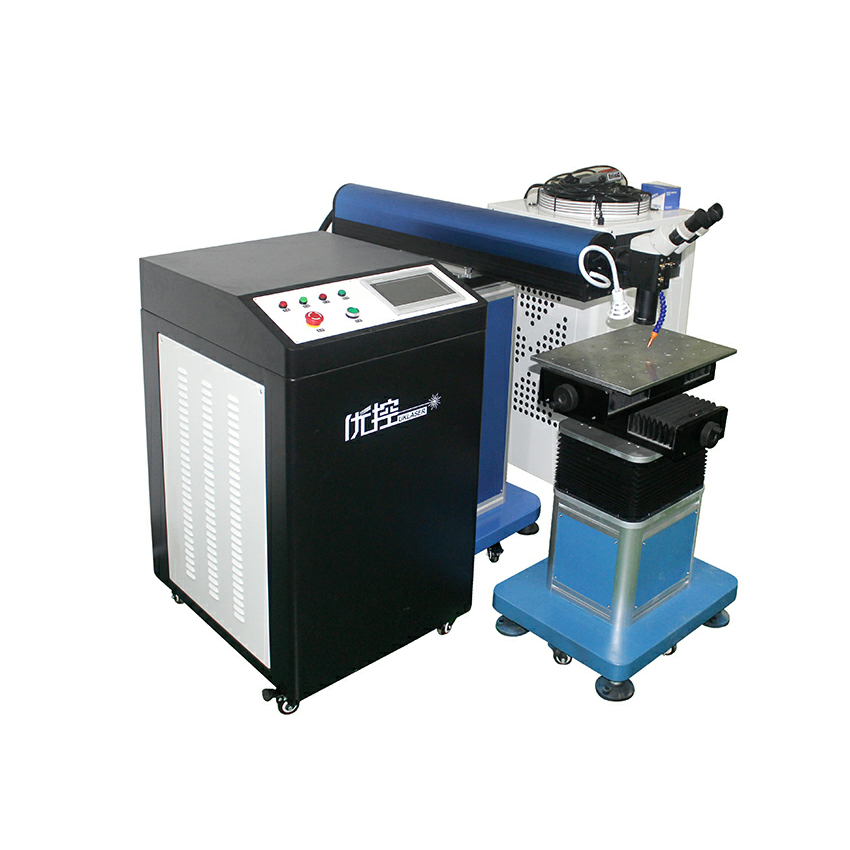

UK Mold Laser Welding Machine

Mold laser welding machine is also known as: mold laser welding machine, laser deposition welding machine, laser repair welding machine, casting repair machine, etc. It uses the working principle of the laser deposition welding system. Through the high heat generated by the laser, the special welding wire is welded to the damaged part of the mold, and it is firmly welded to the original base material. It can effectively handle some small parts of welding and repair work. It makes up for the shortcomings of traditional argon arc welding technology in repairing and welding the surface of fine objects

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Features:

1: Small heat affected area

2: Will not cause deformation of precision molds

3: The welding depth is large and the welding is firm

4: Fully melted, without pores and trachoma, leaving no traces of repair

5: The light dew can be rotated 360 degrees

6: The size of the light spot can be adjusted manually/automatically

7: Can work continuously for 24 hours

Application:

Widely used in mold steels such as 2344, S136, 718, 738, SKD-11, NAK80, ordinary alloy steel, stainless steel, carbon steel, copper, beryllium copper, plastic molds, stamping molds, die-casting molds, etc.

Technical Parameter

Product Model	UK-MW200	UK-MW300	UK-MW400	UK-MW500
Maximum Power	200w	300w	400w	500w
Wavelength	1064nm	1064nm	1064nm	1064nm
Welding Depth	0.1~2.0mm	0.1~2.2mm	0.1~2.5mm	0.1~3.0mm
Pulse Width	≤20ms	≤20ms	≤20ms	≤20ms
Pulse Frequency	≤20-50Hz	≤20-50Hz	≤20-50Hz	≤20-50Hz
Light Spot Adjustment Range	0.1~2.0mm	0.1~2.2mm	0.1~2.5mm	0.1~3.0mm
Observation System	Microscope	Microscope	Microscope	Microscope
Power Demand	220v±10%50Hz	220v±10%50Hz	380V ± 10% 50Hz/three-phase	380V ± 10% 50Hz/three-phase
Workbench Three-Axis Travel	250150300	250150300	250150300	250150300
Welding Wire	0.1~0.5mm	0.1~0.6mm	0.1~0.8mm	0.1~0.8mm
Cooling Method	Water cooling	Water cooling	Water cooling	Water cooling
