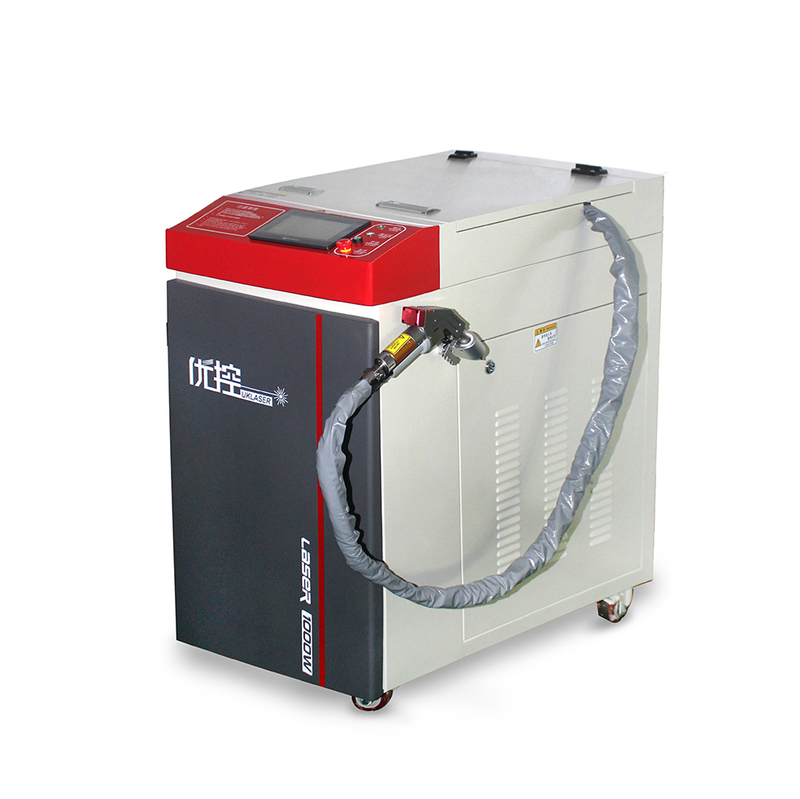

Handheld fiber laser welding machine front view with PLC control panel and ergonomic torch for precision metal welding
Handheld fiber laser welding machine front view with PLC control panel and ergonomic torch for precision metal welding Handheld fiber laser welding machine front view with PLC control panel and ergonomic torch for precision metal welding

loading

UK Handheld Fiber Continuous Laser Welding Machine

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
It can be controlled by the PLC control system during the welding process. Set the laser swing amplitude (range: 0mm-2mm). The width of the weld seam can be automatically adjusted by the swing amplitude, which solves the defect that traditional hand-held laser welding has high requirements on the weld seam. Greatly improve the welding fault tolerance rate. Moreover, safety protection measures have been added, which only emit light to the metal! The operation is simple and easy to use, the structure is simple and easy to maintain, the volume is greatly reduced, and the wire can be fed during the welding process, which is suitable for industry and household use.
SKU:
Availability:
Quantity:

Application:

It is widely used in kitchen and bathroom industry, home appliance industry, advertising industry, mold industry, stainless steel doors and windows industry, handicraft industry, household goods industry, furniture industry, auto parts industry and other industries.


Technical Parameter


ModelUK-HJLX-SC500WUK-HJLX-SC1000WUK-HJLX-SC1500W
Laser Power500w1000w1500w
Laser Wavelength1070±5 nm1070±5 nm1070±5 nm
Operation ModeContinuous/ModulationContinuous/ModulationContinuous/Modulation
Output Welding Head TypeHandheld swinging headHandheld swinging headHandheld swinging head
Output Power Stability<3%<3%<3%
Power Regulation Range10~100%10~100%10~100%
Weld Penetration0.5~2.0mm0.5~2.0mm0.5~2.0mm
Spot Width0.2-3mm0.2-3mm0.2-3mm
Cooling MethodBuilt in water coolingBuilt in water coolingBuilt in water cooling
Fiber Optic Cable LengthStandard configuration: 10 meters, MAX15 metersStandard configuration: 10 meters, MAX15 metersStandard configuration: 10 meters, MAX15 meters
Blowing ProtectionArgon, nitrogenArgon, nitrogenArgon, nitrogen
Power DemandAC220v/50HzAC220v/380v/50HzAC380v/50Hz
Power3.5 Kw4.5 Kw5.5 Kw
Cover An Area1*1.6m1*1.6m1*1.6m
Whole Machine Weight180 Kg200 Kg200 Kg
Operation Temperature0~40°C0~40°C0~40°C
Working Humidity10~75%10~75%10~75%
Environmental RequirementsNo vibration, no interference source, maintain ventilationNo vibration, no interference source, maintain ventilationNo vibration, no interference source, maintain ventilation
ConsumablesPurified water, argon gasPurified water, argon gasPurified water, argon ga
