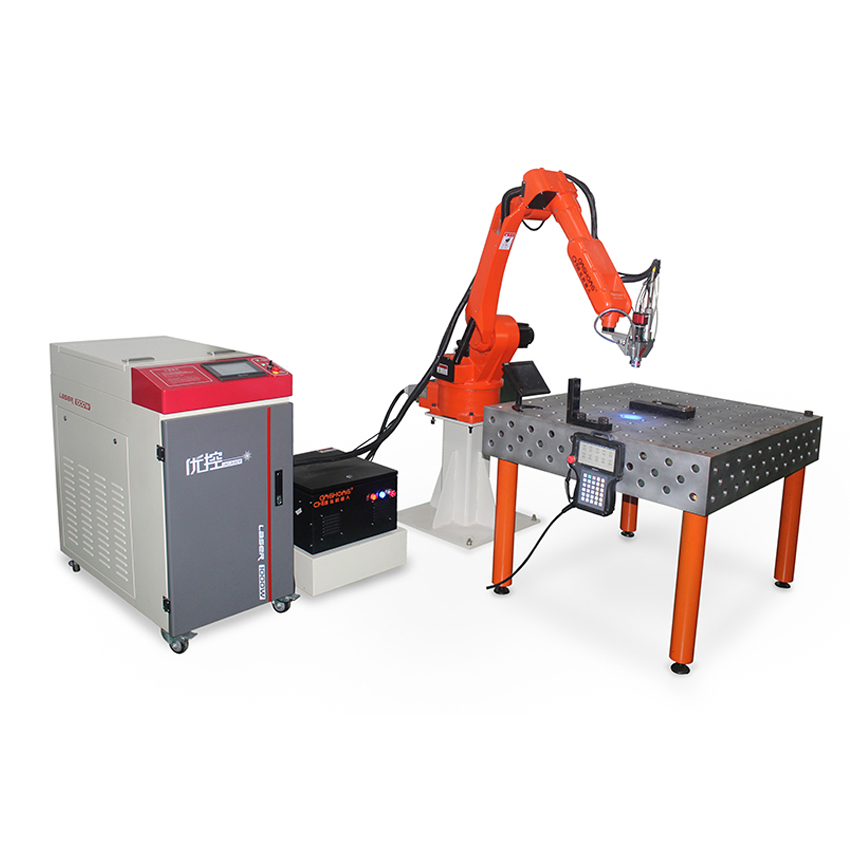

UK Manipulator Laser Welding Machine
UK Manipulator Laser Welding Machine UK Manipulator Laser Welding Machine

loading

UK Manipulator Laser Welding Machine

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Robotic arms generally refer to all electronically controlled machines that have flexible programming movements and can replace human work. The most common in industry is a multi-degree-of-freedom arm strung by multiple joints. The arm is commonly used for picking, assembling, and sorting. The advantages are Fast and light. With high degree of freedom, it can be widely used in spraying, welding, picking and placing, polishing and other applications, and the cost is relatively expensive.
SKU:
Availability:
Quantity:

Product Features:

1: It has a high aspect ratio, small weld width, small heat-affected zone, and fast welding speed.

2: The welding seam is smooth and beautiful, no need to handle or simple processing procedures after welding.

3: The weld seam is of high quality and has no porosity, which can reduce and optimize the base metal impurities, and the structure can be refined after welding.

4: The weld seam strength and toughness are at least equivalent to or even higher than the base metal.


Technical Parameter

Product ModelUK-HJLX-SC1000W
Wavelength1064nm
Maximum Laser Output Power1000W
Maximum Laser Pulse Energy100J/20ms
Maximum Welding Depth≤3mm
Pulse Width01-20ms
Pulse Frequency0-200Hz
Repeatability±0.02mm
Spot Size0.2mm-2.0mm
Aiming And Positioning MethodRed light indicator (CCD optional)
Power DemandThree phase 380V ± 15% 50Hz 25A
Host Power16KW
Control SystemPFCS laser power real-time feedback system
Cooling MethodInternal circulating water
Mechanical Arm Stroke1.5 meters 1.5 meters
