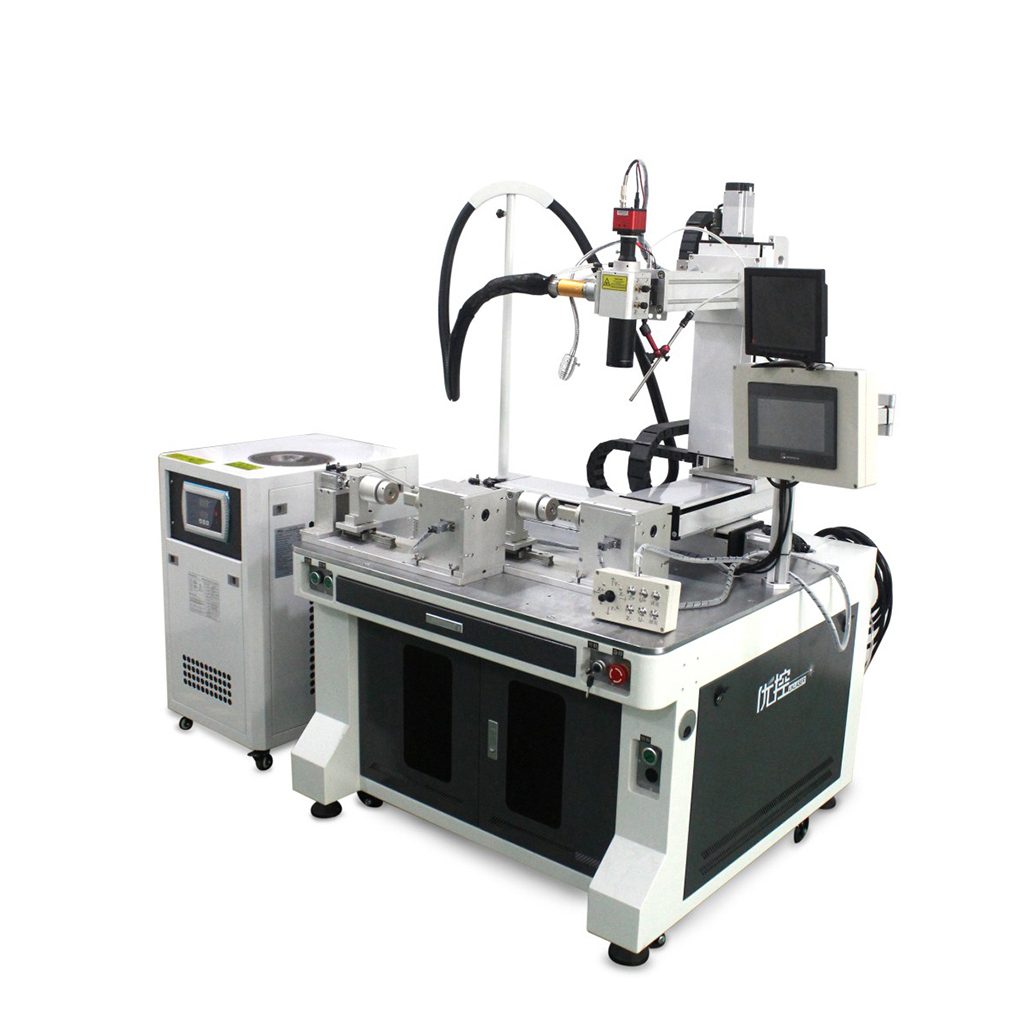

Product Features:
1: The workbench has integrated laser and built-inwater tank. Optimal space occupation
2: Touch screen + hand joystick operation mode, teaching programming, easy to use, fast programming
3: The gantry-type double Y workbench can realize double-station operation, which has higher working efficiency
4: The XYZ worktable can be used as an independent production unit. lt can also be produced online
5: It can be equipped with different work tools
Application:
It is widely used in aviation, machinery, electronics, communications, power, chemical, automobile manufacturing and other industries.
Widely used in water pipe joints, reducing joints, tees, valves, lithium batteries, battery packs, electrodes, stainless steel, titanium alloys, glasses buckles, outer frames, impellers, kettles, water cups, hip flasks, stainless steel bowls, sensors, diodes , Aluminum alloy, mobile phone batteries, door handles, mixers, shelves, etc., complex stamping parts, copper parts, aluminum parts, castings welding.
Welding of automobile parts (welding of hydraulic tappets, gasoline filters, automobile exhaust sensors, solenoid valves, and starting motor stators);
Sealing and welding of lithium ion battery (mobile phone battery, power battery);
Metallurgical industry (welding of silicon steel plate);
Application of military industry sensors and engine blade welding;
Precision spot welding and sealing welding of electronic components (relays);
Electrical industry (welding of silicon steel sheet, rotor of air-conditioning motor, leakage protector).
Technical Parameter
| Model | UK-HJLX-SC500W | UK-HJLX-SC1000W | UK-HJLX-SC1500W |
| Laser Power | 500w | 1000w | 1500w |
| Laser Wavelength | 1070±5 nm | 1070±5 nm | 1070±5 nm |
| Operation Mode | Continuous/Modulation | Continuous/Modulation | Continuous/Modulation |
| Output Welding Head Type | Handheld swinging head | Handheld swinging head | Handheld swinging head |
| Output Power Stability | ＜3% | ＜3% | ＜3% |
| Power Regulation Range | 10~100% | 10~100% | 10~100% |
| Weld Penetration | 0.5~2.0mm | 0.5~2.0mm | 0.5~2.0mm |
| Spot Width | 0.2-3mm | 0.2-3mm | 0.2-3mm |
| Cooling Method | Built in water cooling | Built in water cooling | Built in water cooling |
| Fiber Optic Cable Length | Standard configuration: 10 meters, MAX15 meters | Standard configuration: 10 meters, MAX15 meters | Standard configuration: 10 meters, MAX15 meters |
| Blowing Protection | Argon, nitrogen | Argon, nitrogen | Argon, nitrogen |
| Power Demand | AC220v/50Hz | AC220v/380v/50Hz | AC380v/50Hz |
| Power | 3.5 Kw | 4.5 Kw | 5.5 Kw |
| Cover An Area | 1*1.6m | 1*1.6m | 1*1.6m |
| Whole Machine Weight | 180 Kg | 200 Kg | 200 Kg |
| Operation Temperature | 0~40°C | 0~40°C | 0~40°C |
| Working Humidity | 10~75% | 10~75% | 10~75% |
| Environmental Requirements | No vibration, no interference source, maintain ventilation | No vibration, no interference source, maintain ventilation | No vibration, no interference source, maintain ventilation |
| Consumables | Purified water, argon gas | Purified water, argon gas | Purified water, argon ga |
