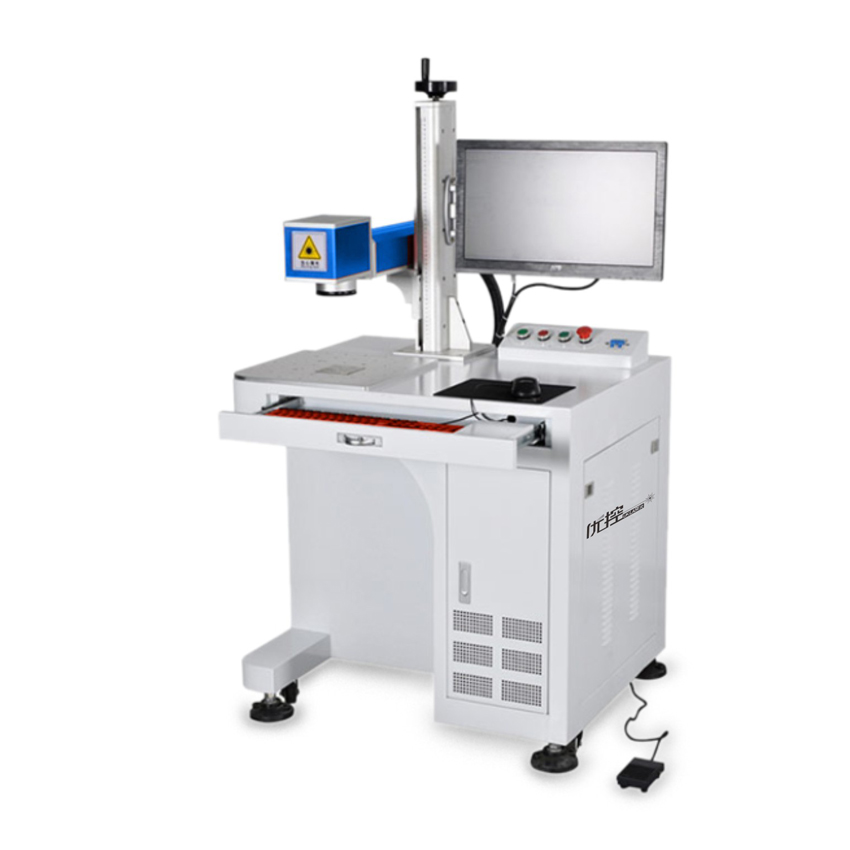

Product Features:
Design: The desktop is small in size, easy to carry,saves production space, and is more convenient toinstall and operate
Maintenance: air-cooled device, maintenance-freemore stable and reliable work
Consumables: high electro-optical conversion rate.no power coupling loss, no consumables, whichobviously reduces operating costs for customers
Life: Long life of optical fiber> 100,000 hours
Speed: fast marking speed, high efficiency, up to600 characters (single-line characters with acharacter height of 3mm) per second, which ismore than 3-8 times that of traditional lasers
Application:
It is widely used in industries such as auto parts, electronic communications, hardware jewelry, chips, precision hardware, glasses and watches, instrumentation, sanitary ware, medicine and food.
Technical Parameter
| Model | UK-DBZ-FC20 | UK-DBZ-FC30 | UK-DBZ-FC50 |
| Maximum laser power | 20W | 30W | 50W |
| Laser wavelength | 1064nm | 1064nm | 1064nm |
| Beam quality | <1.5 | <1.8 | <2.0 |
| Laser repetition frequency | 20KHz-80KHz | 20KHz-80KHz | 20KHz-80KHz |
| Marking range | 100mm*100mm（Optional） | 100mm*100mm（Optional） | 100mm*100mm（Optional） |
| Writing depth | 0.4mm | 0.6mm | 1.0mm |
| Engraving line speed | ≤15000mm/s | ≤15000mm/s | ≤15000mm/s |
| Minimum line width | 0.05mm | 0.05mm | 0.05mm |
| Minimum character | 0.15mm | 0.15mm | 0.15mm |
| Repeat accuracy | ±0.002mm | ±0.002mm | ±0.002mm |
| Power consumption of the whole machine | 500W | 600W | 1000W |
| Power requirement | 220V/50Hz/3A | 220V/50Hz/3A | 220V/50Hz/3A |
