Machine Features:
1. Autonomous Navigation & Intelligent Path Planning

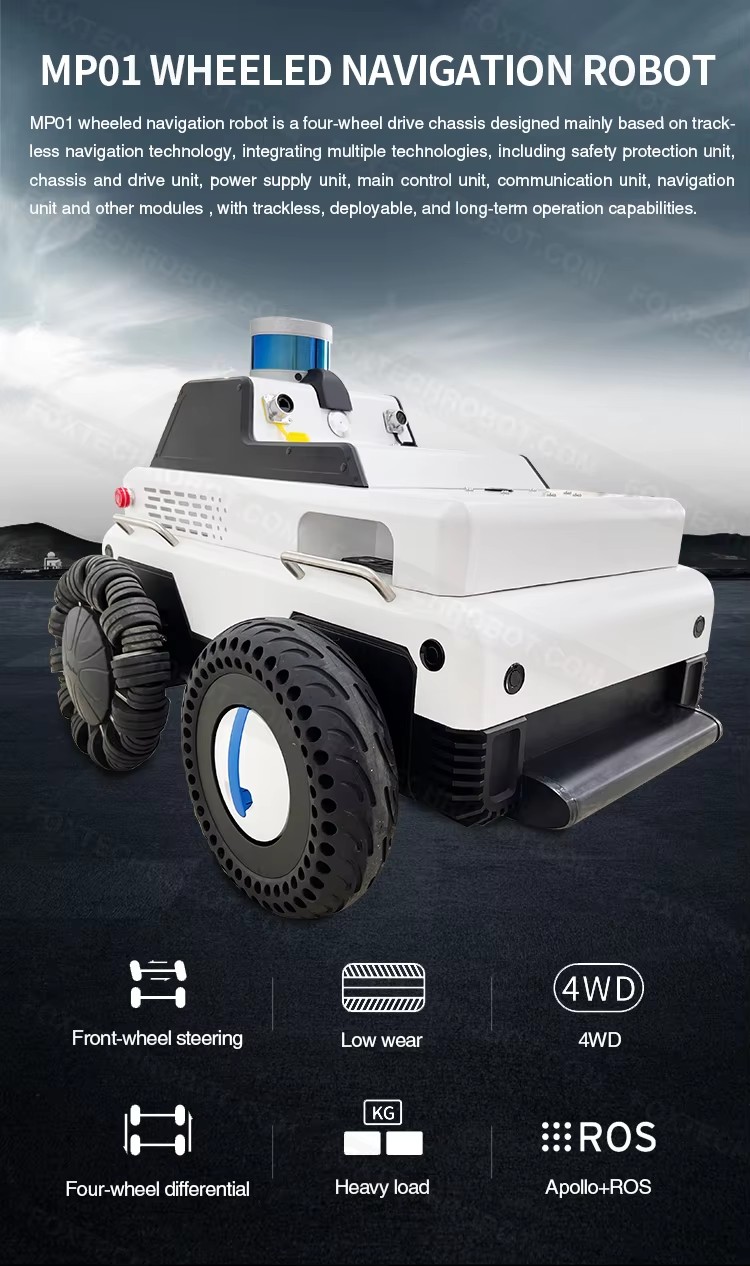

The MP01 robot uses VSLAM technology for real-time navigation, mapping, and obstacle avoidance. It can autonomously plan patrol routes, dynamically adjust its path, and perform efficient unmanned patrols with precise positioning accuracy.
2. 4WD Modular Design & Strong Adaptability
Built on a high-strength 4-wheel drive chassis, the robot features excellent traction, stability, and climbing performance, suitable for uneven roads, slopes, and outdoor environments. Its modular structure allows quick installation of additional equipment such as PTZ cameras, sensors, and lighting systems.
3. Advanced Control & Dual Operation Modes
Supports both remote and autonomous control modes with vehicle-grade EPS (Electronic Power Steering) and EHB (Electronic Hydraulic Brake) systems. Operators can switch control modes seamlessly for flexible operation and emergency management.
4. Smart Power Management System
The robot features an intelligent battery management system (BMS) with real-time monitoring of voltage, temperature, and power levels. It supports manual and automatic charging, fault protection, and power state feedback to ensure safe, long-duration performance.
5. Open Interface for Secondary Development
The system supports secondary development for motion control, enabling integration with AI algorithms, sensors, and customized applications such as industrial inspection, patrol recording, and smart facility management.
Products Specification:
| Item | Details |
| Product Type | 4WD Outdoor Autonomous Patrol & Inspection Robot |
| Usage | Outdoor road patrol, camera inspection, and security monitoring |
| Drive System | Four-wheel independent drive (4WD) |
| Motor Type | Asynchronous induction motor |
| Navigation Mode | VSLAM (Visual Simultaneous Localization and Mapping) |
| Control Mode | Remote control + autonomous navigation |
| Power Source | Rechargeable battery |
| Maximum Runtime | 10 hours continuous operation |
| Work Time | 24-hour patrol capability |
| Charging Time | 10 hours |
| Protection Level | IP16 (splash-proof, dust-resistant) |
| Dimensions (L × W × H) | 1000 × 1000 × 1000 mm (customizable) |
| Net Weight | 100 kg |
| Speed | Up to 10 km/h (adjustable) |
| Operating Temperature | –10 °C ~ +50 °C |
| Special Features | Trackless navigation, automatic path planning, obstacle avoidance, fault protection, and remote monitoring |
| Warranty | 3 years |

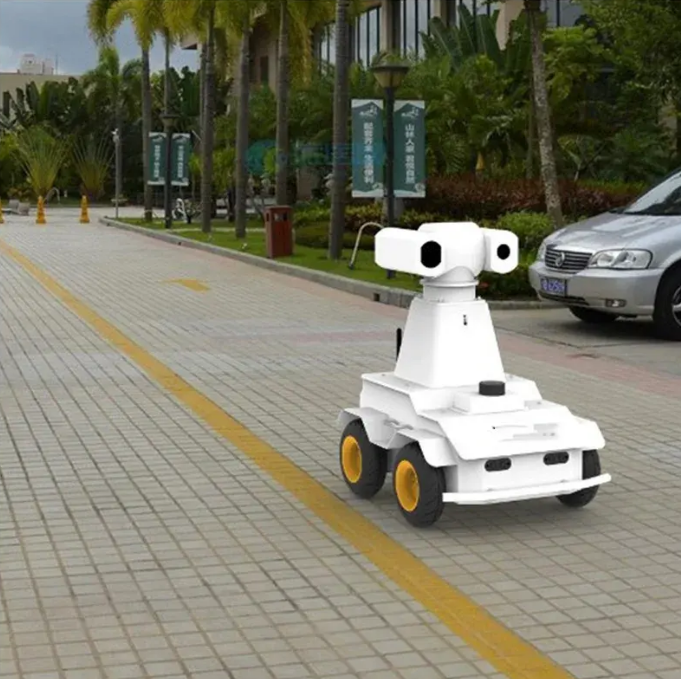

Products Pictures:
