Machine Features:
1: Developer-Ready ROS Platform
Pre-integrated with ROS and open SDK support for quick secondary development, AI research, and robotics competitions.
2: Precision Four-Wheel Independent Drive
Each wheel is powered by a 200 W brushless servo motor with photoelectric encoders for accurate rotation and smooth motion control.
3: Advanced CAN/RS232 Communication
Built-in communication interfaces allow seamless integration with sensors, controllers, and third-party systems.
4: High Load & Terrain Adaptability

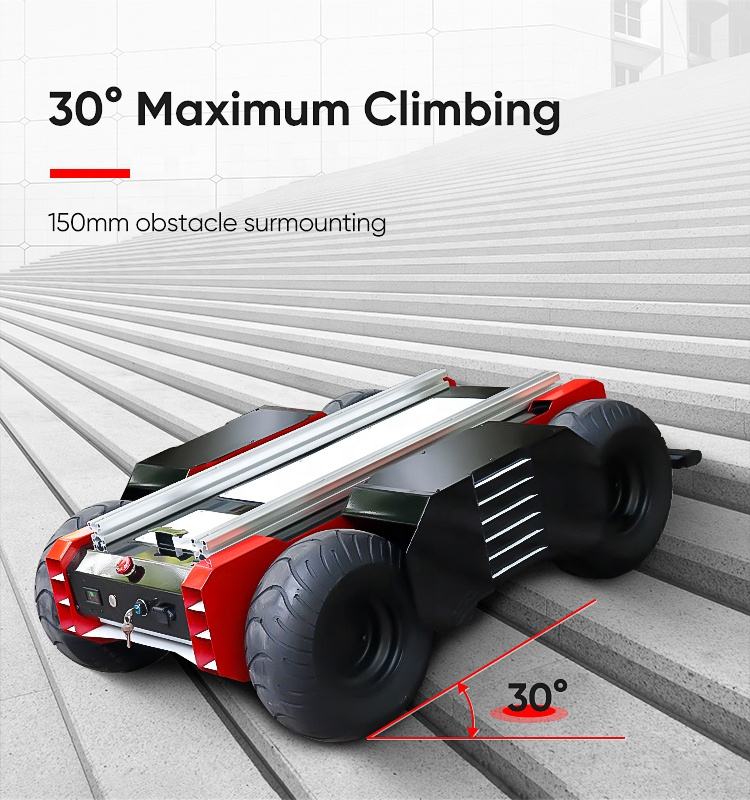

Carries up to 120 kg with 130 mm obstacle crossing, 30° climbing ability, and IP54 protection for both indoor and outdoor use.
5: Stable Power & Long Runtime
Equipped with a 24 V 30 Ah lithium battery for up to 3 hours of continuous operation and 10 km endurance per charge.
Products Specification:
| Item | Details |
| Product Type | Developer-Grade AGV / UGV Chassis |
| Application | Robotics R&D, competition, inspection, industrial and commercial prototyping |
| Control Protocol | CAN / RS232 standard protocol |
| Navigation System | ROS / Open SDK / Autonomous mapping |
| Drive System | Four-wheel independent drive (200 W × 4 motors) |
| Dimensions (L × W × H) | 1096 × 799 × 346 mm |
| Weight | 80 kg |
| Payload Capacity | 120 kg |
| Speed | 3.6 km/h |
| Endurance Distance (Loaded) | 10 km |
| Working Time | 3 h |
| Battery Type | 24 V 30 Ah lithium battery |
| Rated Voltage | 24 V |
| Ground Clearance | 120 mm |
| Obstacle Crossing | 130 mm |
| Climbing Ability | 30 ° |
| Operating Temperature | −20 °C – 60 °C |
| Waterproof Level | IP54 |
| Motor Type | Brushless servo motor |
| Communication Interface | CAN / RS232 / Serial port |
| Control Core | ARM processor-based motion control board |
| Power Source | Battery powered |
| Warranty | 1 year |
Products Pictures:
