Machine Features:
1: Compact Design & High Flexibility
Lightweight structure (35 kg) with a small 1.29 m turning radius allows the chassis to move flexibly in tight indoor spaces, ideal for laboratory testing, education, and AGV prototype development.
2: Precision Motion & Smooth Control
Equipped with a 500-line magnetoresistive AB encoder and 100W DC gear motor, ensuring stable torque output, accurate path tracking, and smooth motion control even under variable loads.
3: Reliable Suspension & Extended Runtime
Features a four-wheel independent suspension system that enhances ground adaptability, combined with efficient power management for 4.5-hour runtime under light load and 3 hours at maximum capacity.
Products Specification:
| Item | Details |
| Product Type | Two-Wheel Differential AGV Chassis |
| Rated Load Capacity | 22 kg |
| Self Weight | 35.16 kg |
| Dimensions (L × W × H) | 477.5 × 482 × 433 mm |
| Motor Type | MD60 100W DC gear motor |
| Motor Reduction Ratio | 1:18 |
| Drive Type | Two-wheel differential drive |
| Suspension System | Four-wheel independent suspension shock absorption |
| Obstacle Clearance Height | 75 mm |
| Minimum Turning Radius | 1.29 m |
| Encoder Type | 500-line giant magnetoresistive AB high-precision encoder |
| Steering Engine | DS5160 60 kg torque digital servo |
| Speed | 0.82 m/s |
| Battery Life | 4.5 h (no load) / 3 h (max load) |
| Power Source | DC battery powered |
| Navigation Mode | Autonomous / differential drive |
| Warranty | 3–6 months |

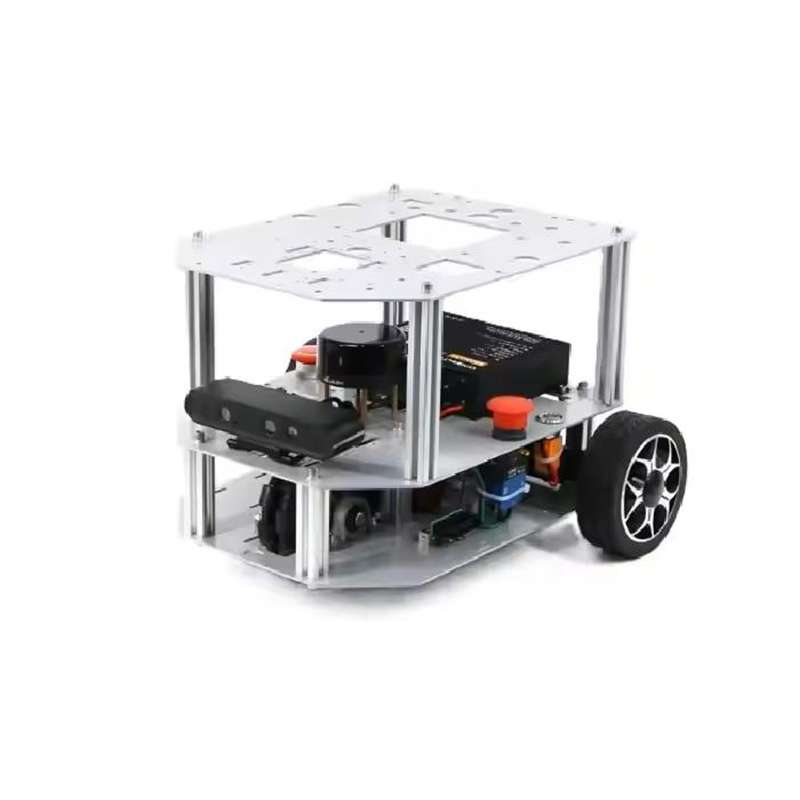

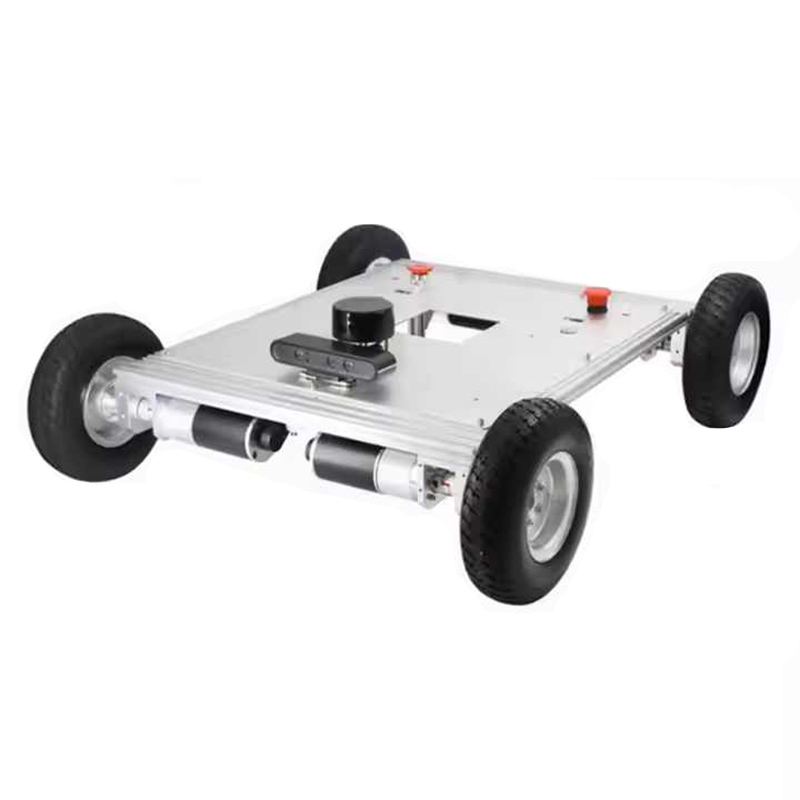

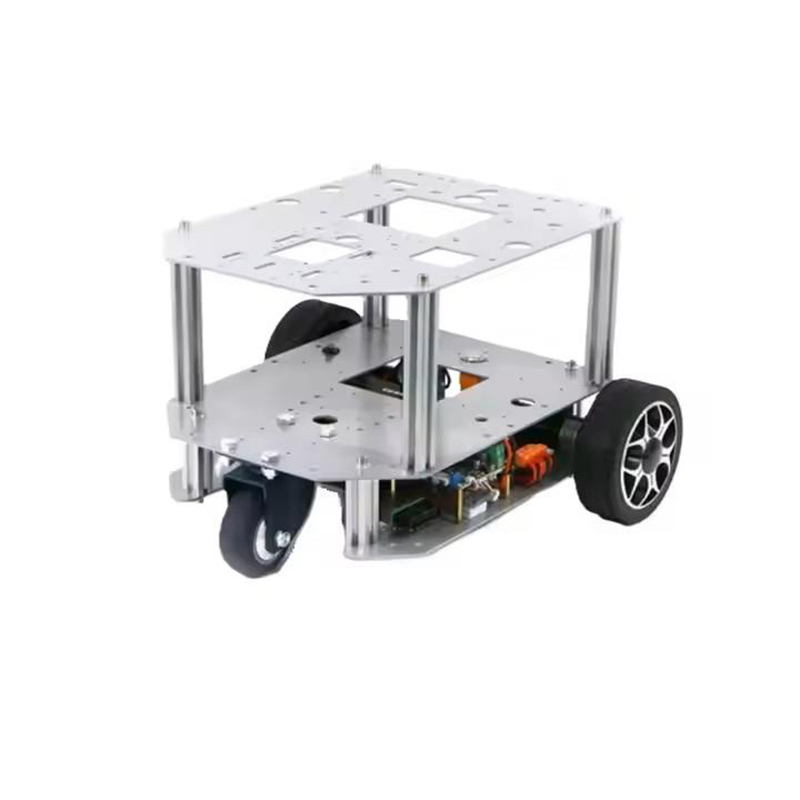

Products Pictures:
