Machine Features:
1. Non-Contact & Substrate-Safe Cleaning
Removes rust, paint and surface contaminants without damaging the base material.
2. Adjustable Pulse Laser Technology
10–500 ns pulse width and 1–4000 kHz frequency allow precise, controlled cleaning.
3. Ultra-Fast 7000 mm/s Scanning Speed
Delivers high efficiency for large-area industrial cleaning tasks.
4. Ultra-Lightweight Cleaning Head (<0.9 kg)
Supports long-time handheld operation without fatigue.
5. Red-Light Assisted Focusing
Allows accurate targeting across different focal lenses.
6. Air-Cooled Design, No Water Chiller Needed
Lower maintenance, more portable, suitable for on-site jobs.
7. Handheld or Automated Integration
Compatible with robotic arms and automatic cleaning systems.
Products Specification:
| Item | Specification |
| Model | CR Series |
| Power Supply | Standard AC 220V ±10%, single-phase, 50/60Hz |
| Total Power Consumption | ≤120W |
| Working Temperature | –10℃ ~ 40℃ |
| Working Humidity | ≤80% |
| Laser Power | Max 200W |
| Center Wavelength | 1070 ± 10 nm |
| Laser Working Mode | Pulse |
| Pulse Width | 10–500 ns |
| Light Transmittance | ≥98% |
| Laser Power Adjustment | 10–100% |
| Pulse Frequency Adjustment | 1kHz–4000kHz, continuous gradient adjustable |
| Fiber Cable Length | 5 m |
| Cooling Mode | Air Cooling |
| Scan Speed | 10–7000 mm/s |
| Scanning Range | 10–110 mm |
| Scanning Frequency | 10Hz–300Hz |
| Field Mirror Focal Length | 160 mm (Optional 210 / 254 / 330 / 420 mm) |
| Max Scan Line Speed | ~30 m/s |
| Machine Size (L×W×H) | 900 × 380 × 600 mm |
| Machine Weight | ~43.6 kg |
| Cleaning Head Weight | <0.9 kg |
| Work Mode | Handheld / Automated |

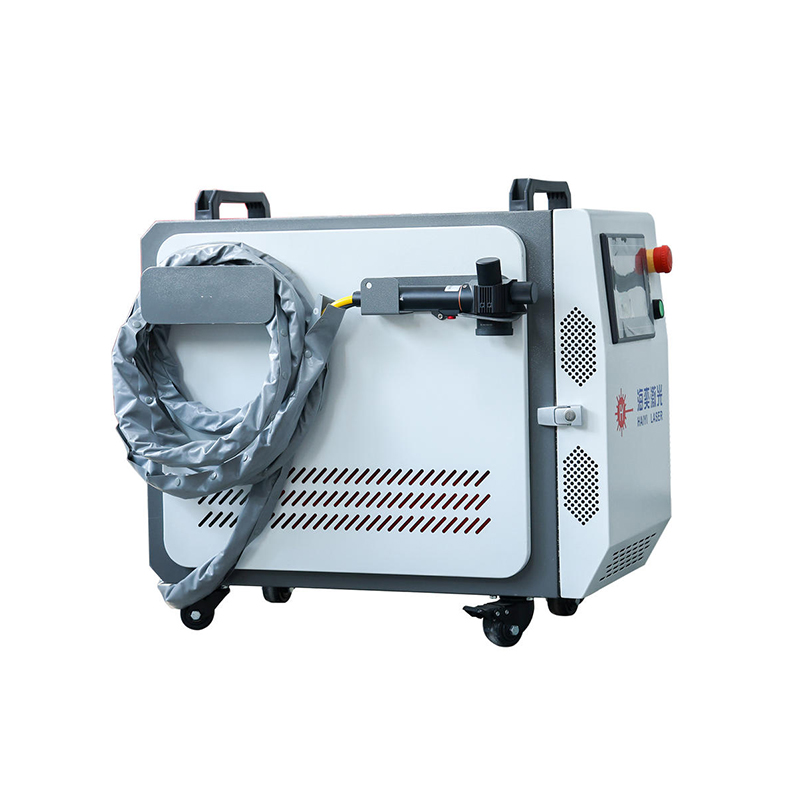

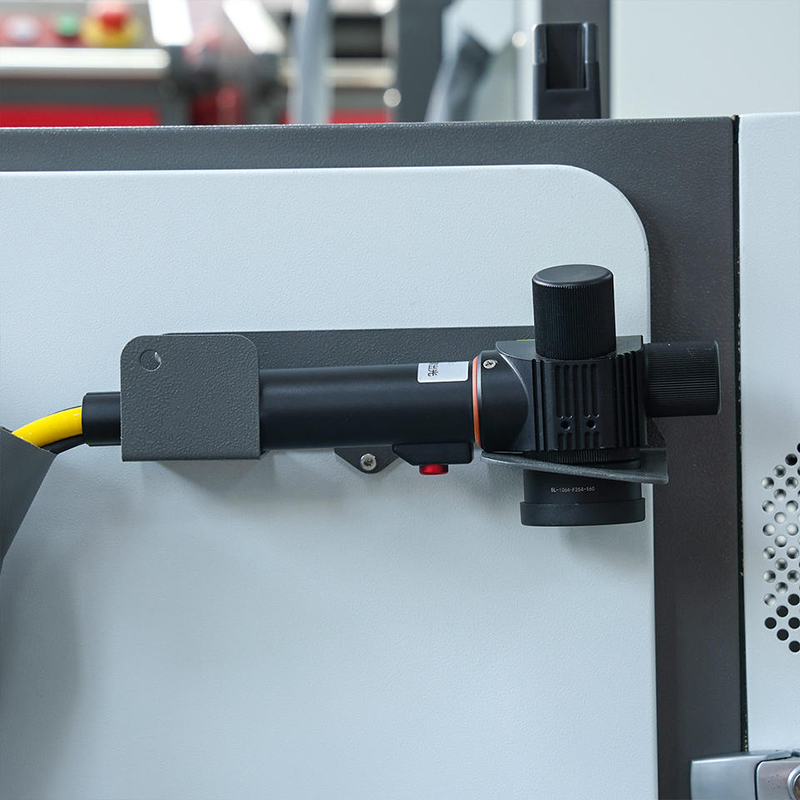

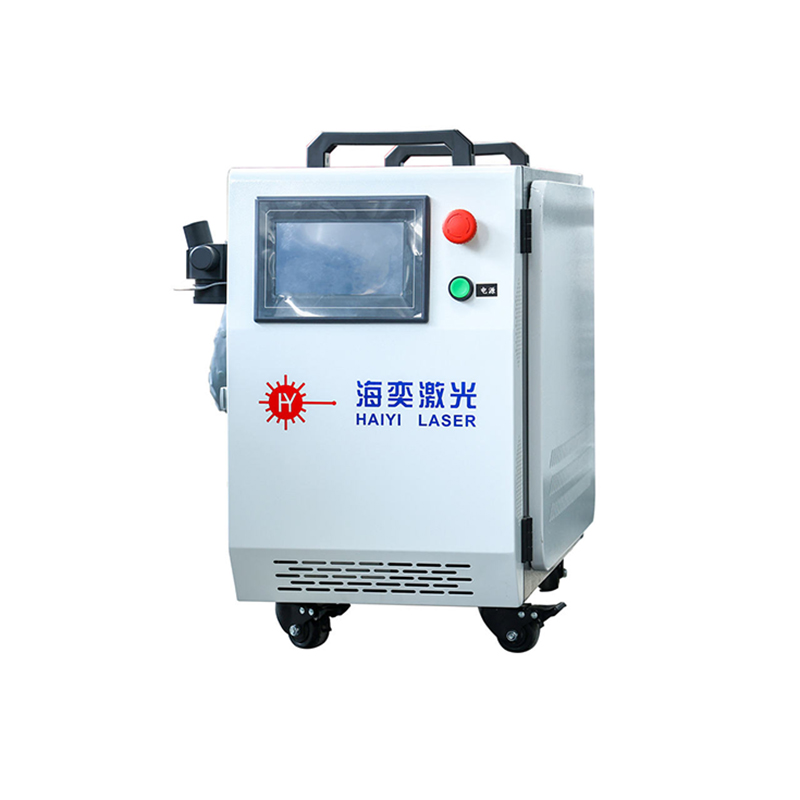

Products Pictures:
