Machine Features:
1. Non-Contact Cleaning with No Substrate Damage
Removes rust, oil, paint and oxide layers without scratching or deforming the metal base.
2. Adjustable Pulse Laser Technology
10–500 ns pulse width + 1–4000 kHz frequency for high-precision and low-heat cleaning.
3. Ultra-Fast 7000 mm/s Scan Speed
Ideal for high-efficiency industrial maintenance and large-area cleaning.
4. Air-Cooled, No Water Chiller Required
Lower maintenance cost, easier transportation and onsite operation.
5. Lightweight Cleaning Head (<0.9 kg)
Comfortable for long-term handheld use; also supports automated robotic cleaning.
6. Multiple Focal Length Options
160mm / 210mm / 254mm / 330mm / 420mm to fit different materials and cleaning needs.
7. High Durability and Stability
Laser system is nearly maintenance-free with long service life.
Products Specification:
| Item | Specification |
| Model | CR Series |
| Power Supply | Standard AC 220V ±10%, single-phase, 50/60Hz |
| Total Consumption | ≤120W |
| Working Temperature | –10℃ ~ 40℃ |
| Working Humidity | ≤80% |
| Laser Power | Max 200W |
| Center Wavelength | 1070 ± 10 nm |
| Laser Working Mode | Pulse |
| Pulse Width | 10–500 ns |
| Light Transmittance | ≥98% |
| Laser Power Adjustment | 10–100% |
| Pulse Frequency Adjustment | 1kHz–4000kHz (continuous gradient adjustable) |
| Fiber Cable Length | 5 m |
| Cooling Mode | Air Cooling |
| Scan Speed | 10–7000 mm/s |
| Scanning Range | 10–110 mm |
| Scanning Frequency | 10Hz–300Hz |
| Field Lens Focal Length | 160mm (optional 210 / 254 / 330 / 420mm) |
| Maximum Scan Line Speed | ~30 m/s |
| Machine Size (L×W×H) | 900 × 380 × 600 mm |
| Machine Weight | ~43.6 kg |
| Cleaning Head Weight | <0.9 kg |
| Work Mode | Handheld / Automated |

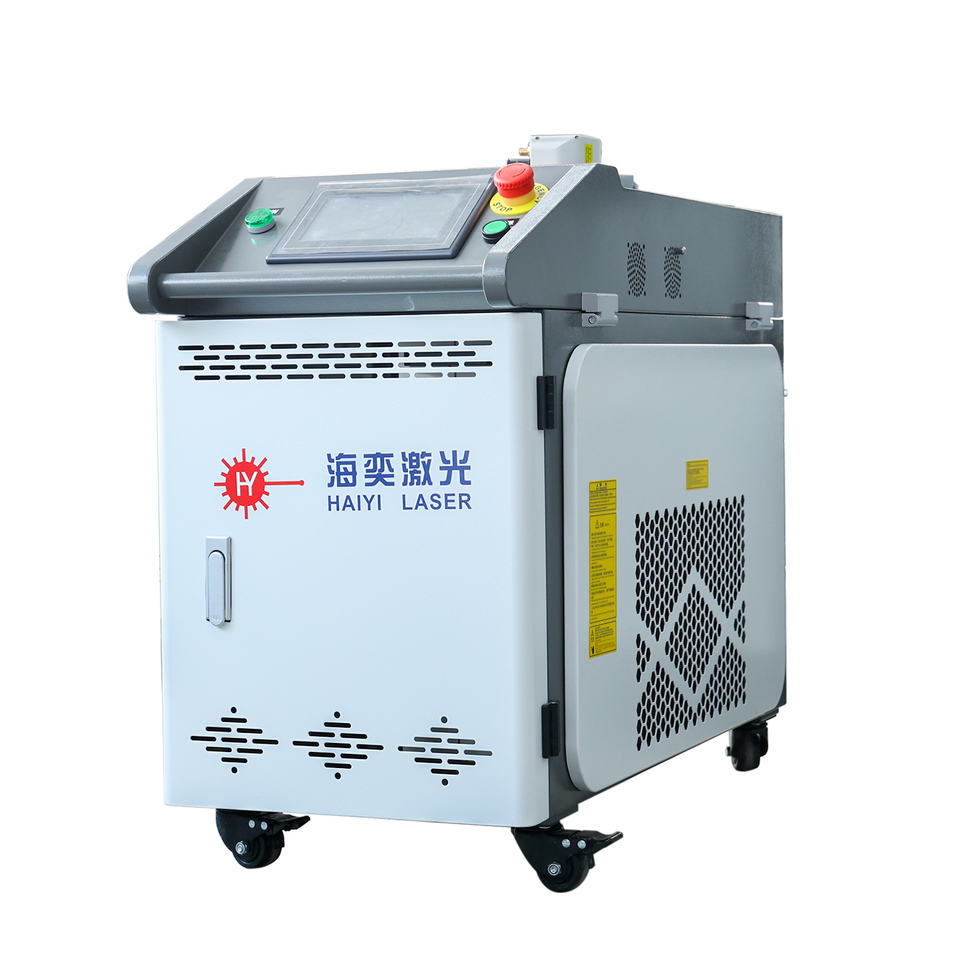

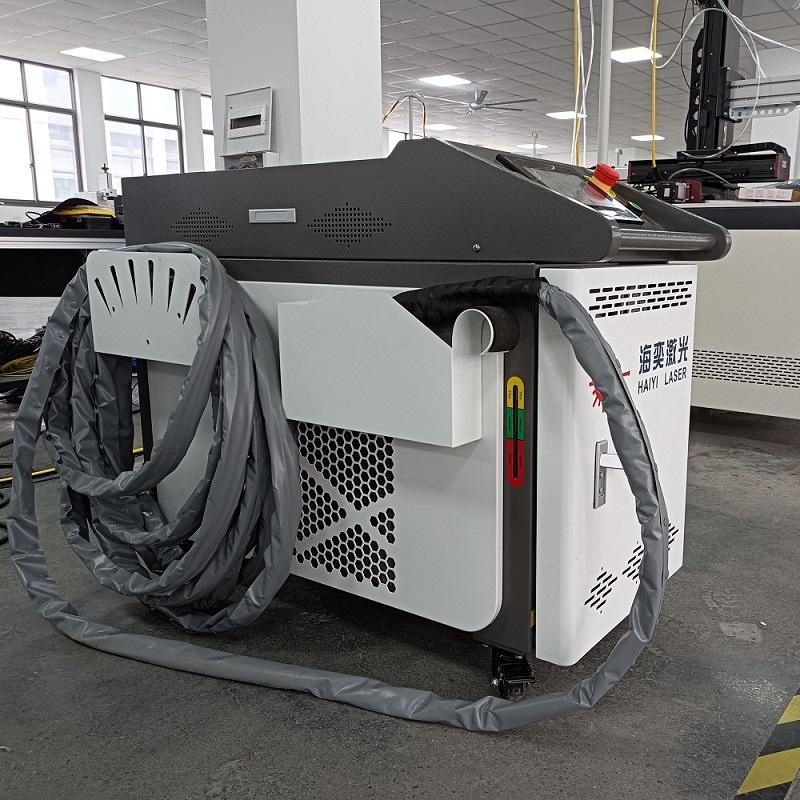

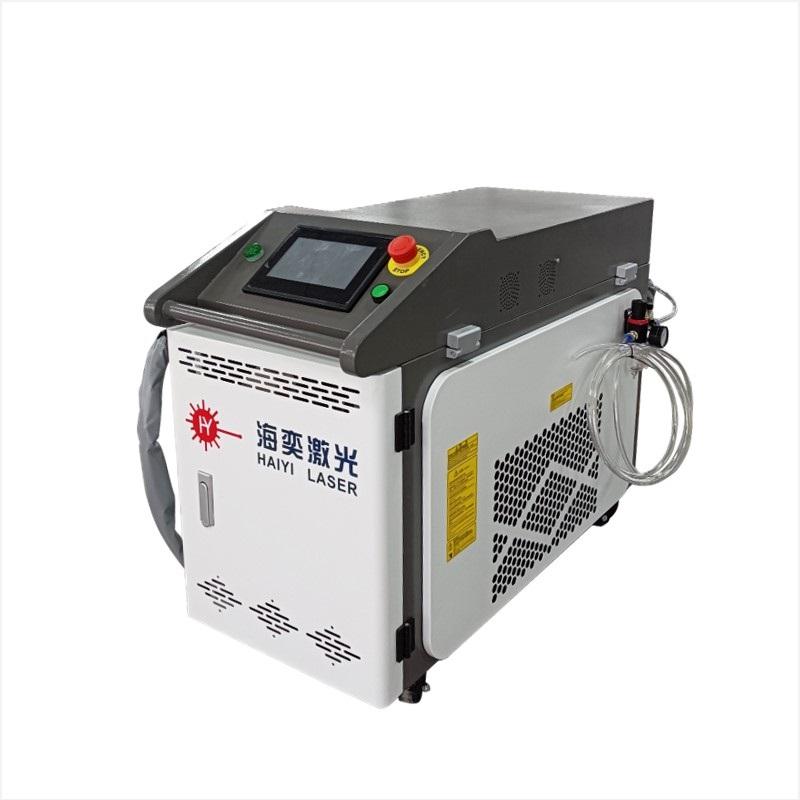

Products Pictures:
