Machine Features:
1. Non-Contact, No-Damage Cleaning
Removes rust, paint, grease and coatings without harming the base material — safe for delicate and complex surfaces.
2. Pulsed Fiber Laser for High Precision
Adjustable 1–500 ns pulse width enables selective cleaning with extremely low thermal impact.
3. Ultra-Fast 6000 mm/s Scan Speed
Efficiently handles industrial rust removal, paint stripping and oil cleaning tasks.
4. Lightweight, Air-Cooled Design
26 kg compact machine with air cooling — no water chiller required, easy to move and maintain.
5. Multiple Beam Patterns (8 Modes)
Supports line, circle, rectangle and other shapes for different cleaning scenarios.
6. Adjustable 0–100% Laser Power
Matches different material needs and contamination levels.
7. Wide Industrial Applications
Used in aerospace, automotive, shipbuilding, steel manufacturing, railway transit, machinery repair and more.
Products Specification:
| Item | Specification |
| Condition | New |
| Laser Power | 100W (Pulse Laser) |
| Laser Type | Pulsed Fiber Laser |
| Applicable Materials | Carbon Steel, Aluminum, Stone, Metal, Rubber |
| Scan Speed | 6000 mm/s |
| Fiber Cable Length | 5 m |
| Cooling Mode | Air Cooling |
| Warranty (Laser Source) | 2 Years |
| Warranty (Machine) | 1 Year |
| Core Components | Laser Source |
| Machine Weight | 26 kg |
| Machine Size | 620 × 469 × 292 mm |
| Power Consumption | 450W |
| Power Supply | AC 220V ±10%, 50/60Hz |
| Laser Power Adjustment Range | 0–100% |
| Pulse Width | 1–500 ns |
| Beam Patterns / Graphics | Line, Rectangle, Circle, and 8 selectable modes |
| Focal Length (Field Lens Options) | F160 = 110 mm / F254 = 175 mm / F330 = 230 mm |
| Wavelength | Pulsed Fiber Laser Wavelength (≈1064 nm) |
| After-Sales Support | Online Support, Video Technical Support |

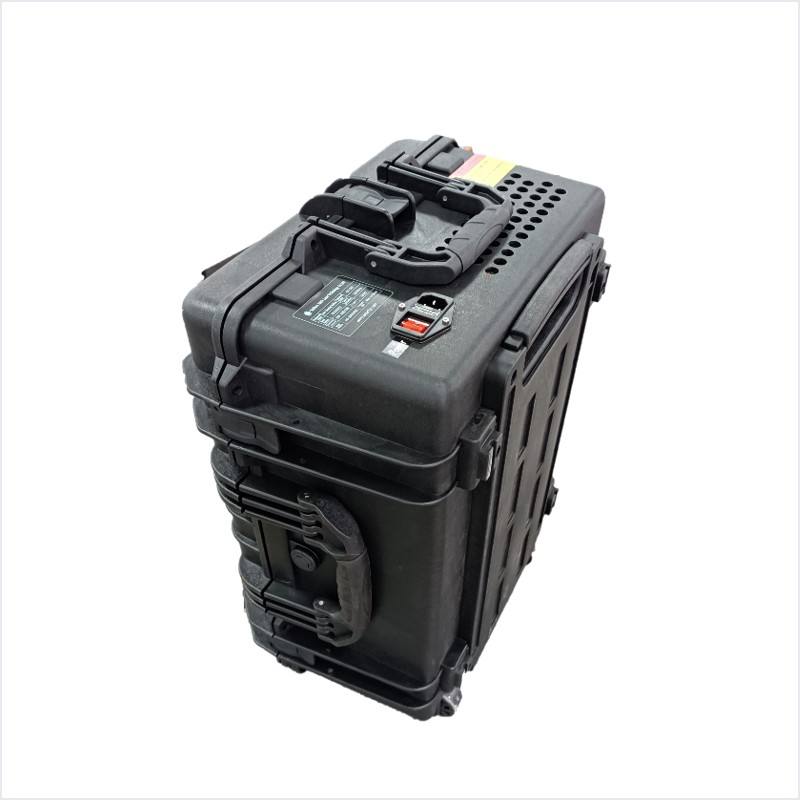

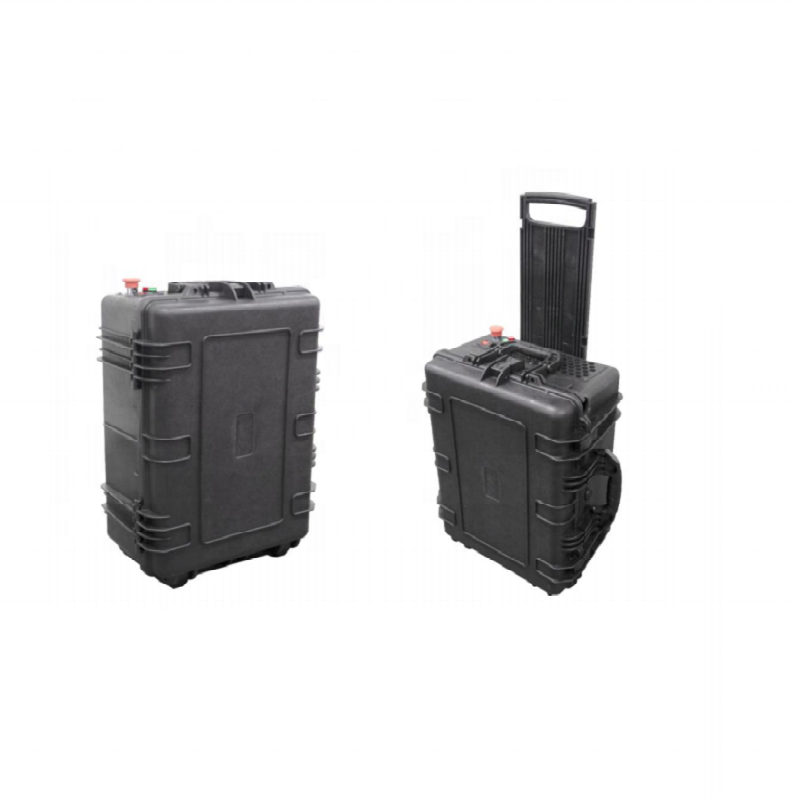

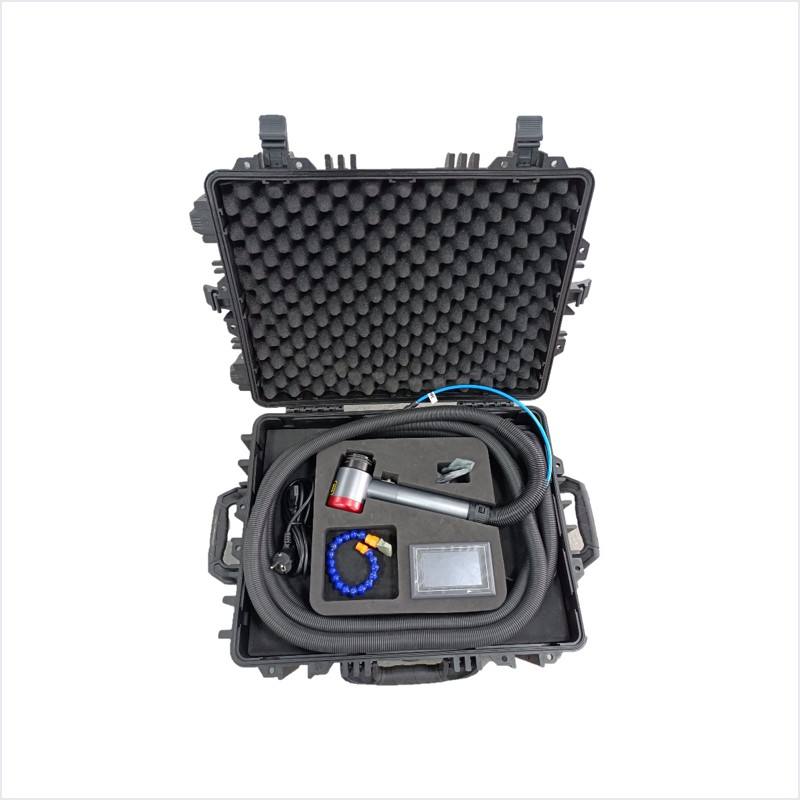

Products Pictures:
