Machine Features:
1. High-Efficiency Industrial Laser Cleaning
Removes rust, paint, oil, coatings, oxide layers, and surface contaminants quickly with 0.4–0.8 m²/min cleaning performance.
2. Adjustable Scan Width & Power
Supports 0–300mm adjustable scan width and 10–100% power control for multiple cleaning applications.
3. 1500W–3000W High Laser Power Options
Available in multiple configurations to meet different cleaning intensities and material requirements.
4. Non-Contact & Chemical-Free Cleaning
No consumables, no chemicals, no damage to base material; environmentally friendly and low maintenance.
5. Stable Water Cooling System
Ensures long-term continuous operation and optimized laser performance.
6. Lightweight 0.7 kg Cleaning Head
Handheld and ergonomic design enables flexible operation in tight or irregular spaces.
7. Long 10m Fiber Cable
Allows operators to reach large working areas without moving the main machine.
Products Specification:
| Item | Specification |
| Model | CH Series |
| Power Supply | Standard AC 220V / 380V ±10%, 50 & 60Hz |
| Total Consumption | ≤3KW – 9KW |
| Working Ambient Temperature | 10℃ – 35℃ |
| Working Environment | ＜70% humidity, no condensation, dry, less dust, low smoke |
| Max Laser Power | 1500W / 2000W / 3000W |
| Laser Source | Raycus / BWT / Reci |
| Laser Working Mode | Continuous / Modulation |
| Laser Wavelength | 1070 ± 10 nm |
| Power Adjustment | 10–100% |
| Laser Frequency | 5–100KHz |
| Power Instability | ＜3% |
| Optical Fiber Length | 10m |
| Cooling Mode | Water Cooling |
| Scan Width | 0–300mm |
| Scan Speed | 6000mm/s |
| Cleaning Efficiency | 0.4–0.8 m²/min |
| Spot Size | Adjustable |
| Machine Size (LWH) | 115 × 65 × 105 cm |
| Cleaning Head Weight | 0.7 kg |
| Work Mode | Handheld |

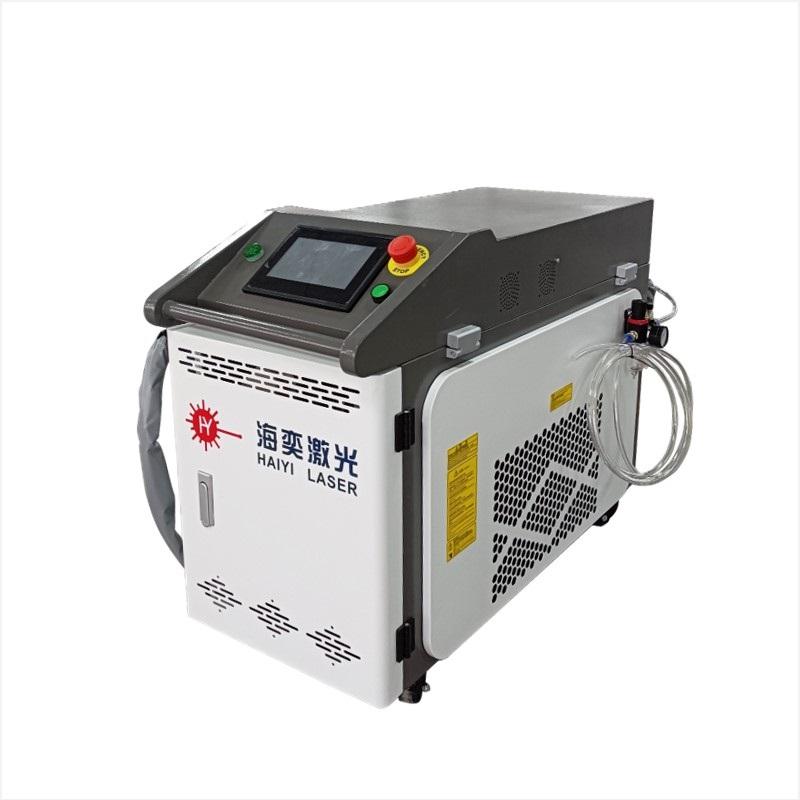

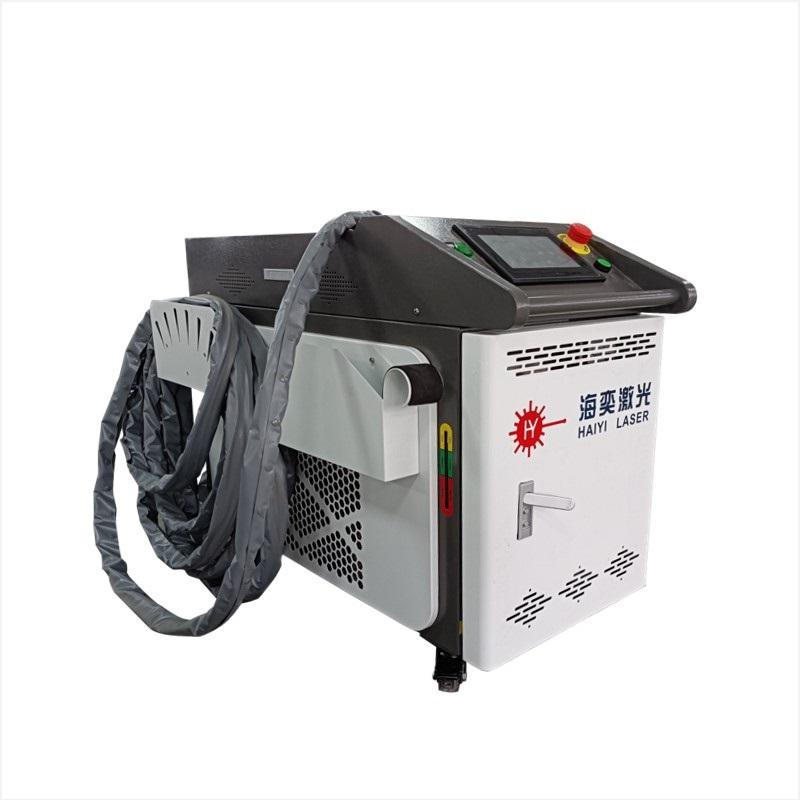

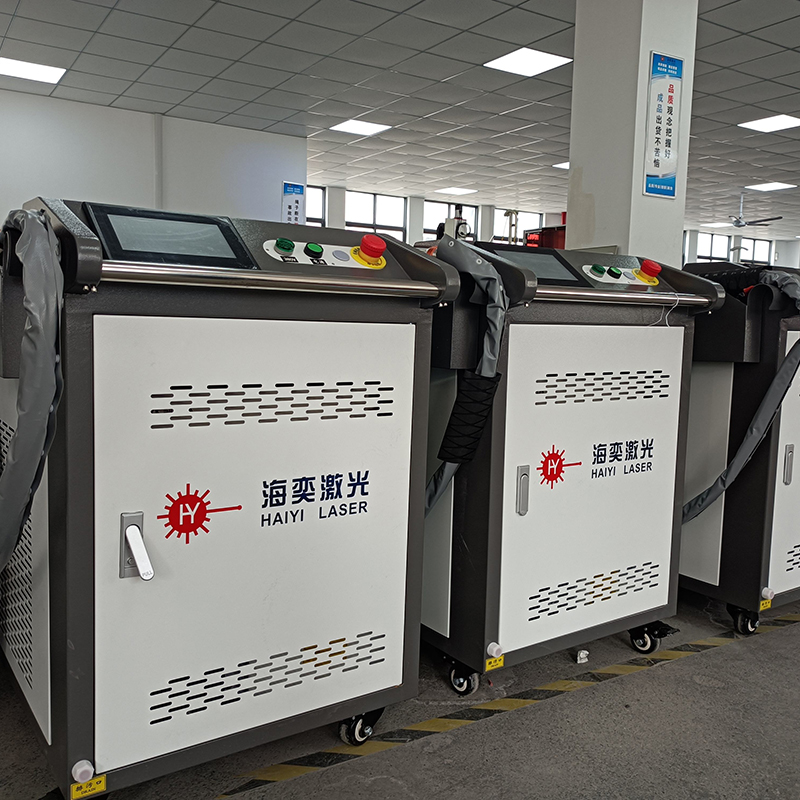

Products Pictures:
