Machine Features:
• High-Power 3000W Industrial Laser
Delivers strong cleaning capability for heavy rust, paint, welding oxide, carbon deposits, and industrial surface contaminants with exceptional efficiency.

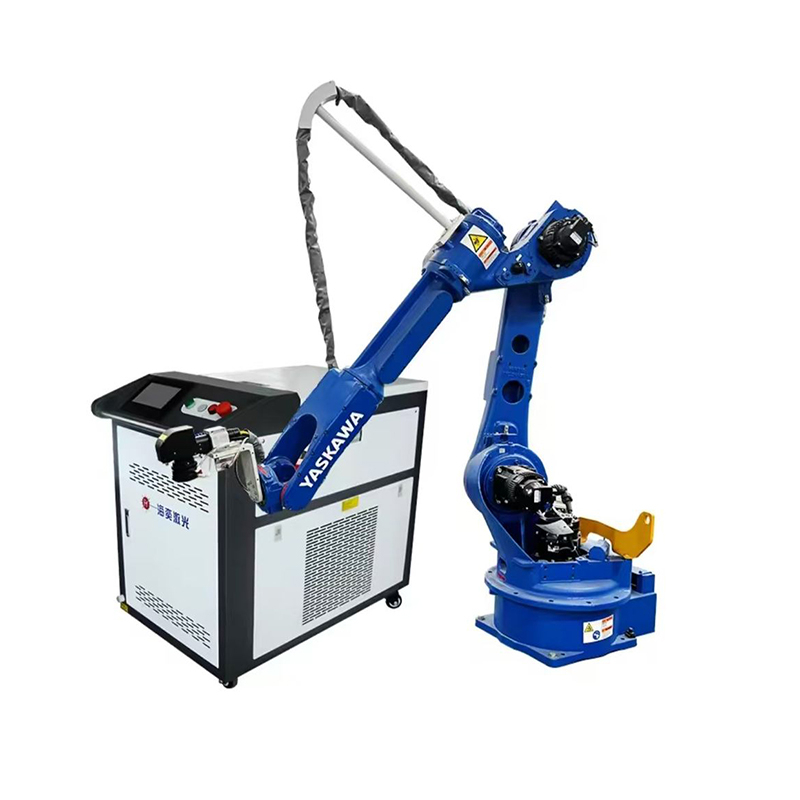

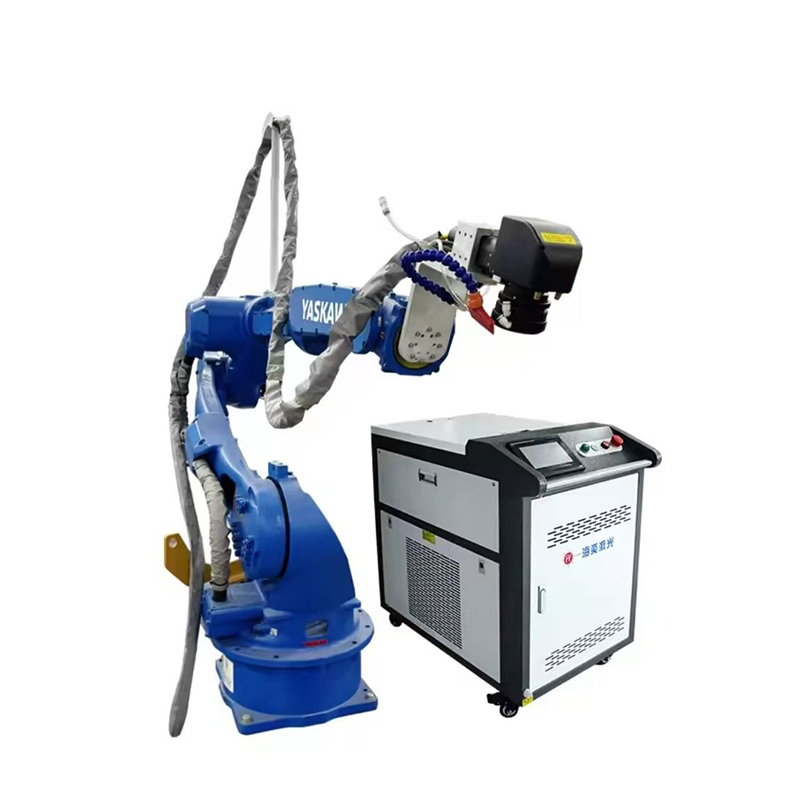

• Robotic Arm for Automated Precision Cleaning
Equipped with a programmable robotic arm that enables repeatable, precise, and consistent cleaning on curved surfaces, recessed areas, and complex metal parts.
• Non-Contact & Damage-Free Surface Treatment
Laser cleaning removes contaminants without abrasive blasting, chemicals, solvents, or surface damage—ideal for high-value metal components.
• Supports Both Handheld & Automated Modes
Flexible design allows switching between manual handheld cleaning and full robotic automation for different operational scenarios.
• High Cleaning Speed & Adjustable Laser Parameters
Up to 6000 mm/s scanning speed with customizable scanning width, pulse frequency, and power adjustment to match various industrial cleaning tasks.
• Eco-Friendly, Chemical-Free Cleaning
Requires no consumables, no chemical reagents, and produces no secondary waste—reducing environmental impact and maintenance costs.
• Stable Operation with Water or Air Cooling
Laser source supports water-cooling or air-cooling configurations, ensuring continuous stable performance in demanding environments.
• Widely Applicable Across Multiple Industries
Ideal for aerospace welding prep, automotive part restoration, ship anti-corrosion cleaning, rail transit maintenance, and steel surface derusting.
Products Specification:
| Item | HY-CH01 (CW Laser) | HY-CR01 (Pulse Laser 100W) | HY-CR01 (Pulse Laser 200/500W) |
| Laser Type | CW Laser Source | Pulse Laser Source | Pulse Laser Source |
| Max Laser Power | 1000W / 1500W / 2000W | 100W | 200W / 500W |
| Scanning Speed | 6000 mm/s | 6000 mm/s | 6000 mm/s |
| Max Scanning Width | 0–150 mm | 0–110 mm | 0–175 mm |
| Clean Area Efficiency | 0.4–0.8 ㎡/min | 0.2–0.5 ㎡/min | 0.2–0.5 ㎡/min |
| Cooling System | Water Chiller | Air Cooling | Water Chiller |
| Power Supply | 220V / 50–60Hz | 220V / 50Hz | 220V / 50Hz |
| Machine Size (L×W×H) | 90×40×70 cm | 62×47×30 cm | 90×87×100 cm |
| Machine Weight | ≈120 kg (net) | ≈28 kg (net) | ≈270 kg |
Products Pictures:
