Machine Features:
1. Non-Contact & No Damage
Cleans surfaces without scratching or deforming the metal substrate.
2. CW / Pulse Laser Options
Supports deep rust removal (CW) and precision cleaning (Pulse).
3. High Cleaning Efficiency
Up to 0.8 m²/min with a maximum 6000 mm/s scanning speed.
4. Lightweight Handheld Cleaning Head
Allows long-duration handheld use with reduced operator fatigue.
5. Water Chiller Cooling for High Power Models
Ensures stable operation for 1000W–3000W continuous cleaning.
6. Supports Automated Integration
Compatible with robotic arms for factory-level automated cleaning.
7. Eco-Friendly Process
No chemicals, no consumables, and no secondary pollution.
Products Specification:
| CW Laser Cleaning Machine Parameters (HY-CH01): | |
| Item | Specification |
| Laser Type | CW Laser Source |
| Max Laser Power | 1000W / 1500W / 2000W / 3000W |
| Scanning Speed | 6000 mm/s |
| Max Scanning Width | 0–150 mm |
| Cleaning Efficiency | 0.4–0.8 m²/min |
| Cooling System | Water Chiller |
| Power Supply | 220V / 50Hz & 60Hz（1000W–2000W） / 380V（3000W） |
| Machine Size | 90 × 40 × 70 cm（1000–2000W） / 90 × 55 × 87 cm（3000W） |
| Weight | ≈120 kg（1000–2000W） / ≈150 kg（3000W） |
| Pulse Laser Cleaning Machine Parameters (HY-CR01): | |
| Item | Specification |
| Laser Type | Pulse Laser Source |
| Max Laser Power | 100W / 200W / 500W |
| Scanning Speed | 6000 mm/s |
| Max Scanning Width | 0–110 mm（100W） / 0–175 mm（200–500W） |
| Cleaning Efficiency | 0.2–0.5 m²/min |
| Cooling System | Air Cooling（100W） / Water Chiller（200–500W） |
| Power Supply | 220V / 50Hz |
| Machine Size | 62 × 47 × 30 cm（100W） / 90 × 87 × 100 cm（200–500W） |
| Weight | ≈28 kg（100W） / ≈270 kg（200–500W） |

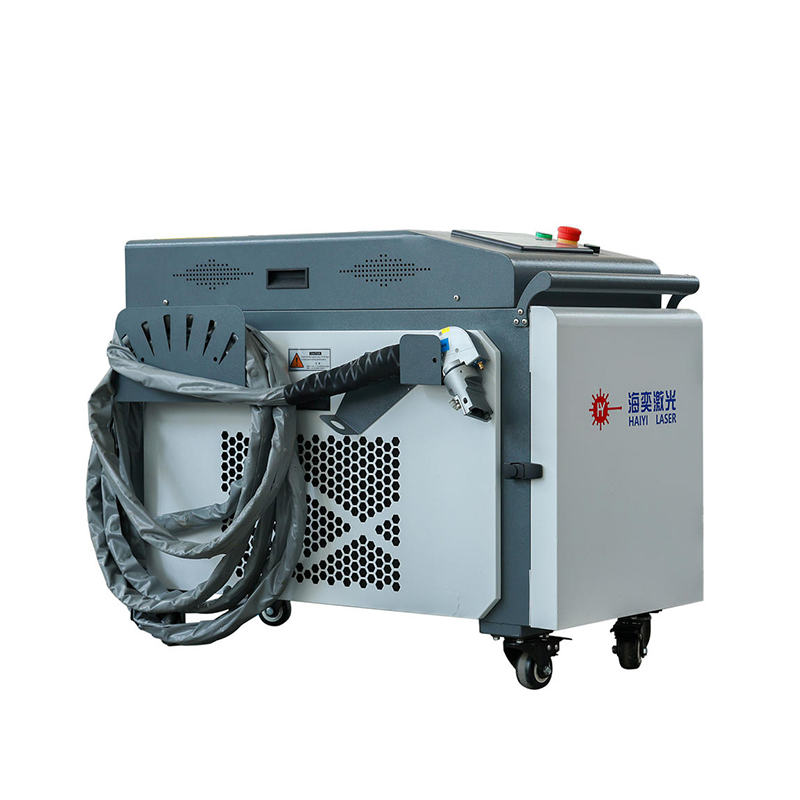

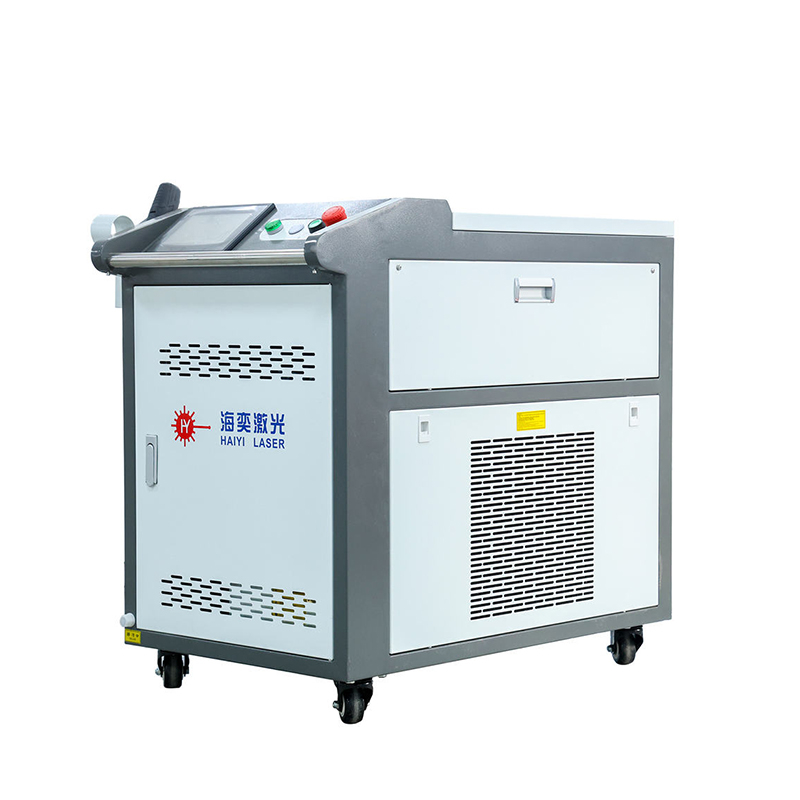

Products Pictures:
