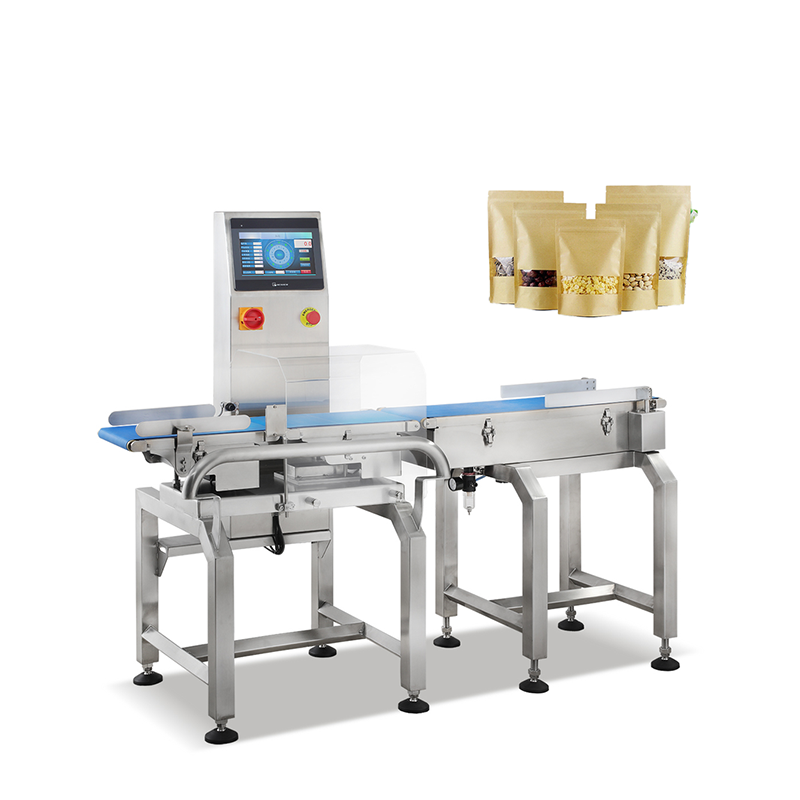

automatic inline checkweigher machine for small packaged food and products

dynamic weight checking machine with conveyor for high speed production lines

304 stainless steel checkweigher for precise weight inspection and sorting

Automatic Check Weigher Machine for Food Electronics Beverages Chemicals

This automatic check weigher is designed for high-speed, high-accuracy dynamic weight inspection, underweight detection, missing item checking, and completeness verification. It supports a wide range of small packaged products and is widely used in food, beverages, electronics, pharmaceuticals, health supplements, chemicals, agricultural goods, and light industrial applications. Featuring a stable stainless steel frame and high-resolution load cell technology, it ensures precise and efficient automated quality control.

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Machine Features:

1. High-Precision Dynamic Weighing

Accuracy up to ±0.3 g

Minimum scale resolution: 0.1 g

Equipped with high-precision digital load cells for fast sampling

2. Flexible & Multi-Application

Suitable for various package sizes

Ideal for food, electronics, beverages, health products, chemicals and more

3. Automatic Zero Tracking

Ensures consistent weighing accuracy

Adaptable to long-term continuous operation

4. High-Speed Performance

Conveyor speed up to 100 m/min

Maximum throughput: 160 bpm

Supports different reject methods for various production needs

5. Advanced Data Storage & Analysis

Stores 99 product parameters

Historical production data up to 1,500 records

Easy statistical analysis and tracking

6. Fast Response & Power Frequency Adaptability

Measurement time: 20ms (50Hz) or 33ms (60Hz)

Ensures stability under different regional power conditions

7. Food-Grade Stainless Steel Structure

Made of 304 stainless steel

Hygienic, corrosion-resistant, stable for long-term industrial use

Products Specification:

Item	Specification
Model	TY-JYP101P220-01-12
Power Supply	AC220V ±10%, 50/60Hz
Rated Power	0.3 kW
Weighing Range	Up to 1000 g
Accuracy Range	±0.3 g – ±1 g
Minimum Scale Value	0.1 g
Conveying Speed	30–100 m/min
Maximum Speed	160 bpm
Conveyor Size	400 mm (L) × 220 mm (W)
Rejecting Method	Pusher (optional: air blow, turning plate, special mechanism)
Machine Frame Material	304 Stainless steel
