Machine Features:
1. High Detection Accuracy
Detects ultra-small foreign objects: stainless steel ≥0.4mm, ceramic ≥1.0mm, glass ≥1.5mm
Suitable for foil-sealed and metallized film products
2. Intelligent Auto-Learning Software
Automated calibration and parameter optimization
AI-based detection enhancement for complex products
Three-level user authorization for secure operation
3. Full Food-Grade Design
SUS304 structure with food-grade PU belt
Six-layer protective curtain ensures safe X-ray shielding
Industrial cooling for stable long-term operation
4. Efficient Inline Quality Control
Real-time image analysis with automatic defect alarm
21.5” touchscreen for intuitive operation
LAN/USB data export for production reporting
5. Flexible Integration
Supports multiple rejection systems
Compatible with packaging, weighing, and filling production lines
Customizable tunnel size and conveyor height
Products Specification:
| Item | Specification |
| Model | XR-500D |
| X-ray Source | 150W 80kV (optional 350W 100kV) |
| Beam Direction | Top-down X-ray beam |
| Detector Resolution | 0.4 mm |
| Tunnel Size | 400mm (W) × 200mm (H), customizable |
| Max Detection Sensitivity (no product) | SUS ≥0.4mm; Ceramic ≥1.0mm; Glass ≥1.5mm |
| Conveyor Speed | 20–60 m/min |
| Load Capacity | ≤5kg, customizable |
| Operating System | Win 10 |
| Software | X-ray inspection software |
| Connectivity | LAN port, USB port |
| Screen | 21.5-inch full-color touchscreen |
| Parameter Settings | Auto setting / manual setting |
| Languages | English |
| Alarm Type | Buzzer + light alarm |
| Construction Material | SUS304 stainless steel |
| Surface Treatment | Mirror polished or brushed |
| Cooling System | Industrial cooling fans + industrial air conditioning |
| Working Environment | -5℃ to 40℃; humidity 30–90% RH (no condensation) |
| Power Supply | AC220V ±10%, 50/60Hz |
| X-ray Leakage | <1μSv/h (FDA & CE compliant) |
| Protection Curtain | 6-layer food-grade soft curtain (non-lead) |
| Conveyor Belt | Food-grade PU belt |
| Emergency Stop | Yes |
| User Management | 3-level access (operator / worker / administrator) |

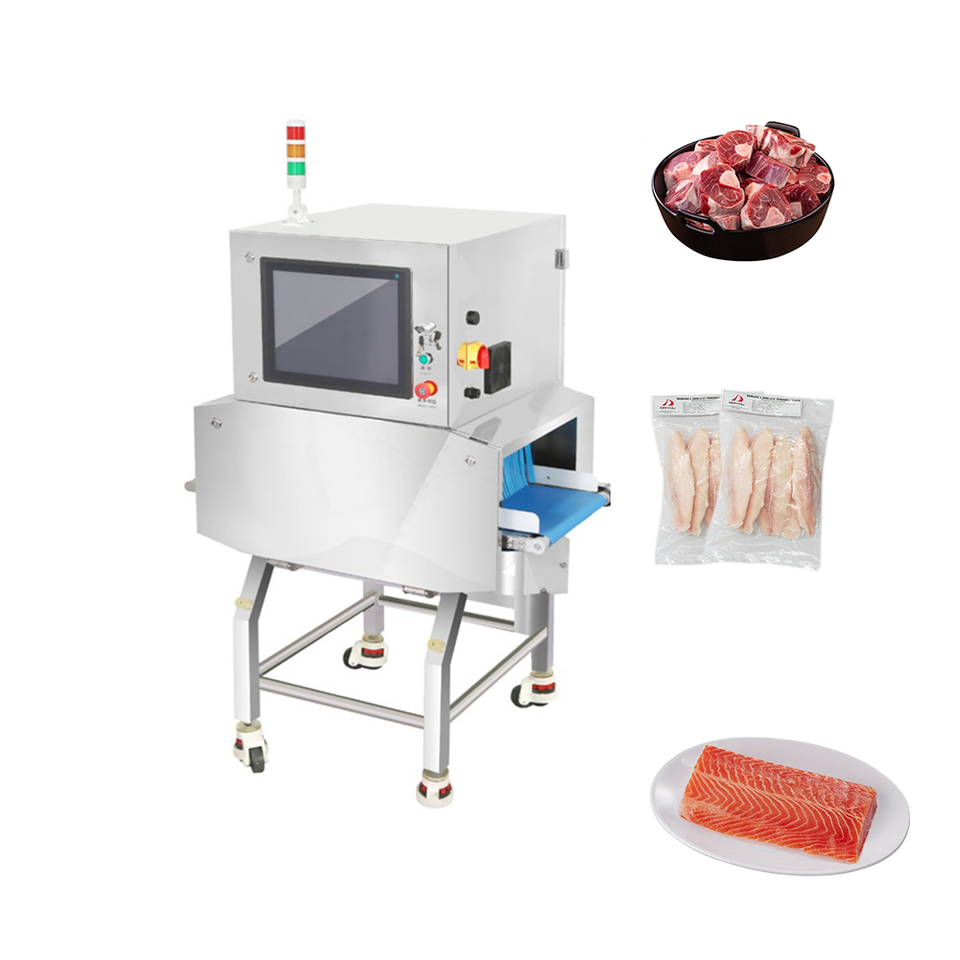

Products Pictures:
Machine Features:
1. High Detection Accuracy
Detects ultra-small foreign objects: stainless steel ≥0.4mm, ceramic ≥1.0mm, glass ≥1.5mm
Suitable for foil-sealed and metallized film products
2. Intelligent Auto-Learning Software
Automated calibration and parameter optimization
AI-based detection enhancement for complex products
Three-level user authorization for secure operation
3. Full Food-Grade Design
SUS304 structure with food-grade PU belt
Six-layer protective curtain ensures safe X-ray shielding
Industrial cooling for stable long-term operation
4. Efficient Inline Quality Control
Real-time image analysis with automatic defect alarm
21.5” touchscreen for intuitive operation
LAN/USB data export for production reporting
5. Flexible Integration
Supports multiple rejection systems
Compatible with packaging, weighing, and filling production lines
Customizable tunnel size and conveyor height
Products Specification:
| Item | Specification |
| Model | XR-500D |
| X-ray Source | 150W 80kV (optional 350W 100kV) |
| Beam Direction | Top-down X-ray beam |
| Detector Resolution | 0.4 mm |
| Tunnel Size | 400mm (W) × 200mm (H), customizable |
| Max Detection Sensitivity (no product) | SUS ≥0.4mm; Ceramic ≥1.0mm; Glass ≥1.5mm |
| Conveyor Speed | 20–60 m/min |
| Load Capacity | ≤5kg, customizable |
| Operating System | Win 10 |
| Software | X-ray inspection software |
| Connectivity | LAN port, USB port |
| Screen | 21.5-inch full-color touchscreen |
| Parameter Settings | Auto setting / manual setting |
| Languages | English |
| Alarm Type | Buzzer + light alarm |
| Construction Material | SUS304 stainless steel |
| Surface Treatment | Mirror polished or brushed |
| Cooling System | Industrial cooling fans + industrial air conditioning |
| Working Environment | -5℃ to 40℃; humidity 30–90% RH (no condensation) |
| Power Supply | AC220V ±10%, 50/60Hz |
| X-ray Leakage | <1μSv/h (FDA & CE compliant) |
| Protection Curtain | 6-layer food-grade soft curtain (non-lead) |
| Conveyor Belt | Food-grade PU belt |
| Emergency Stop | Yes |
| User Management | 3-level access (operator / worker / administrator) |
Products Pictures:
