Machine Features:
1. Easy-to-Use Operation Panel
Simplified LCD interface
Quick setup for operators
Improves work efficiency & reduces labor time
2. Smart Chip with Auto-Learning
Intelligent product learning for higher detection accuracy
Memory function stores multiple product parameters
Optimizes detection sensitivity for different food types
3. Full 304 Stainless Steel Structure
Anti-rust & corrosion-resistant
Durable in humid food-processing environments
Long-term hygienic performance
4. High-Precision Detection Head
Sealed resin structure
360° copper coil for accurate signal processing
Ensures stable and reliable metal detection
5. Food-Grade Conveyor Belt
Safe for direct food transit
Suitable for coffee beans, snacks, grains and bakery lines
Supports stable integration into production lines
Products Specification:
| Model | CQ-808 | ||||||
| 4010 | 4012 | 4015 | 4020 | 4025 | 4030 | ||
| Detection channel width(mm) | 400(Can be customized other widths 200~2000 optional) | ||||||
| Detection channel height(mm) | Standard window height | Non-standard window height | |||||
| 100 | 120 | 150 | 200 | 250 | 300 | ||
| Sensitivity | Fe(≥Φmm) | 1 | 1.2 | 1.5 | 1.5 | 2 | 2.5 |
| Non-Fe(≥Φmm) | 1.5 | 1.5 | 2 | 2.5 | 3 | 3.5 | |
| SUS(≥Φmm) | 2 | 2.5 | 3 | 3.5 | 4 | 4.5 | |
| The machine material | The whole machine is made of 304 stainless steel cold drawing process | ||||||
| Alarm type | Automatically shut down,and output a buzzer alarm sound warning | ||||||
| Machine size | About 1400*820*900(L*W*H)Or customized | ||||||
| Machine weighet | About 200 KG | ||||||
| Power supply | 220 V 50Hz 120W | ||||||
| Load capacity | ≤15KG | ||||||
| Speed | 25m/min(Or customized) | ||||||
| The height of belt from the ground | 750±50mm(Or customized) | ||||||

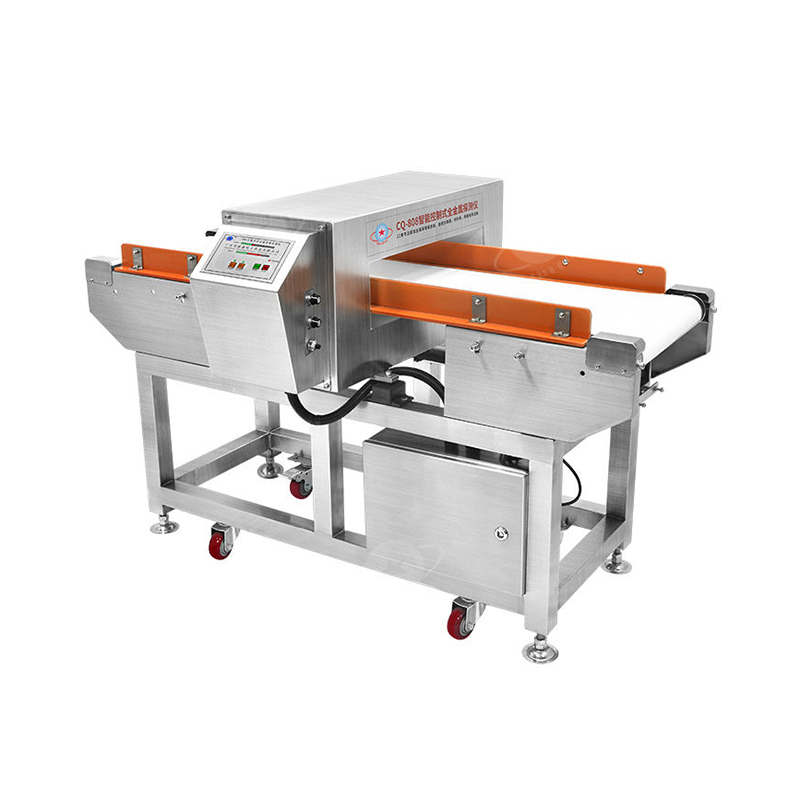

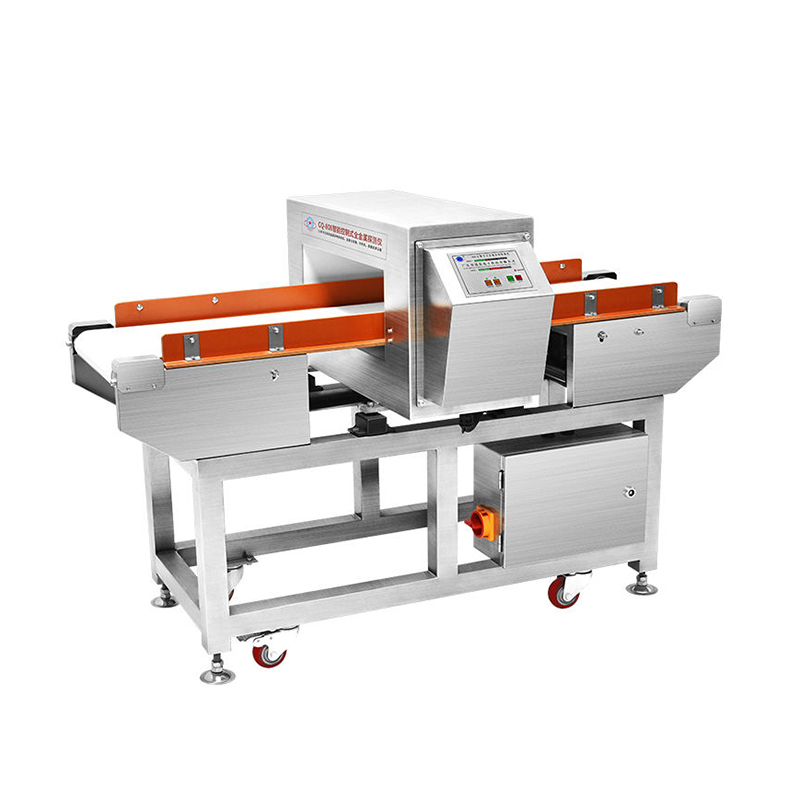

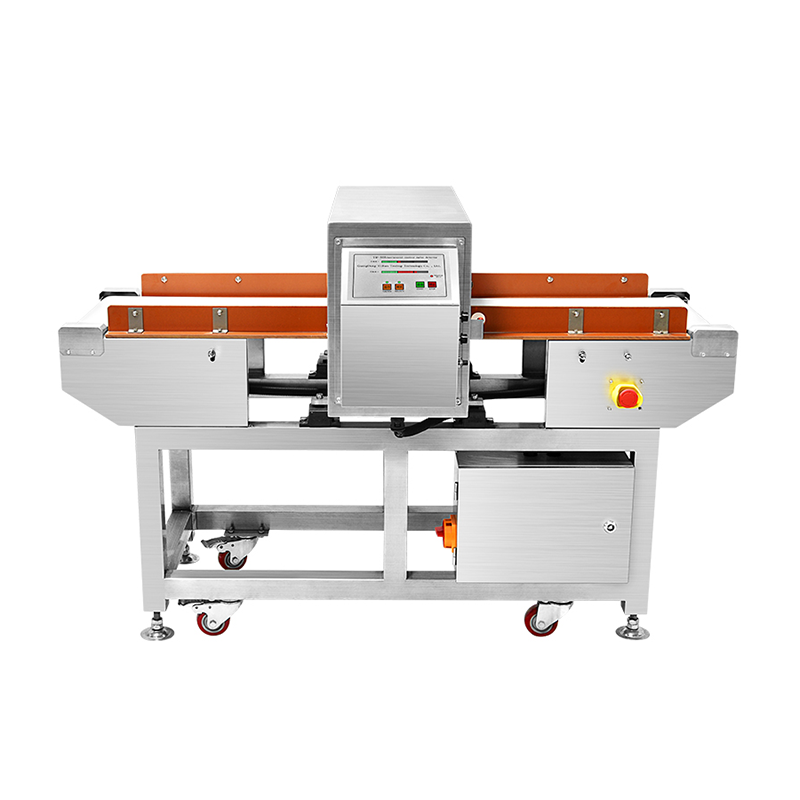

Products Pictures:
