Machine Features:
1. Dual-Beam Imaging Eliminates Blind Zones
Two X-ray beams capture the product from different angles, ensuring no inspection area is missed—especially in thick-bottom or curved containers.
2. High Sensitivity for Multiple Contaminant Types
Detects stainless steel, metal wire, glass fragments and ceramic pieces with sensitivity down to Φ0.5mm (steel ball).
3. Stable and Safe Operation
X-ray leakage < 0.5 μSv/h
Protective tunnel for safer operation
IP54 structure, optional IP65 for wet environments
4. Designed for Harsh Industrial Environments
Operates from -10°C to 40°C, withstands 30–90% humidity, and uses industrial-grade air conditioning for stable cooling.
5. Seamless Integration with Production Lines
Supports 10–60 m/min conveyor speed and includes push-type automatic rejection for defective products.
Products Specification:
| Item | Specification |
| X-ray Generator | Max. 120kV, 480W (dual source) |
| Inspection Width | 160mm |
| Inspection Height | 260mm |
| Best Inspection Sensitivity | Stainless steel ball Φ0.5mm; Stainless steel wire Φ0.3×2mm; Glass/Ceramic ball Φ2.0mm |
| Conveyor Speed | 10–60 m/min |
| Operating System | Windows 7 |
| Protection Method | Protective tunnel |
| X-ray Leakage | ＜0.5 μSv/h |
| IP Rating | IP54 standard, optional IP65 |
| Working Temperature | -10°C to 40°C |
| Working Humidity | 30%–90%, no condensation |
| Cooling Method | Industrial air conditioning |
| Rejector Mode | Push-type rejecter |
| Air Pressure | 0.8 MPa |
| Power Consumption | 4 kW |
| Main Material | SUS304 stainless steel |
| Surface Treatment | Mirror polished / Sand blasted |

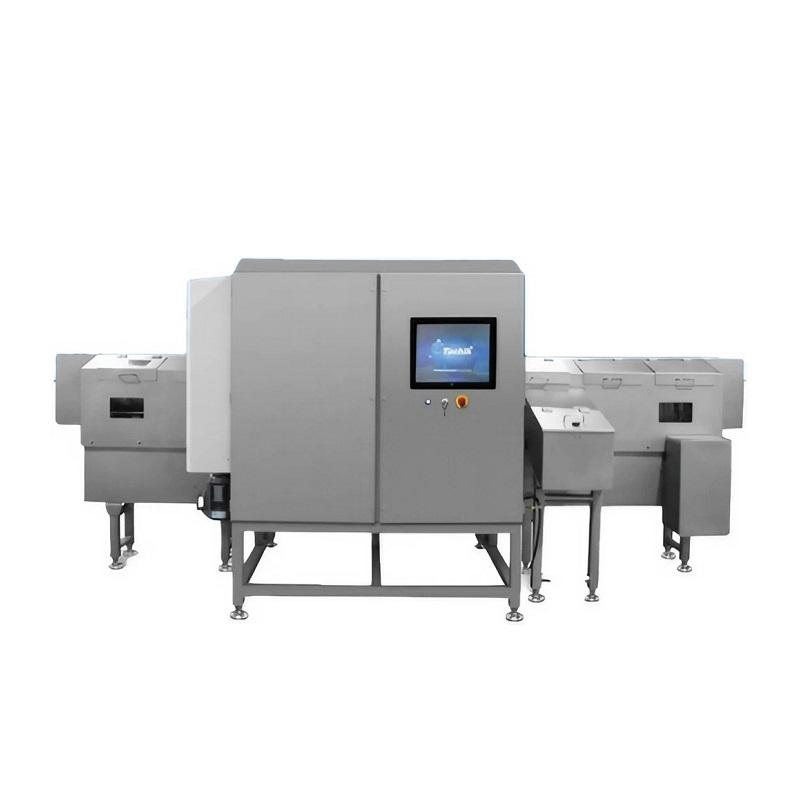

Products Pictures:
