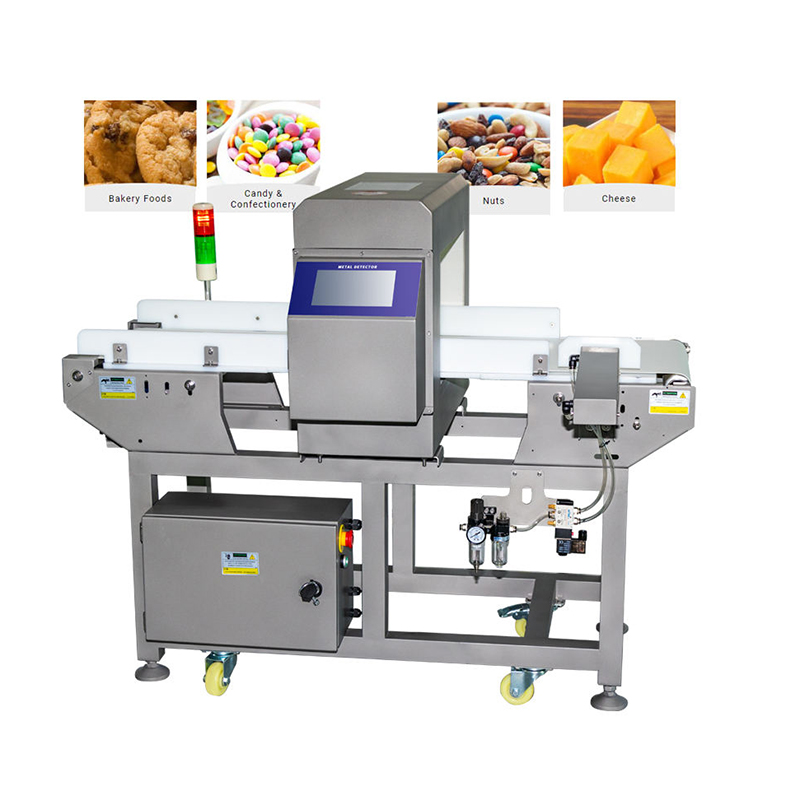

High precision food metal detector machine for processing lines

Conveyor inspection metal detector for bakery meat and dairy

Stainless food detector with touch screen and auto tracking

Industrial conveyor metal scan machine with IP67 stainless design

Food grade conveyor metal detector for HACCP GMP production

Customized High-precision Conveyor Type Food Metal Detector Machine

This high-precision conveyor type metal detector (Model SA-990) is designed for detecting ferrous, non-ferrous and stainless-steel contaminants in food products such as meat, bakery items, sausages, fruits, vegetables, dairy, spices and sugar. Its customizable detection tunnel and conveyor dimensions allow adaptation to different production requirements. Equipped with a new-generation touch-screen control system, the detector uses digital processing to automatically capture optimal signal points, improving detection accuracy and stability. The machine supports over 200 product memory presets, enabling fast switching between multiple SKUs on a single production line.

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Machine Features:

1. Digital Signal Processing for Higher Sensitivity

CPU-based signal collection & digital output

Auto-calibrates the best detection point for each product

Improves sensitivity, reliability and detection consistency

2. Food-Grade Belt Meeting Global Standards

White, non-toxic hygienic PVC/PU belt

Complies with HACCP, GMP, FDA, CAS standards

Suitable for direct food contact environments

3. Intelligent Production Line Integration

Supports automatic reject system options

Enables unmanned detection & removal of unqualified products

Perfect for continuous industrial production

4. Automatic Tracking to Prevent False Rejects

Real-time phase tracking compensates for product effect

Especially effective for frozen, moist or high-salt foods

Reduces misjudgment and enhances stability

5. Large-Capacity Memory for 200+ Products

Records product parameters for multi-SKU factories

Easy switching between different foods

Great for bakery, meat, spice and dairy producers

6. Wide Application Across Food Industries

Detects stainless steel, ferrous and non-ferrous metals

Suitable for meat, sausages, bakery items, spices, sugar, dairy & more

Ensures food safety across entire supply chain

Products Specification:

Item	Specification
Model	SA-990
Machine Length	1330–2000 mm（customizable）
Detection Tunnel Width	200–1200 mm（customizable）
Detection Tunnel Height	50–1000 mm（customizable）
Sensitivity – FE	≥0.5 mm
Sensitivity – Non-FE	≥0.8 mm
Sensitivity – SUS304	≥1.0 mm
Protection Level	IP67
Memory Capacity	200+ product programs
Display	Touch screen
Operation	Touch-button input
Alarm Mode	Sound alarm / stop alarm / optional rejector
Machine Material	304 Stainless Steel
Conveyor Belt	Food-grade PVC or PU
Machine Weight	Approx. 280 kg
Motor Power	90–370 W
Conveyor Speed	10–28 m/min (adjustable)
Power Supply	AC220V ±10% (optional 110V / 380V)
Belt Height	700 ±100 mm（customizable）
Max Load	10–50 kg（customizable）
Working Temperature	–15°C to 40°C
Working Humidity	30–85% RH
