Machine Features:
1. AI Intelligent Defect Recognition
Built-in self-learning algorithm automatically adapts to product characteristics
Detects multiple defect types: cracking, deformation, missing corners, overlapping parts
High precision detection for both packaged and bulk materials
2. High Sensitivity Foreign Object Detection
Detects stainless steel ball as small as Φ0.3mm
Detects glass and ceramic contaminants down to Φ1.0mm
Effective for metal, glass, stones, bones, and other hard foreign objects
3. Stable & Industrial-grade Structure
SUS304 stainless steel frame with IP65 protection
Industrial air-conditioning ensures stable operation in harsh environments
Soft-curtain radiation shielding design, removable for easy maintenance
4. Efficient Integration with Production Lines
Adjustable speed conveyor (30–60 m/min)
Multiple rejection systems available
Flexible design suitable for packaging lines and bulk inspection
5. Large Touchscreen & Easy Operation
21.5-inch full-color touch display
Supports multiple preset inspection modes
Fast calibration and user-friendly UI
Products Specification:
| Item | Specification |
| Model | XS4016 |
| Detecting Width | 400mm |
| Detecting Height | 160mm |
| X-ray Tube Voltage | 30–80 kV |
| X-ray Tube Current | 2000–5000 μA |
| X-ray Power | 480W |
| Max Load | 15 kg |
| Conveyor Height | 800 ± 50mm |
| Detection Sensitivity | SS Ball Φ0.3mm；Glass/Ceramic Ball Φ1.0mm |
| Conveyor Speed | 30–60 m/min |
| Display | 21.5" Full-color Touch Screen |
| Supported Algorithms | Foreign object detection / defect detection |
| X-ray Leakage | ＜1 μSv/hour |
| Working Environment | Temperature −10℃~40℃；Humidity 30%–90% (no frost) |
| Cooling Mode | Industrial air conditioning |
| Protection | Removable soft curtain |
| Alarm Mode | Sound & light alarm, stop, reject (optional) |
| Power Supply | AC220V ±10%, 50/60Hz |
| Machine Material | SUS304 |
| IP Rating | IP65 |

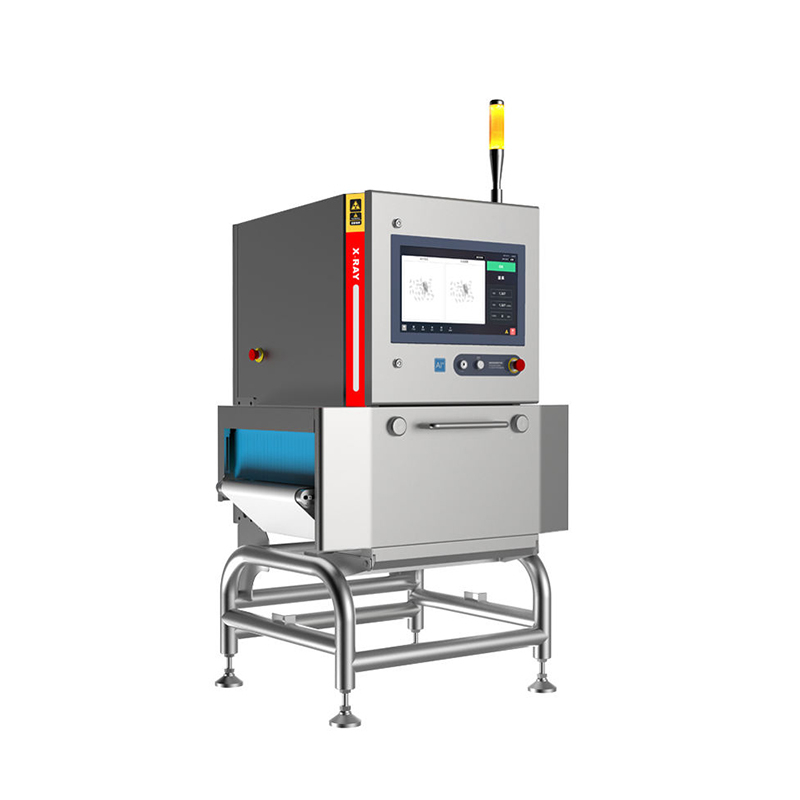

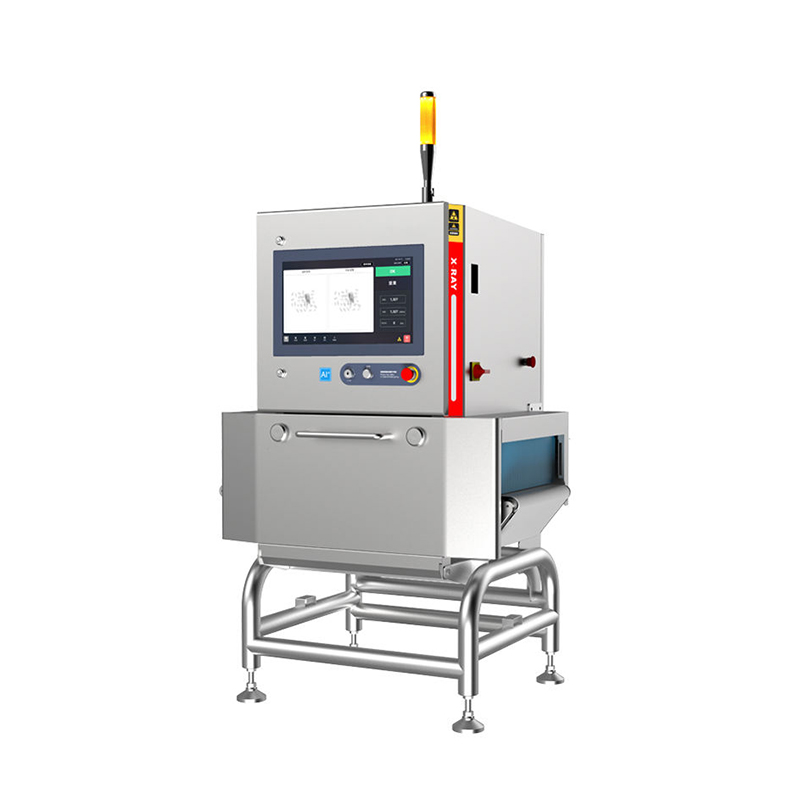

Products Pictures:
