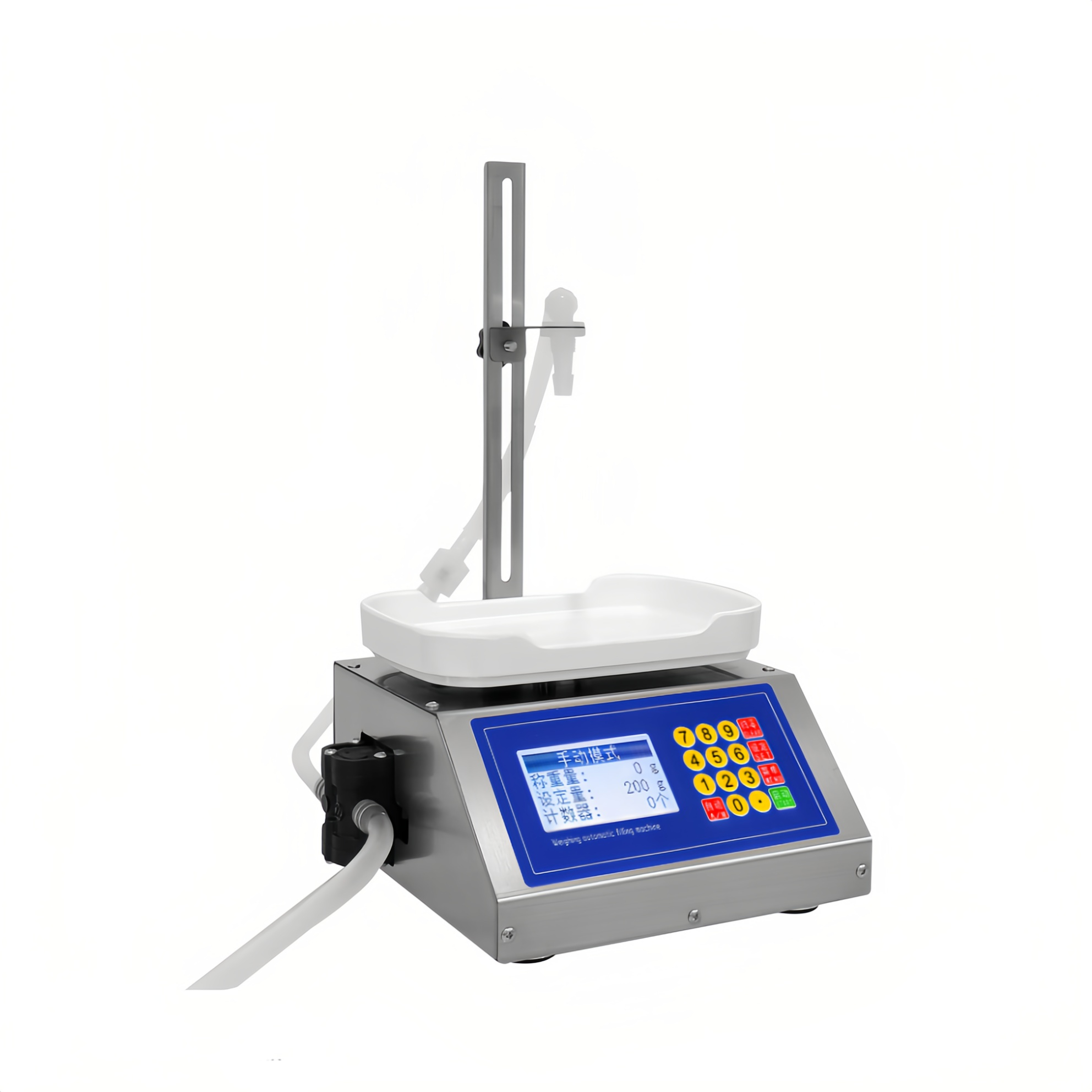

CSY-3200 diaphragm filling machine for beverages, fertilizers, and light oils with 3200ml per minute flow rate

CSY-3200 High-Speed General-Purpose Liquid Filling Machine (8–1000g)

The CSY-3200 is a diaphragm pump-based liquid filling machine designed for mid-to-large volume applications. With a recommended filling range of 8–1000g and max capacity of 3000g, it's ideal for water, beverages, pesticides, liquid fertilizers, soy/vinegar sauces, and light edible oils. Resistant to mild corrosive liquids and up to 60°C heat, it is not suitable for oils, aggressive acids/alkalis, or liquids that corrode rubber/silicone.

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Features:

1: High-Speed Filling

Maximum flow rate of 3200ml/min; fills 500g of water in 10 seconds — great for high-efficiency operations.

2: Broad Liquid Compatibility

Handles a wide range of low-viscosity liquids: wine, juice, fertilizers, pesticides, etc., with up to 3000g max weight.

3: Safe for Mild Corrosive Liquids

8mm nozzle, heat-resistant to 60°C, compatible with weakly corrosive media — but not suitable for oils or harsh chemicals.

Technical Parameter

Item	Value
Recommended Fill Range	8–1000g
Nozzle Diameter	8mm
Max Filling Weight	3000g
Overall Accuracy	≤1g
Suitable Liquids	Beverages, pesticides, liquid fertilizers, light edible oils
Not Suitable For	Oils, strong acids/alkalis, silicone/rubber corrosives
Corrosion Resistance	Mildly corrosive liquids only
Temperature Resistance	Up to 60°C
Pump Type	Diaphragm pump
Max Flow Rate	3200ml/min
Sample Speeds	500g water: 10s; 500g oil: 20s; 500g detergent: 30s
Viscosity Limit	Up to detergent-level, ≤200g recommended
Recommended Alternative	L17 (if fill >500g or viscous >200g)
