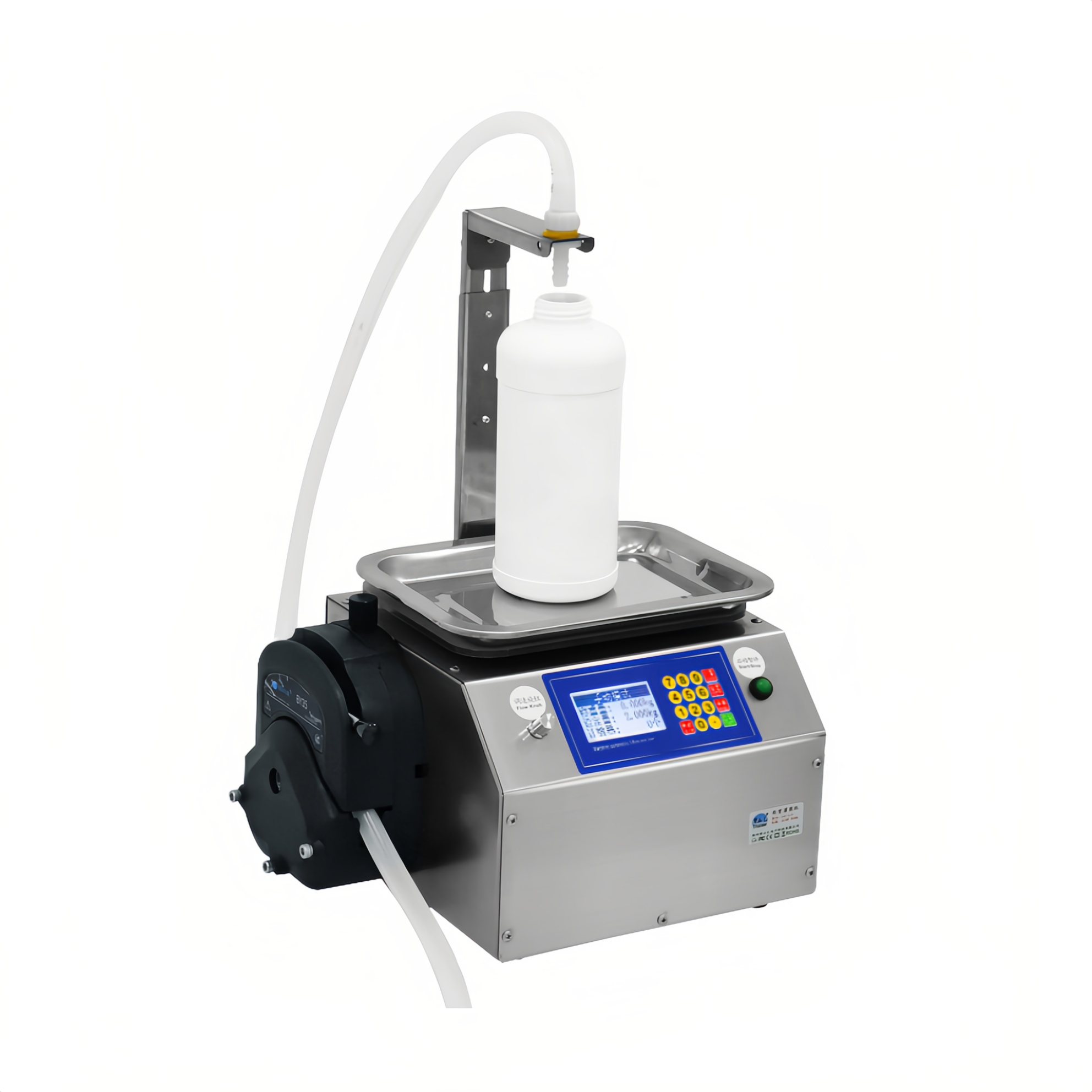

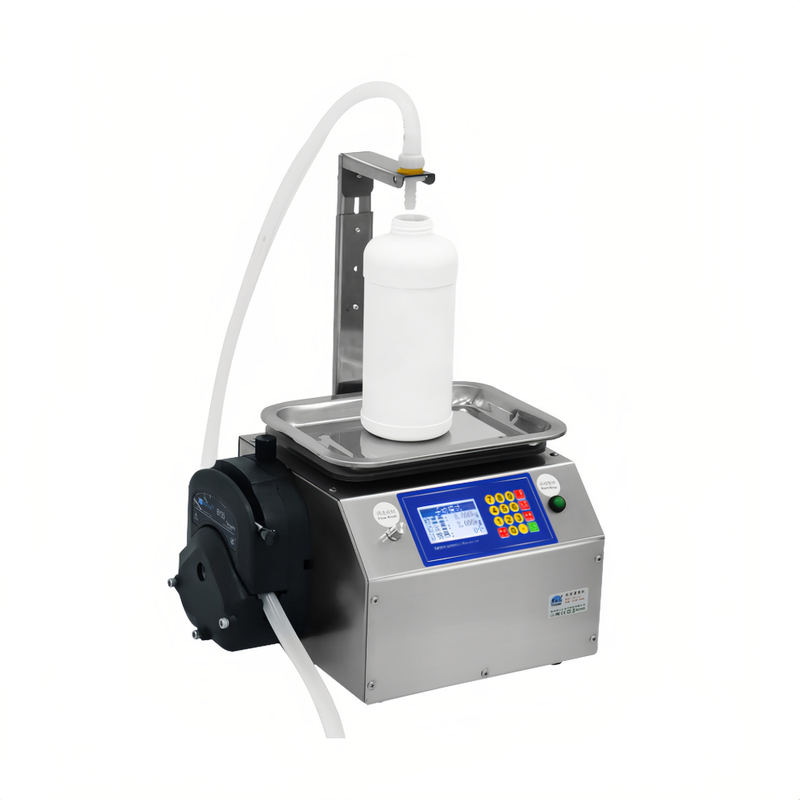

The CSY-L13 is a sanitary-grade filling machine equipped with a large peristaltic pump, supporting fills from 30g to 10kg with an accuracy of ≤2g. Ideal for glue, medicine, and other hygienic applications, it features non-metallic liquid contact, seamless tubing, and quick hose changes — minimizing contamination risks. It is resistant to heat, acids, alkalis, and solvents, suitable for all silicone-safe liquids.
SKU:
Availability:
Quantity:

Product Features:

1: Sanitary Design with No Contamination Points

 Fully hygienic for pharma/glue-grade use. Tubing has no connectors, easy to replace, and avoids cross-contamination.


2: Large Peristaltic Pump with Strong Compatibility

 Delivers up to 8L/min, compatible with high-temp, acidic, and solvent-based fluids (as long as silicone-safe).


3: Viscosity-Tolerant, Volume-Flexible

 Handles detergent-level liquids up to 500g efficiently; ideal for 30g–10kg wide range filling.


Technical Parameter

ItemValue
Recommended Fill Range0.03–10kg
Nozzle Diameter12mm
Max Filling Weight10kg
Overall Accuracy≤2g
Suitable LiquidsGlue, medicine, sanitary-sensitive liquids
Chemical ResistanceHeat / Acid / Alkali / Solvent safe (silicone-safe)
Pump TypeLarge peristaltic pump
Max Flow Rate8L/min
Viscosity Limit≤ Dish soap; up to 500g fill recommended
Tubing StructureSeamless; easy replacement
DrawbacksVibrates, costly unit and tubing
Recommended AlternativeL15 (if peristaltic pump not required)
