You are here: Home / Products / Packaging & Processing / Filling Machine / CSY-M90 Micro-Volume High-Precision Liquid Filling Machine(0.5–10g)

CSY-M90 micro liquid filler for precision reagent and lab solution dosing

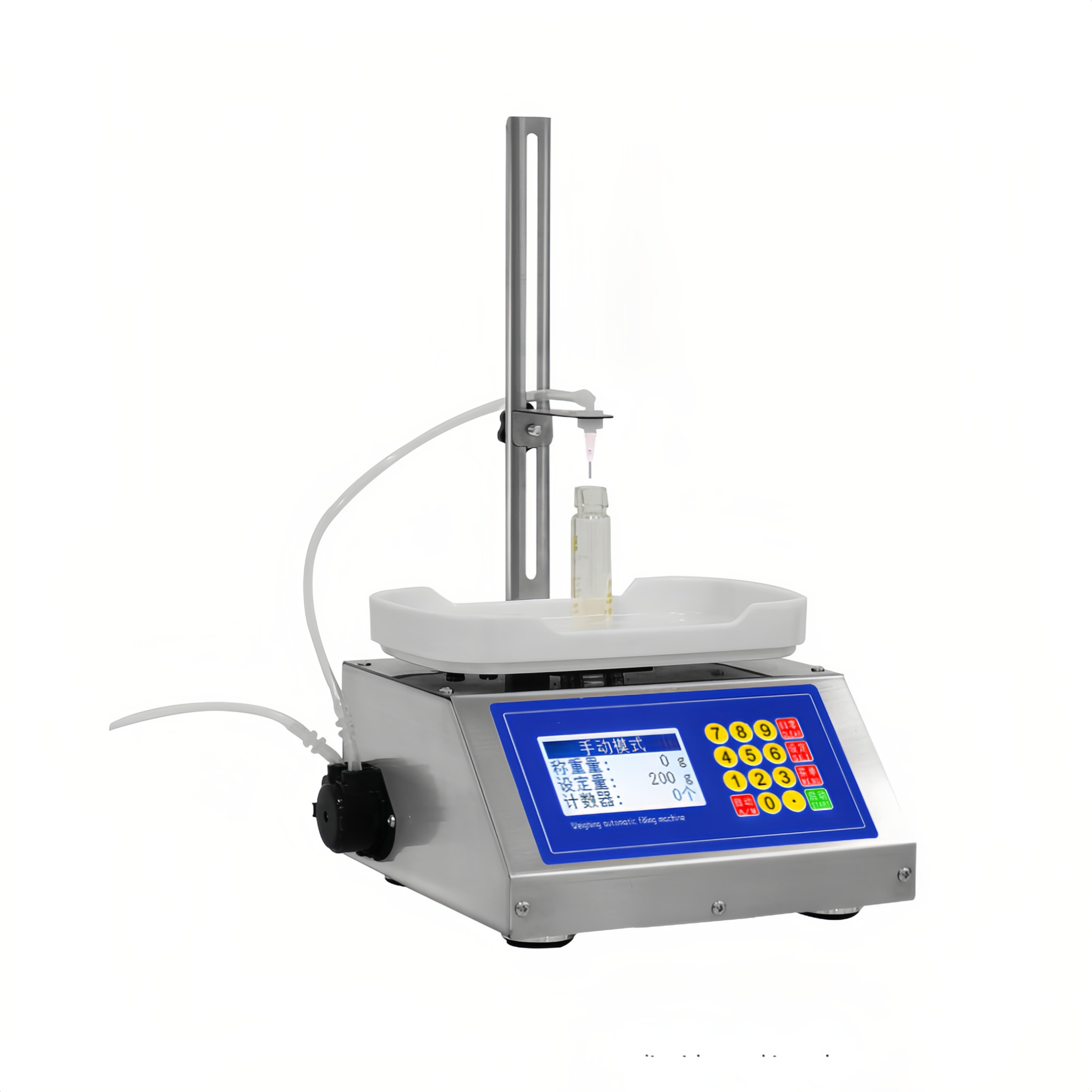

CSY-M90 Micro-Volume High-Precision Liquid Filling Machine(0.5–10g)

The CSY-M90 is a precision liquid filling machine designed for micro-dosage applications such as diluted medicines, chemical reagents, and trial-size liquids. Featuring a miniature peristaltic pump, it offers strong chemical resistance and precise filling with a recommended range of 0.5–10g. It supports up to 300g filling with a total error margin of ≤0.1g. Ideal for users requiring ultra-precise dosing.

For general use where ±0.1g accuracy is not mandatory, the CSY-1200 is recommended.

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Features:

1: High-Precision Micro Filling

Recommended range: 0.5–10g with overall accuracy ≤0.1g; ideal for reagents, test liquids, and precise micro-dosing.

2: Corrosion-Resistant Pump System

Uses a miniature peristaltic pump that is resistant to heat, acids, and alkalis — compatible with most non-silicone-corrosive liquids.

3: Flexible Nozzle & Filling Setup

Standard 3mm filling head; can be fitted with a 1.5mm tip for ultra-precision; supports up to 300g filling and 90ml/min flow rate.

Technical Parameter

Item	Value
Recommended Filling Range	0.5–10g
Nozzle Diameter	3mm (can be fitted with 1.5mm tip)
Max Filling Weight	300g
Overall Accuracy	≤0.1g
Liquid Viscosity Limit	≤ edible oil
Corrosion Resistance	Heat, acid/alkali, and corrosion resistant
Not Suitable For	Silicone-corrosive liquids
Max Flow Rate	90ml/min
Pump Type	Miniature peristaltic pump
Recommended Alternative	CSY-1200 (if ultra-precision not required)

micro liquid filler small dose filling machine precision dosing pump
