CSY-L36 High-Speed Large-Capacity Liquid Filling Machine (30g–30kg)

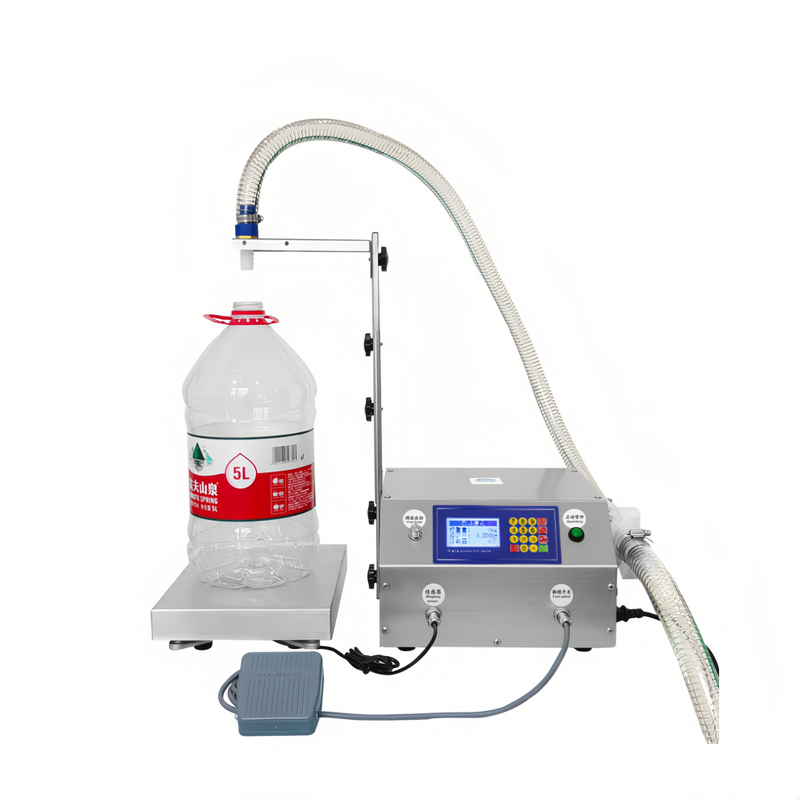

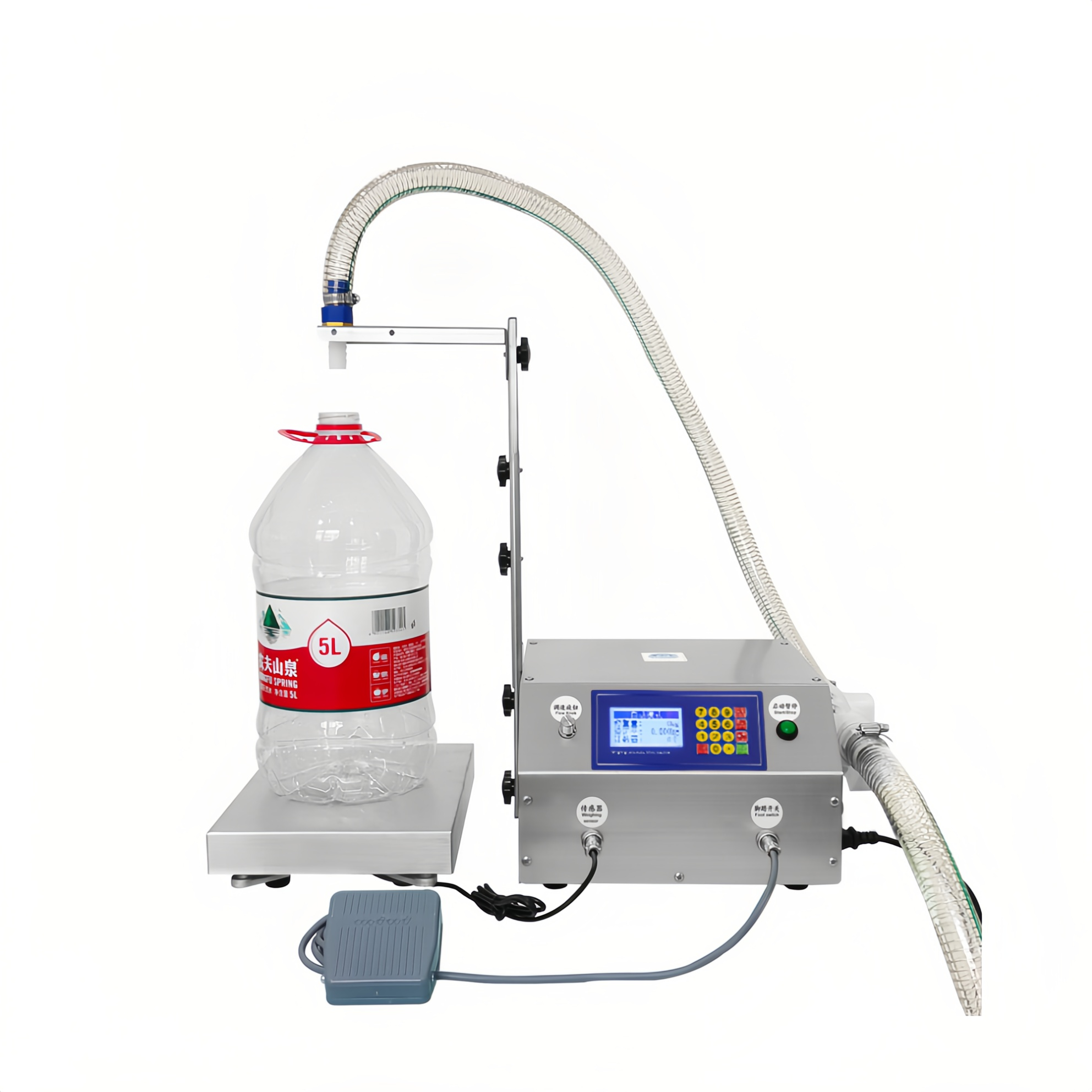

CSY-L36 is a powerful diaphragm pump filling machine designed for high-volume liquid applications, with a recommended fill range of 30g–30kg and weighing capacity up to 30kg. It achieves a top flow rate of 36L/min — double the speed of L17 — making it ideal for filling wine, detergents, oils, pesticides, and liquid fertilizers.
Available in acid-resistant, solvent-grade, and alcohol-optimized models, the L36 also features a split-type independent weighing platform for greater flexibility.

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Features:

1: Ultra-Fast 36L/min Flow Rate

Handles large-volume fills from 30g to 30kg. Fills twice as fast as the L17, saving significant time.

2: Customizable for Different Fluids

Available in hydrochloric acid, solvent, and alcohol versions — ideal for industrial, chemical, or food-grade use.

3: Independent Weighing Platform

Split design allows more flexible operation, suitable for larger containers and assembly-line use.

Technical Parameter

Item	Value
Recommended Fill Range	30–30,000g
Nozzle Diameter	16mm and 12mm
Max Filling Weight	30kg
Overall Accuracy	≤5g
Max Flow Rate	36L/min
Pump Type	Fluoro rubber diaphragm pump (acid/solvent/alcohol models available)
Weighing Design	Split-type independent platform
Suitable Liquids	Wine, water, detergent, edible oil, pesticide, fertilizer, etc.
Recommended Alternatives	L17 (for <10kg bottles), L72 (for >30kg output)
