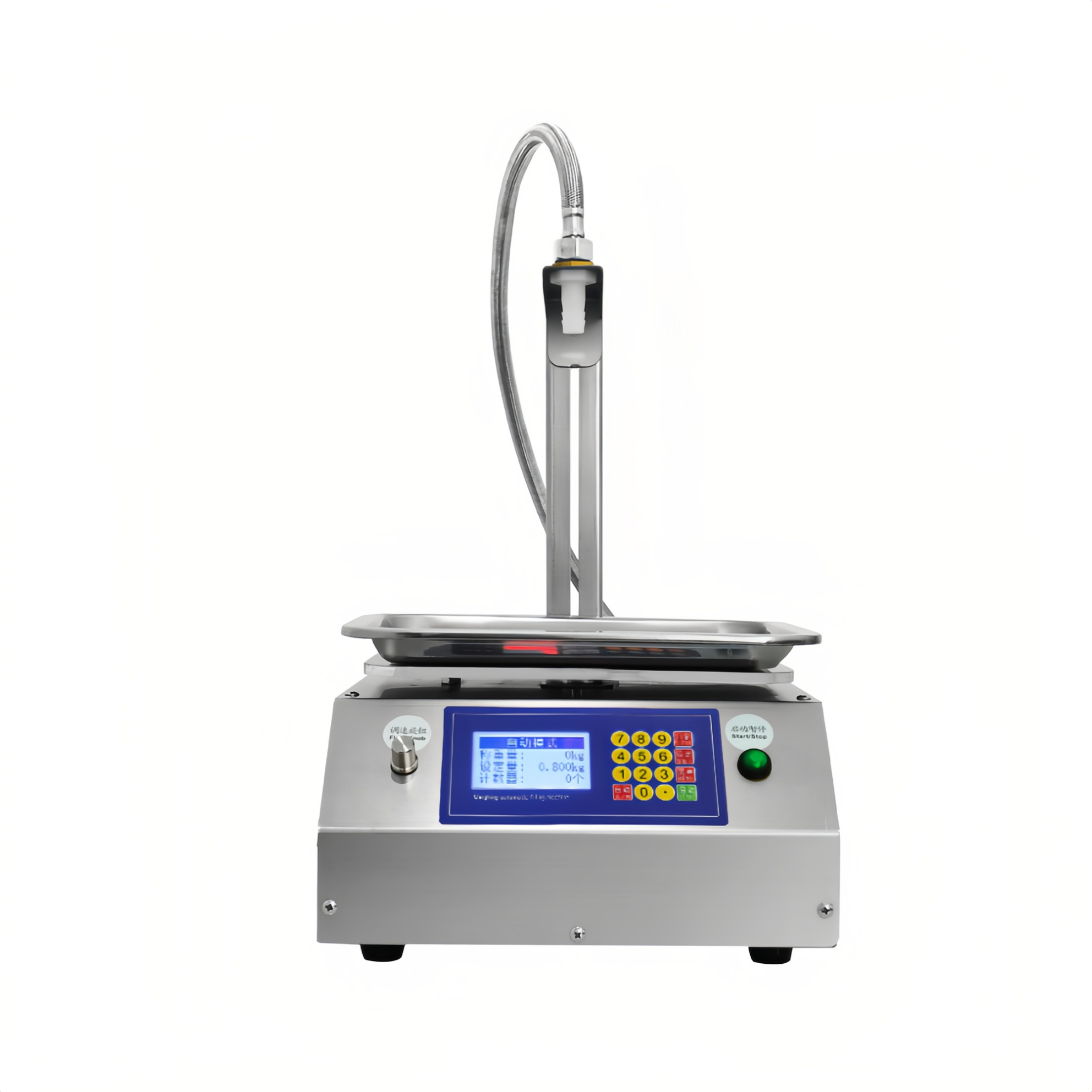

CSY-L17 High-Speed Liquid Filling Machine (30g–10kg)

The CSY-L17 is a high-efficiency diaphragm pump filling machine designed for fast, high-volume dispensing. With a recommended fill range of 30g–10kg and max weight up to 10kg, it offers ±2–5g accuracy. Featuring a fluoro rubber diaphragm pump, the machine achieves a top flow rate of 17L/min — 5× faster than CSY-3200 — making it ideal for food, cleaning, agricultural, and chemical industries.

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Features:

1: Fast & Large-Scale Filling

Supports 30g–10kg filling; up to 17L/min flow rate. Fills a 5kg bottle in under 20 seconds.

2: Versatile Liquid Compatibility

Perfect for wine, beverages, detergents, disinfectants, pesticides, and liquid fertilizers — across food, cleaning, and agriculture.

3: Durable Fluoro Rubber Diaphragm Pump

Heat-resistant up to 80°C; compatible with most non-corrosive fluids; stable and solvent-safe.

Technical Parameter

Item	Value
Recommended Fill Range	30–10,000g
Nozzle Diameter	14mm and 12mm
Max Filling Weight	10kg
Overall Accuracy	≤2–5g
Suitable Liquids	Wine, drinks, edible oil, detergent, pesticide, etc.
Not Suitable For	Fluoro rubber/PVC corrosive fluids
Temperature Resistance	≤80°C
Pump Type	Fluoro rubber diaphragm pump
Max Flow Rate	17L/min
Sample Speeds	Water: 17L/min; Oil: 12L/min; Detergent: 9L/min; Dish Soap: 3L/min
Recommended Alternative	L36 (for bottle sizes >5kg)

industrial liquid filler high speed filling machine large volume liquid filler
