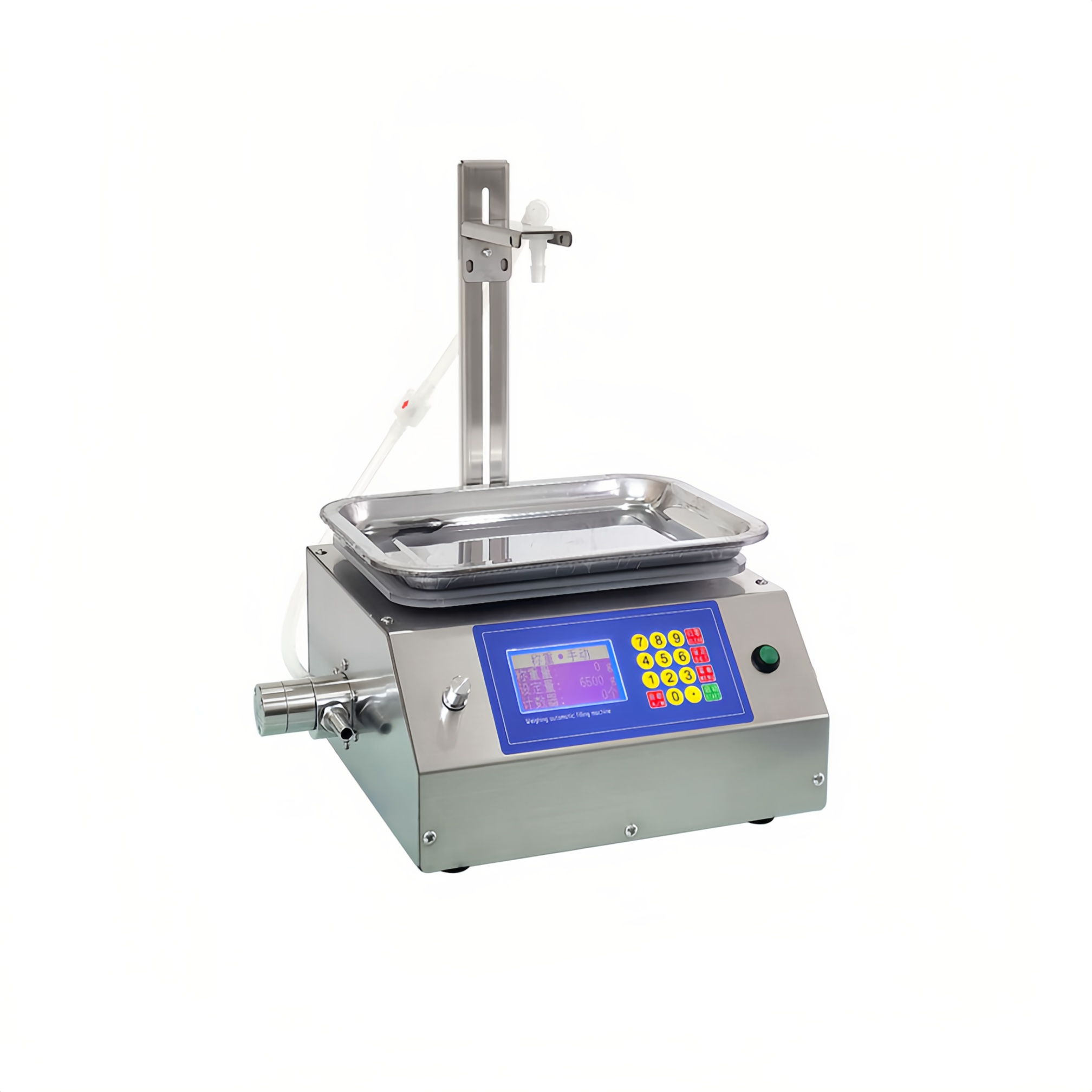

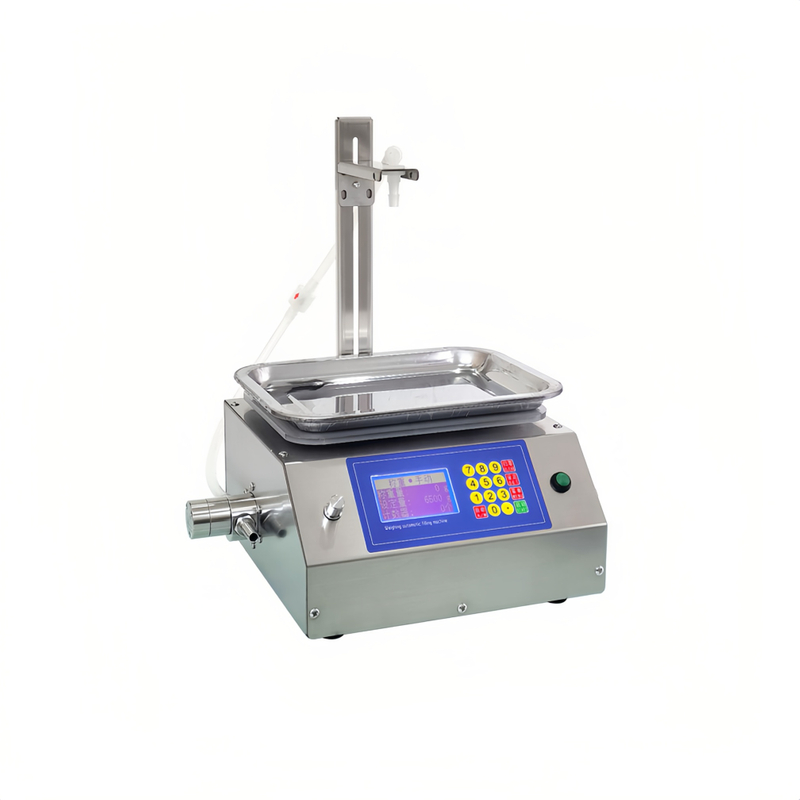

CSY-6500 High-Precision Corrosion-Resistant Liquid Filling Machine (10–5000g)

The CSY-6500 is a high-performance liquid filling machine designed for industrial and food-grade applications. With a recommended fill range of 10–5000g and up to 8000g max capacity, it handles beverages, oils, acids, alkalis, solvents, and chemical reagents. Equipped with a magnetic gear pump and 316 stainless steel food-grade housing, it offers smooth, pulse-free operation and excellent chemical resistance.

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Features:

1: Large Volume + Precision Accuracy

Supports 10–5000g fills, up to 8000g total weight with ≤2g accuracy — ideal for industrial-scale applications.

2: Magnetic Gear Pump – No Pulsation

Delivers up to 6500ml/min with a magnetically driven gear system for stable, continuous, and quiet operation.

3: Food-Grade & Strong Corrosion Resistance

Constructed from 316 stainless steel, compatible with food liquids, acids, alkalis, and harsh solvents.

Technical Parameter

Item	Value
Recommended Filling Range	10–5000g
Nozzle Diameter	8mm
Max Filling Weight	8000g
Overall Accuracy	≤2g
Suitable Liquids	Beverages, medicine, oils, acids, solvents, chemicals
Not Suitable For	Viscous liquids >100g (recommend L15)
Chemical Resistance	Heat / Acid / Alkali / Corrosion / Solvent
Pump Type	Magnetically-driven gear pump
Pump Material	316 Stainless Steel (food grade)
Max Flow Rate	6500ml/min
Flow Stability	Pulse-free, stable operation
Viscosity Limit	Up to dishwashing liquid (100g max)
Recommended Alternative	L15 (for viscous, high-volume applications)
