Machine Features:
360-Degree Panoramic Laser Scanning:
Rotating laser head provides full-angle field of view for complete spatial data capture.
Real-Time 3D Mapping Capability:
Generates maps during data collection, enabling immediate visualization and faster decision-making.
High-Precision SLAM Positioning:
Integrated inertial navigation unit and SLAM algorithm reduce cumulative errors for accurate surveying and mapping.
Integrated Visual and Texture Cameras:
High-resolution cameras capture visual and texture data, improving point cloud clarity and scene detail.
High-Quality Point Cloud Output:
Delivers dense point cloud data with fine thickness control in both real-time and post-processing modes.
Lightweight and Portable Design:
Compact body and balanced weight allow comfortable handheld operation for extended use.
Flexible Expansion and Working Modes:
Supports connection to external power supplies, RTK modules, tripods, backpacks, and multiple operating configurations.
Wide Application Adaptability:
Suitable for enclosed spaces, indoor environments, outdoor mapping, emergency rescue, and navigation-related tasks.
Products Specification:
| Main body | |
| Weight | 925g (Host), 1450g (With handle and base) |
| Dimensions | 94.5 mm x 84.6 mm x 219 mm (Host) |
| 170 mm x 173.8 mm x 364.5 mm (With handle and base) | |
| Power consumption | 20 W (Typical) |
| Input voltage | 20 V |
| Internal storage | 512 GB SSD |
| Protection class | IP54 |
| Scanning FOV | Panoramic 360° |
| Accuracy | |
| Point cloud thickness | ≤ 1cm (Post-processing), ≤ 2cm (Real-time) |
| Relative accuracy | ≤ 2cm (Post-processing), ≤ 3cm (Real-time) |
| Absolute accuracy | ≤ 5cm (Post-processing) |
| Laser scanner | |
| Wavelength | 905 nm |
| Laser class | Class 1 |
| Range | 0.1 m ~ 70 m @ 80% |
| FOV | 360° (H), -7° ~ 52° (V) |
| Laser pulse repetition rate | 200 kHz |
| Echo | Single (Strongest) |
| Frame rate | 10 Hz (Tvpical) |
| Texture camera | |
| Resolution | 12 MP |
| CMOS size | 1 inch |
| FOV | 210° (Diagonal) |
| Frame rate | 30 Hz |
| Visual camera | |
| Resolution | 12 MP |
| CMOS size | 1 inch |
| FOV | 100° (Diagonal) |

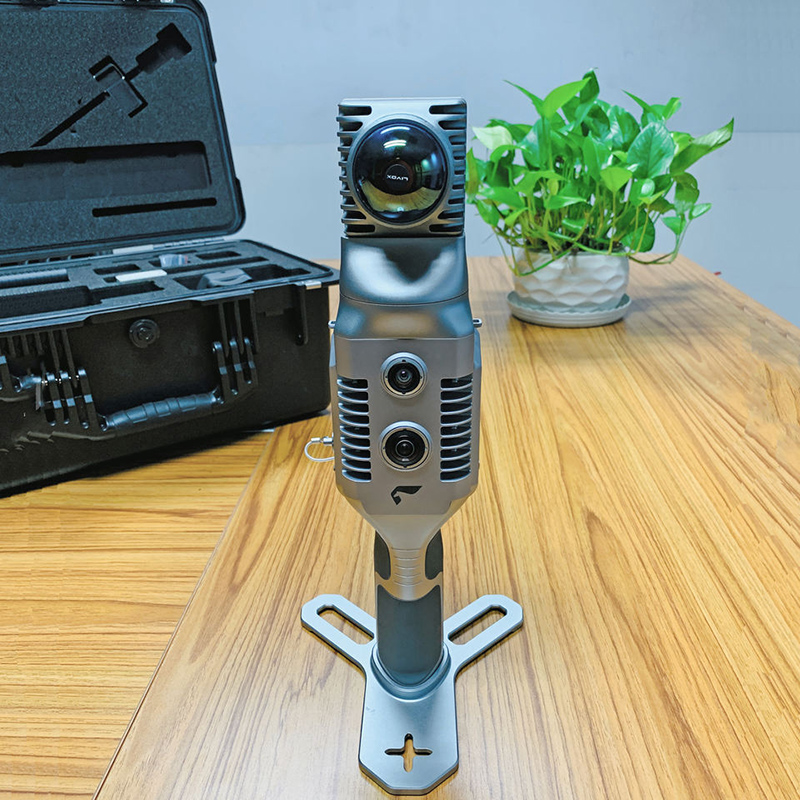

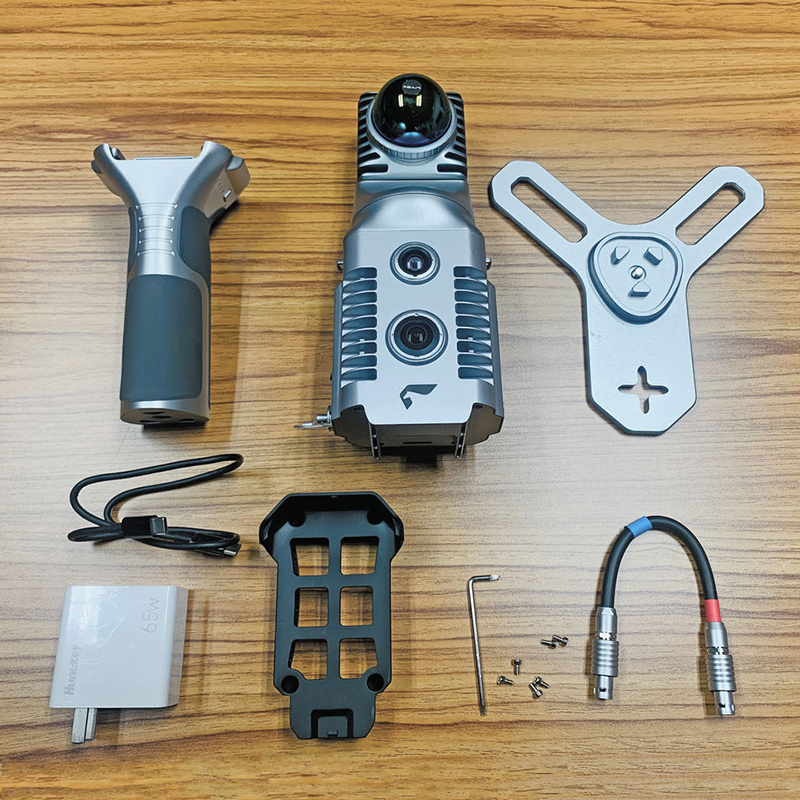

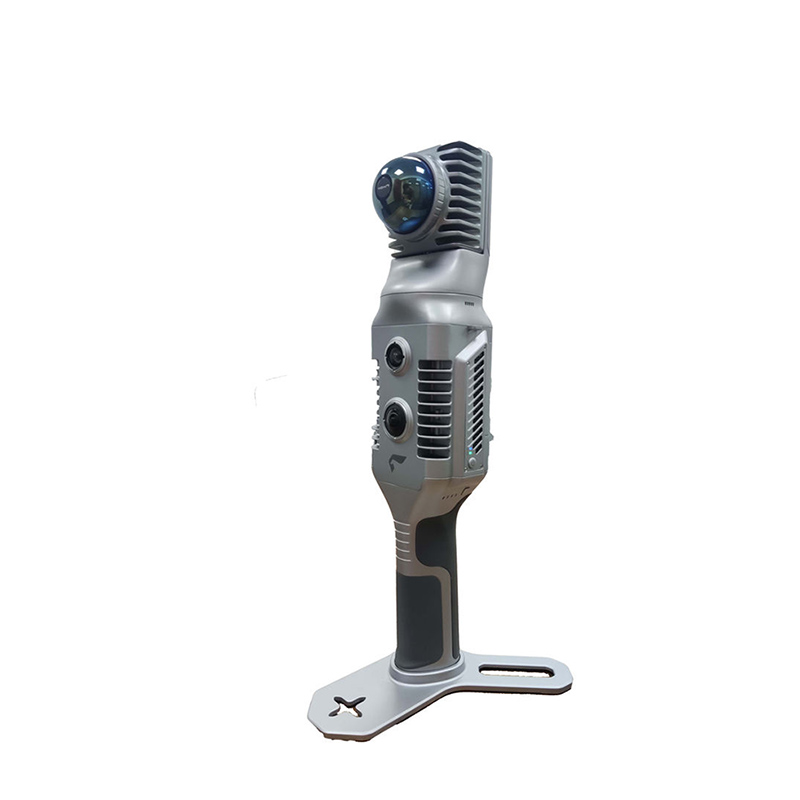

Products Pictures:
