Machine Features:
High-Resolution Industrial Scanning:
Provides fine scanning resolution with accurate X, Y, and Z axis measurement performance.
Fast Scanning Performance:
Supports rapid single scans and full rotational scanning for efficient data acquisition.

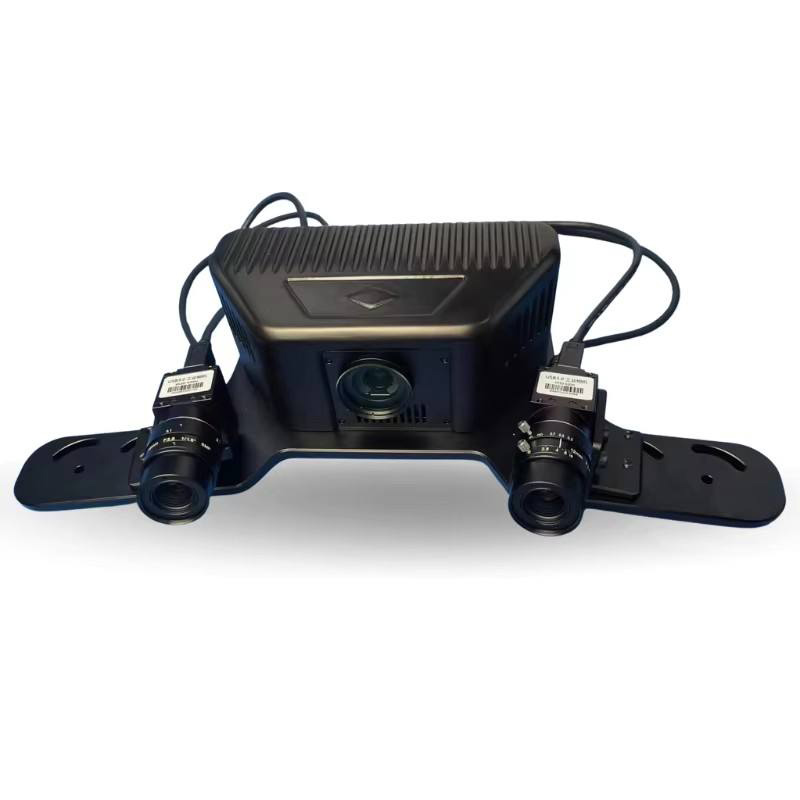

Rotatable Scanning Structure:
Rotating scan mode helps capture complete object geometry with reduced blind spots.
Multiple Splicing Methods:
Supports fully automatic splicing, marker-based splicing, and manual splicing for flexible workflows.
True Color Data Capture:
Captures realistic color information for accurate digital representation of scanned objects.
Wide Measurement Capability:
Suitable for scanning small to medium-sized objects with flexible measurement areas.
High Precision Calibration Design:
Calibration structure ensures stable and consistent scanning accuracy.
Multiple Output Formats:
Supports common 3D data formats for easy integration into modeling and design software.
SDK Support for Integration:
Provides software development kit for customized applications and system integration.
Handheld and Portable Design:
Compact handheld structure enables convenient operation in different working environments.
Products Specification:
| Light Color | White / Blue / Full Color |
| Refresh Rate | 120Hz |
| Brightness | 80–95 lm |
| Scan Pixels | 6.3 million* 2 Black/White/Colorful |
| Scan Model | Fixed |
| Splicing Method | Fully Automatic Splicing/Marker Points Splicing/Manual Splicing |
| X/Y Axis Resolution | 0.07mm@500mm |
| Z Axis Resolution | 0.05mm@500mm |
| Operation Distance | 350 mm |
| Single Measurement Area | 300×180 mm |
| Single Measurement Time | <1s |
| Single Turn Measurement Speed | ≤50s |
| Point Distance | 0.05-0.4 mm |
| Texture Scanning | YES |
| Output Format | OBJ / STL / ASC / PLY / 3MF / P3 |
| Light Source | White / Blue / Full Color LED |
| Operation Temperature | 0-40℃ |
| Humidity Range | 10%-90% |
| Input | USB 3.0 |
| Power supply | DC 12V±0.6V |
| Equipment Size | 450×200×100 mm |
| Box Size | 560×440×310 mm |
| Turntable Bearing | 50Kg /100 Kg |
| Operating system | Win10, Win11(64-Bit) |
Products Pictures:
