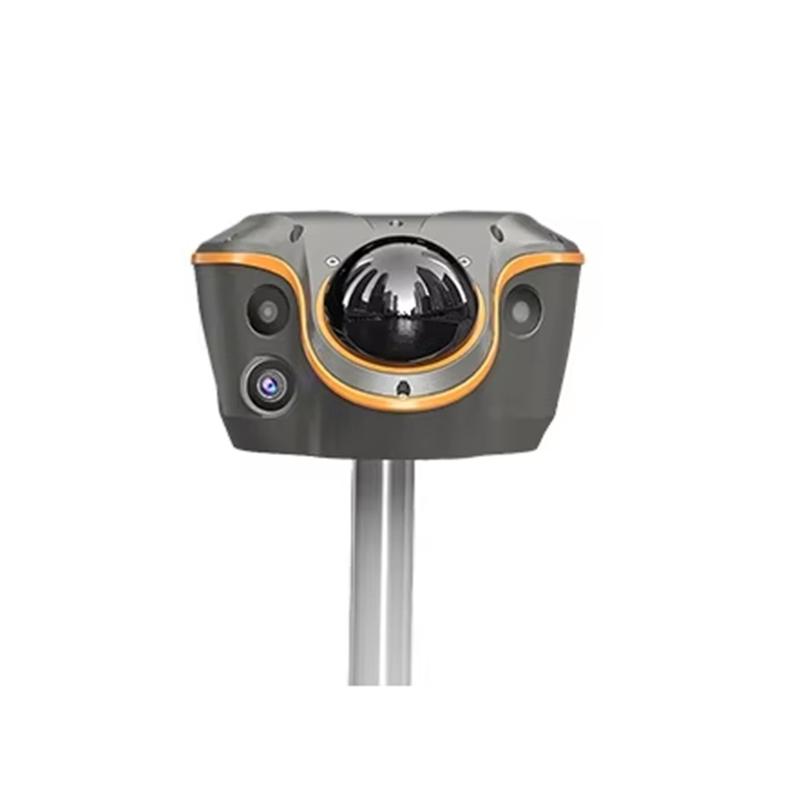

Laser positioning scanner with GNSS and vision fusion for engineering applications

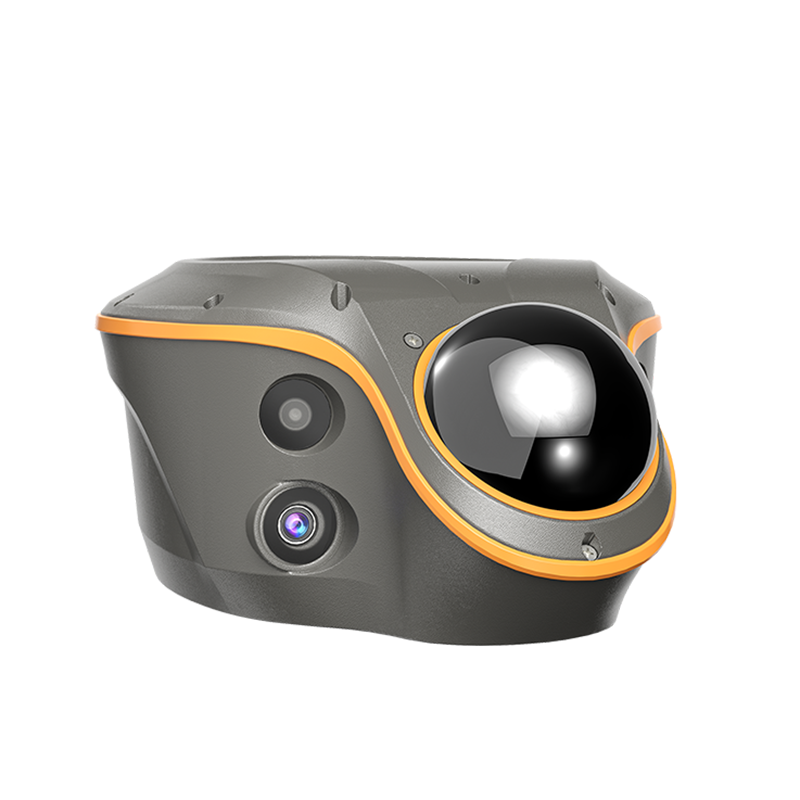

GNSS laser scanner used for stable positioning in complex and obstructed environments

High-Precision Non-Contact 3D Laser Measurement Scanner with Vision Fusion

This high-precision non-contact 3D laser measurement scanner is designed for accurate positioning and spatial data acquisition in complex and obstructed environments. By integrating laser scanning, multi-constellation GNSS positioning, and visual sensing technology, the device enables reliable measurement where traditional positioning solutions struggle.

The system combines 3D laser perception with real-time satellite signal analysis, automatically filtering unreliable signals caused by multipath interference and obstructions. This allows stable, repeatable measurements in dense urban areas, forests, narrow passages, and other challenging environments.

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Machine Features:

Non-Contact 3D Laser Measurement:

Captures surrounding spatial information without physical contact, suitable for complex and obstructed sites.

Laser–Vision Fusion Technology:

Combines 3D laser sensing and visual data to enhance positioning stability and spatial perception.

Multi-Constellation & Multi-Frequency Support:

Supports GPS, BDS, GLONASS, GALILEO, QZSS, SBAS for robust signal availability.

Advanced Anti-Interference Performance:

Automatically identifies and eliminates unreliable satellite signals caused by multipath and obstructions.

Stable High-Accuracy Positioning:

Maintains consistent coordinate output even in dense urban areas, forests, and narrow environments.

Dual-Camera AR Measurement Support:

Enables real-scene layout and intuitive measurement through visual-assisted positioning.

High-Speed Data Acquisition:

Laser data output up to hundreds of thousands of points per second for efficient field operation.

Rugged & Field-Ready Design:

High-level dustproof and waterproof protection for outdoor and harsh working conditions.

Flexible Connectivity & Storage:

Supports wireless communication and expandable data storage for long-duration projects.

Products Specification:

Item	Specification
Product Type	Non-Contact 3D Laser Measurement Scanner
Measurement Technology	Laser + Vision Fusion
Positioning System	Multi-Constellation GNSS
Supported GNSS	GPS, BDS, GLONASS, GALILEO, QZSS, SBAS
Channels	1408
Laser Data Output Rate	Up to 860,000 points/second
Position Output Frequency	1 Hz – 20 Hz
Absolute Measurement Accuracy	Up to 5 cm in complex environments
Protection Rating	IP67 / IP68
Wireless Communication	Bluetooth, WiFi, Cellular
Operating Temperature	-45 ℃ to +75 ℃
Data Storage	64 GB internal, expandable up to 1 TB
Output Data Format	RTCM 2.x / RTCM 3.x
Operating System	Embedded system
Application Environment	Urban areas, forests, narrow spaces, obstructed terrain
