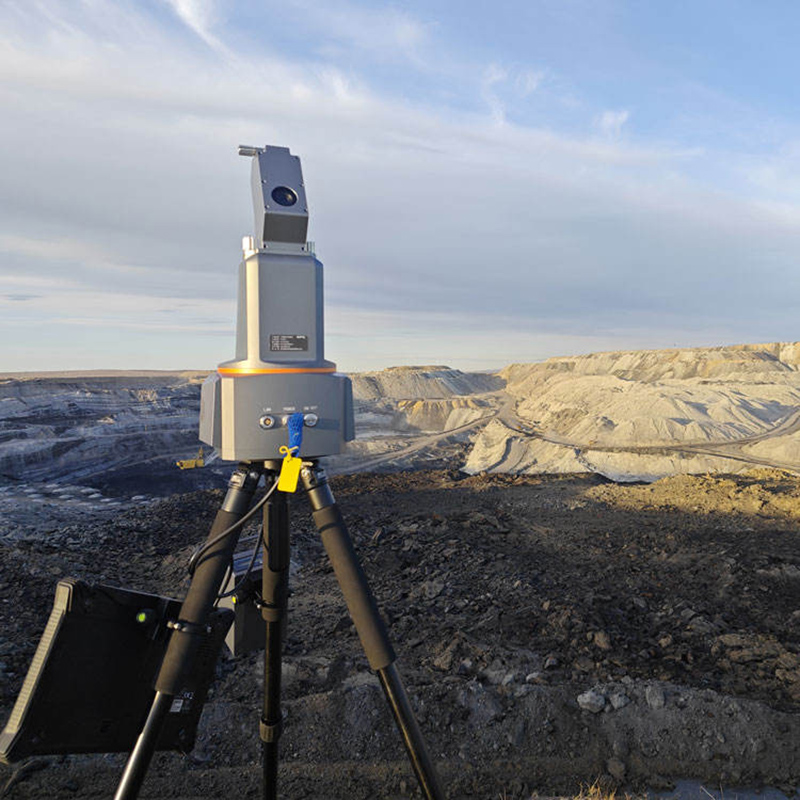

Long range laser scanner used for large scale outdoor mining environments

360 degree terrestrial laser scanner for large area data acquisition

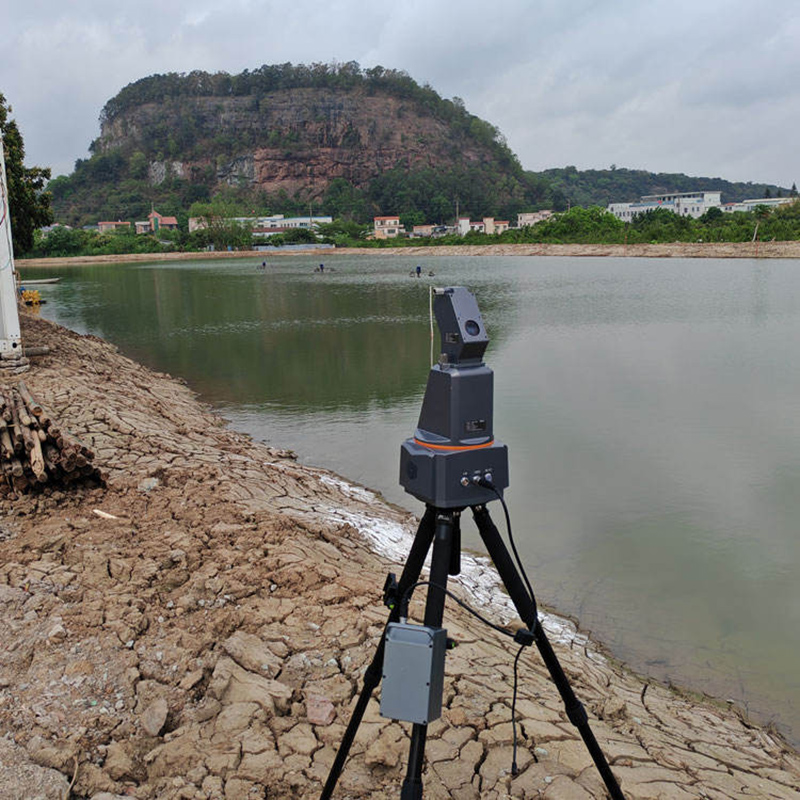

Construction laser scanner for infrastructure and terrain modeling

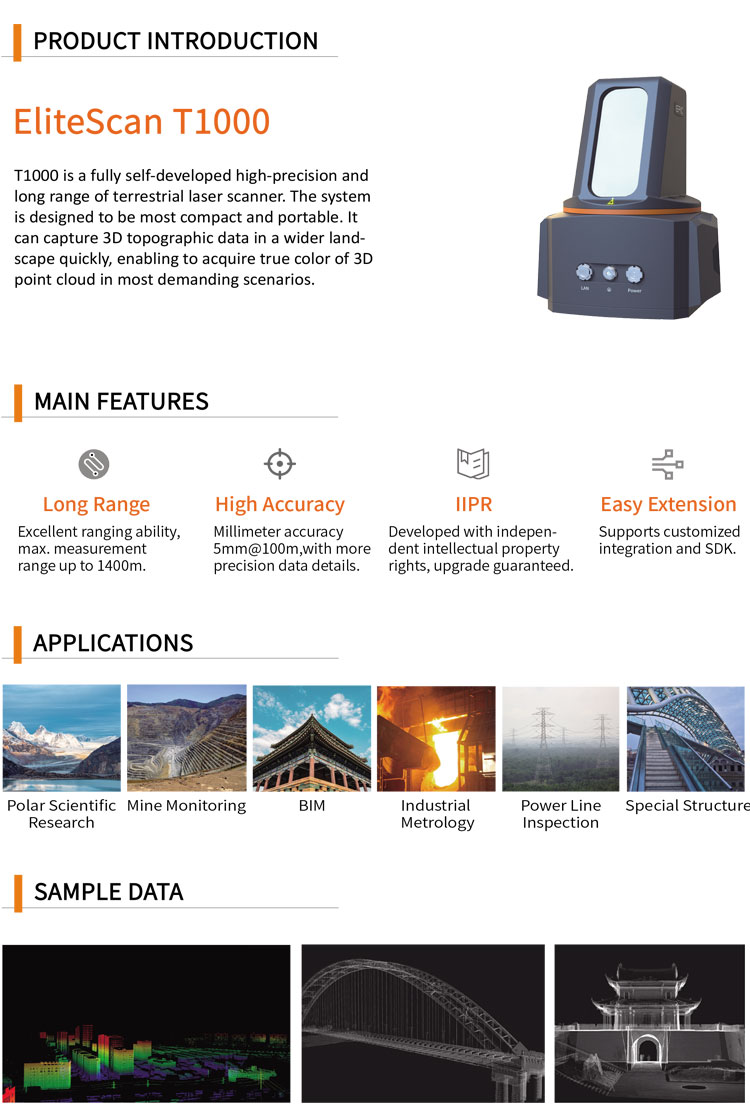

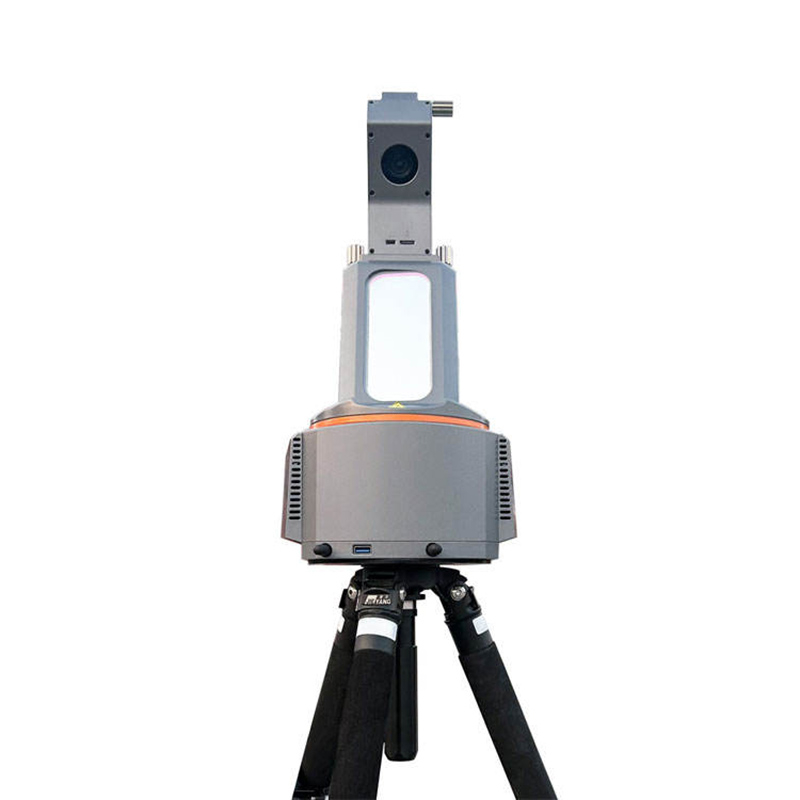

Long-Range Terrestrial 3D Laser Scanner for Mining and Construction Applications

This long-range terrestrial 3D laser scanner is designed for large-scale outdoor data acquisition in mining, construction, and infrastructure projects. With ultra-long measurement capability and full 360° horizontal field of view, it enables rapid and accurate capture of terrain, structures, and complex environments over extended distances.

The scanner combines high point density, pulse ranging technology, and millimeter-level accuracy to deliver detailed 3D point cloud data even in demanding scenarios.

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Machine Features:

Ultra-Long Measurement Range:

Supports long-distance scanning up to 1500 m and extended configurations up to 3000 m for large-scale sites.

High-Precision Terrestrial Scanning:

Delivers millimeter-level accuracy, capturing fine surface details for engineering-grade analysis.

Full 360° Field of View:

Horizontal 360° and vertical wide-angle coverage enable complete scene acquisition from a single setup point.

High-Density Point Cloud Output:

Up to millions of points per second for detailed terrain and structural modeling.

Pulse Ranging Technology:

Ensures stable long-distance measurement performance in outdoor environments.

Portable & Rugged Design:

Lightweight structure suitable for field deployment in mining and construction conditions.

Flexible Integration Capability:

Supports customized system integration and SDK expansion for professional workflows.

Suitable for Harsh Engineering Scenarios:

Designed for large landscapes, open-pit mines, construction sites, and infrastructure projects.

Products Specification:

System Parameter	Weight	7kg
	Main Dimension	L210xW163xH270mm
	External Power Supply	Input Voltage 18~33VDC
	Power Consumption	Typical 50W
	Data Communication Interface	GigE
	Humidity	Non-condensing
	Operating Temperature	-20℃~+50℃
	Storage Temperature	-30℃~+60℃
	Dual-axis Tilt Seneor Range	±5°
Laser Scanning Unit	Ranging Method	Pulse Ranging
	Laser Product Classification	Classl
	Laser Pulse Repetition Rate	100~2000 kHz
	Max.Measuring Range	1500m.3000m
	Min.Measuring Range	1.5m
	Ranging Precision	3mm@100m
	Accuracy	5mm@100m
	Vertical FoV	100°(-40°~+60°)
	Horizontal FoV	360°
	Scan Speed	Vertical 3-150lines/sec
	Scan Speed	Horizontak max18%sec
	Angle Measurement Resolution	0.001°
Camera Unit (Optional)	Effective Pixels	Approximately 100 Million
	FoV	360°x110°
	Weight	Approximately 680g
	Storage	Built-in SD Card 128GB
	Expandable	RTKMechanical Interface
