Machine Features:

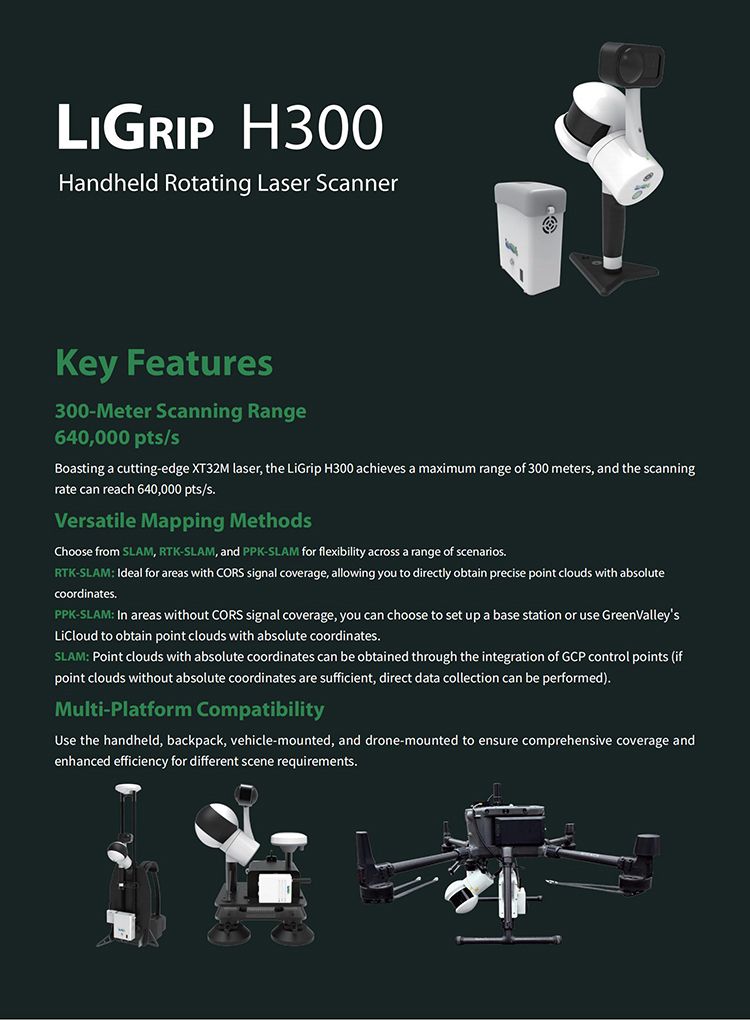

Long-Range LiDAR Scanning:
Up to 300 m scanning distance with high-density point cloud output for large outdoor scenes.
High-Speed Data Capture:
Scanning rate up to 640,000 points per second, enabling fast field operations and reduced survey time.
Multiple Mapping Modes:
Supports SLAM, RTK-SLAM, and PPK-SLAM to adapt to different GNSS conditions and project requirements.
High Accuracy Output:
Relative accuracy up to 1 cm, suitable for engineering-grade surveying and asset inspection.

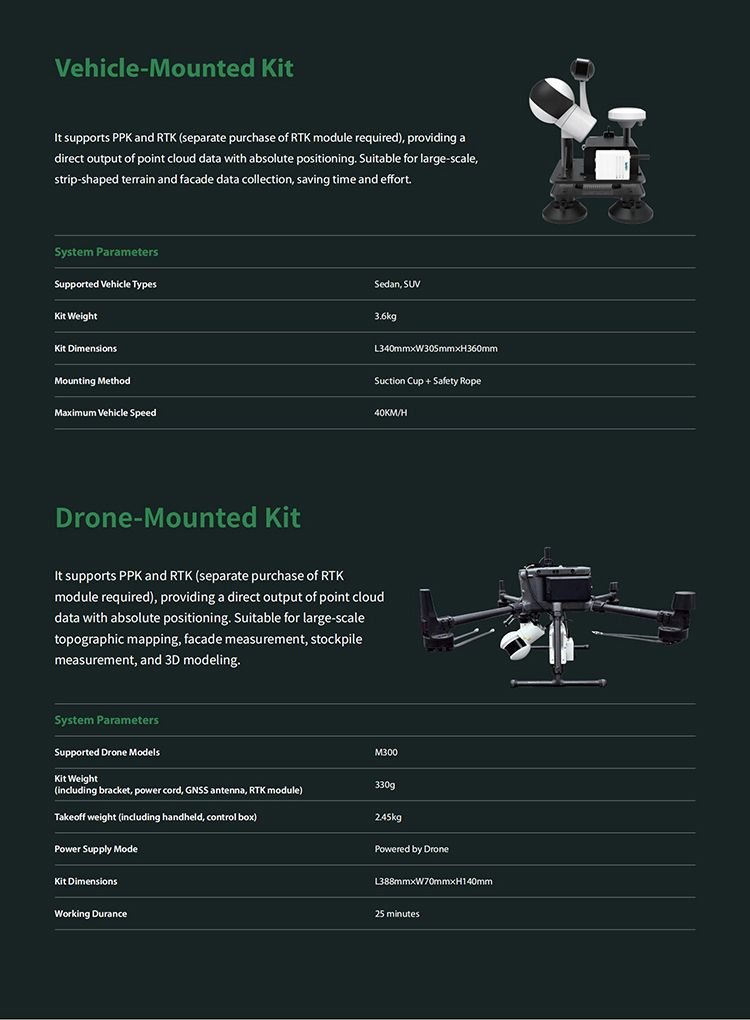

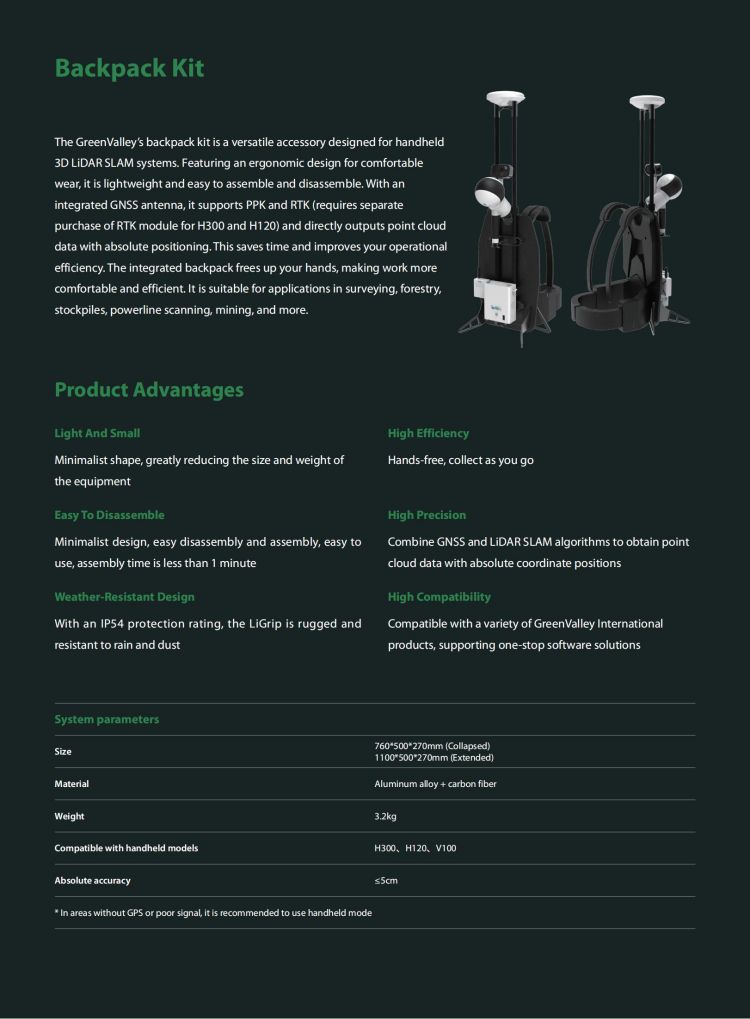

Multi-Platform Deployment:
Compatible with handheld, backpack, vehicle-mounted, and drone-mounted configurations for flexible use.

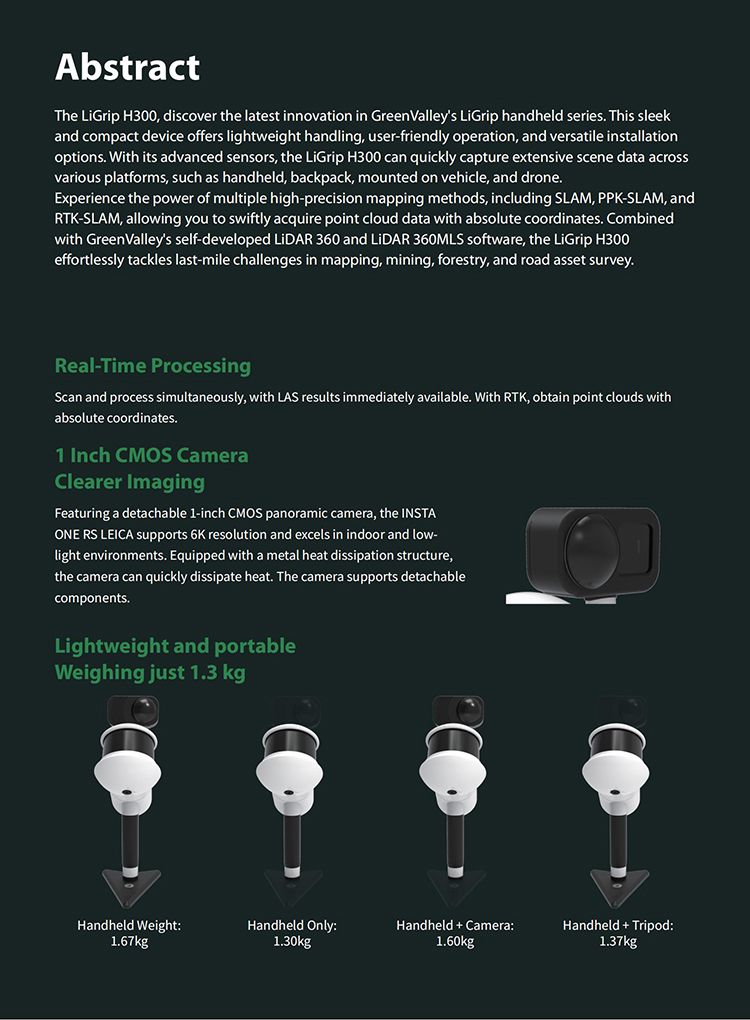

Panoramic Visual Integration:
Equipped with a high-quality panoramic camera for synchronized visual and LiDAR data acquisition.
Large Internal Storage:
Built-in 512 GB storage supports long-duration scanning without frequent data offloading.
Rugged & Portable Design:
Compact structure and long battery life enable efficient operation in outdoor and complex environments.
Products Specification:
| Item | Specification |

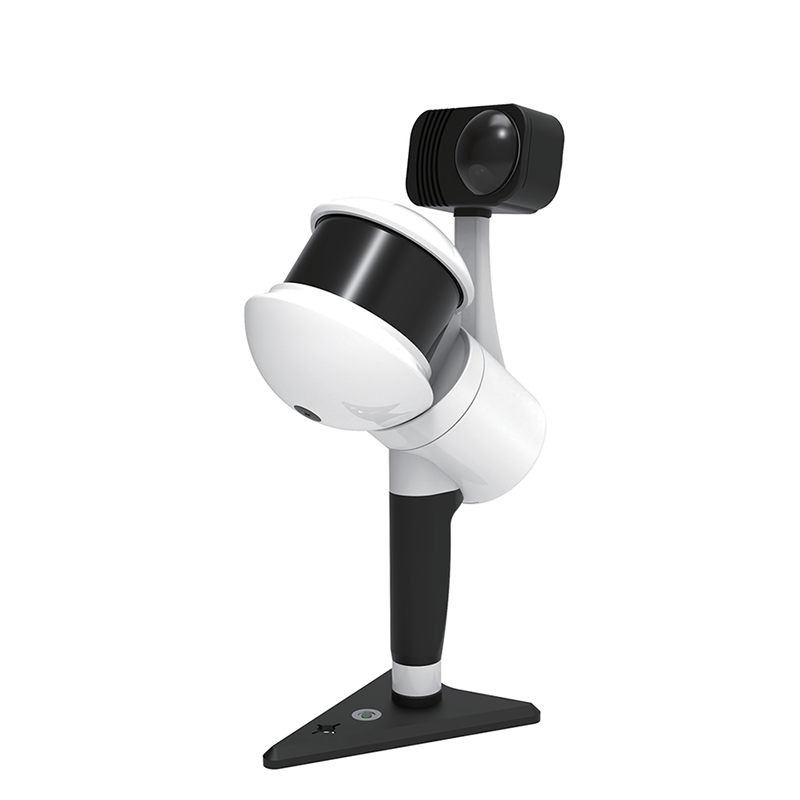

| Product Type | Handheld LiDAR 3D Scanner |
| Scanning Technology | Rotary LiDAR |
| Scanning Range | Up to 300 m |
| Scan Rate | Up to 640,000 points/s |
| Mapping Methods | SLAM / RTK-SLAM / PPK-SLAM |
| Relative Accuracy | Up to 1 cm |
| Camera | Panoramic camera |
| Data Output Format | LAS, LiData |
| Interfaces | USB, Ethernet |
| Storage Capacity | 512 GB |
| Battery Life | Approx. 3 hours (single battery) |
| Operating Voltage | 15.2 V |
| Deployment Modes | Handheld / Backpack / Vehicle-mounted / Drone-mounted |
| Customized Support | OEM / ODM / OBM |
| Warranty | 3 Years |

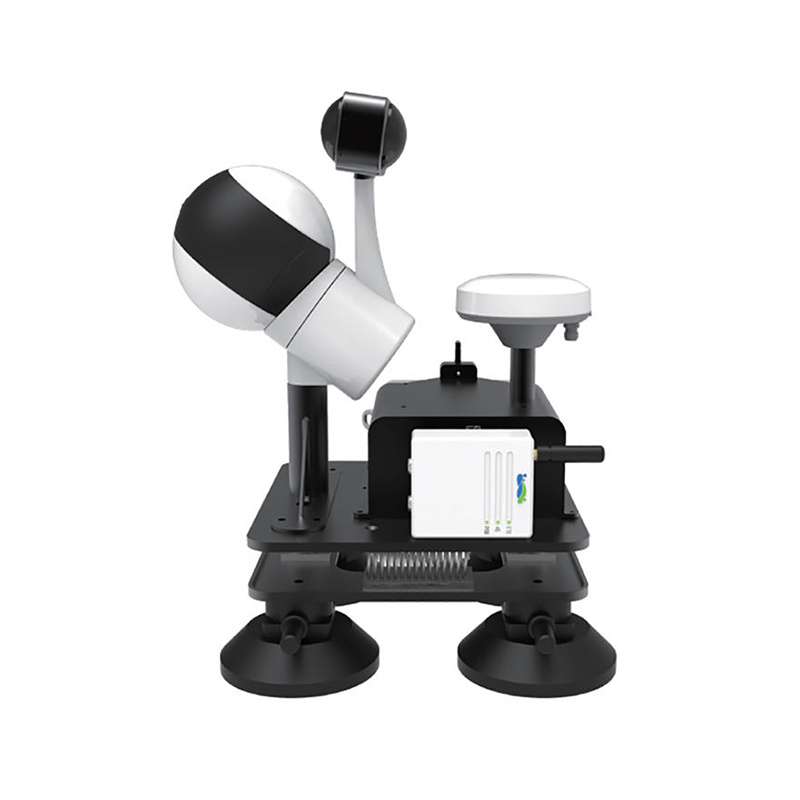

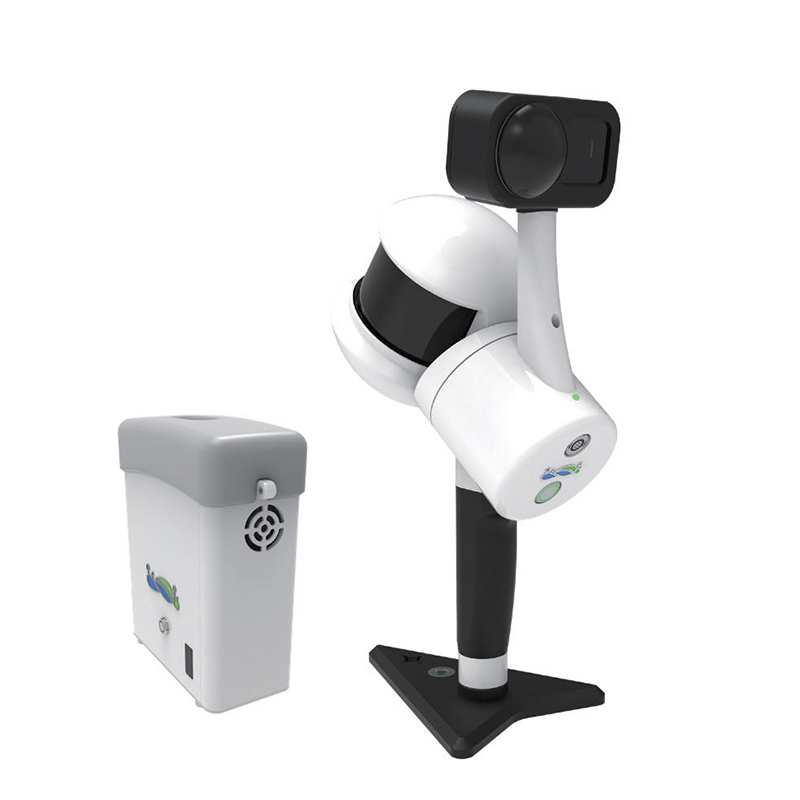

Products Pictures:
Machine Features:
Long-Range LiDAR Scanning:
Up to 300 m scanning distance with high-density point cloud output for large outdoor scenes.
High-Speed Data Capture:
Scanning rate up to 640,000 points per second, enabling fast field operations and reduced survey time.
Multiple Mapping Modes:
Supports SLAM, RTK-SLAM, and PPK-SLAM to adapt to different GNSS conditions and project requirements.
High Accuracy Output:
Relative accuracy up to 1 cm, suitable for engineering-grade surveying and asset inspection.
Multi-Platform Deployment:

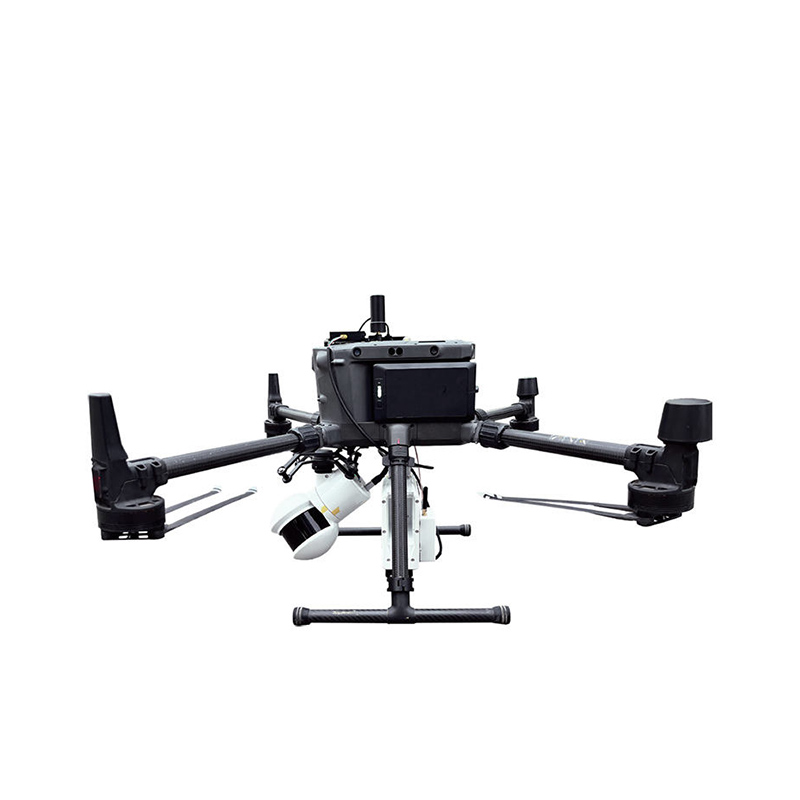

Compatible with handheld, backpack, vehicle-mounted, and drone-mounted configurations for flexible use.
