Machine Features:
High-Precision Industrial Measurement:
Achieves up to 0.02 mm accuracy, suitable for metrology-grade inspection and dimensional analysis.
High-Speed Data Capture:
Measurement rate up to 1,360,000 points per second for efficient scanning of complex geometries.
Advanced Blue Laser Technology:
Multi-line blue laser system ensures stable scanning on reflective and dark surfaces.
Photogrammetry Supported:
Enables large-volume measurement with improved volumetric accuracy when combined with reference systems.
Wireless & Portable Operation:
Supports wireless computing units for flexible on-site and workshop use.
Reverse Engineering Ready:
Compatible with mainstream CAD and inspection software for seamless data processing.
Wide Industrial Application Range:
Suitable for quality control, product development, mold inspection, and part verification.
Products Specification:
| Item | Specification |

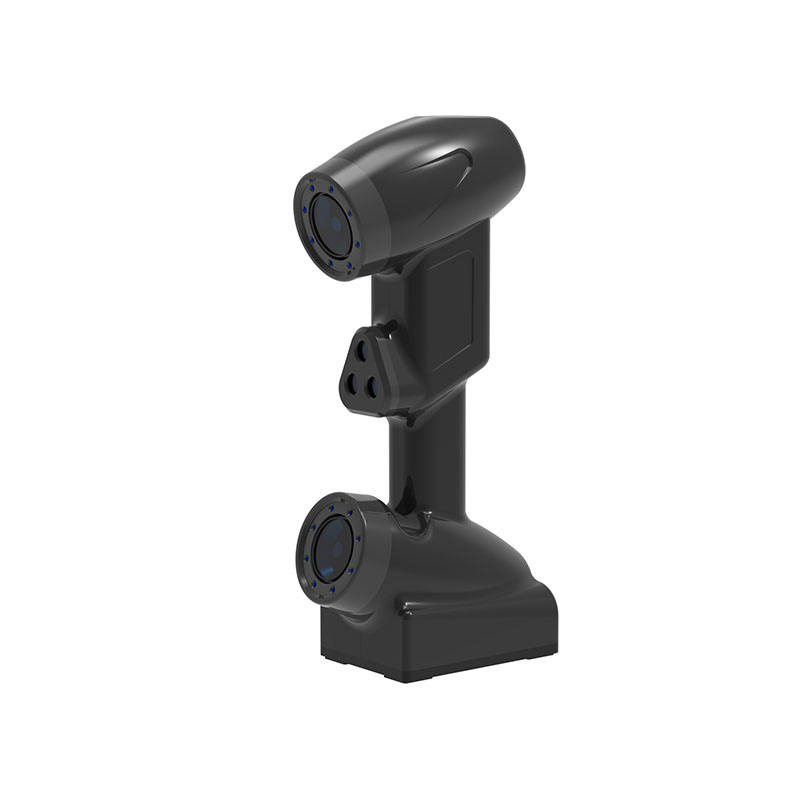

| Scanner Type | Handheld Industrial 3D Scanner |
| Measurement Accuracy | Up to 0.02 mm |
| Volumetric Accuracy | 0.02 mm + 0.025 mm/m |
| Volumetric Accuracy (with photogrammetry) | 0.02 mm + 0.015 mm/m |
| Measurement Rate | Up to 1,360,000 points/sec |
| Scan Area | 350 mm × 280 mm |
| Laser System | 22 blue cross laser lines + 1 blue laser line |
| Laser Safety Class | Class II (eye-safe) |
| Minimum Resolution | 0.02 mm |
| Standard Working Distance | 350 mm |
| Depth of Field | 250 mm |
| Wireless Operation | Supported |
| Photogrammetry | Supported |
| Round Hole Measurement | Supported |
| Data Transmission | USB 3.0 / WiFi |
| Compatible Software | Geomagic, PolyWorks, NX, CATIA, SolidWorks, Pro/E, Inventor, Alias, 3ds Max, Maya, Solid Edge |
| Operating Temperature | -20 °C to 40 °C |
| Operating Humidity | 10% – 90% RH |
Products Pictures:
