Machine Features:
Dual Scanning Modes: Blue 7-line parallel laser + infrared structured light for versatile industrial applications.
Ultra-High Accuracy: Laser mode reaches up to 0.02 mm with fine 0.1 mm laser line width.

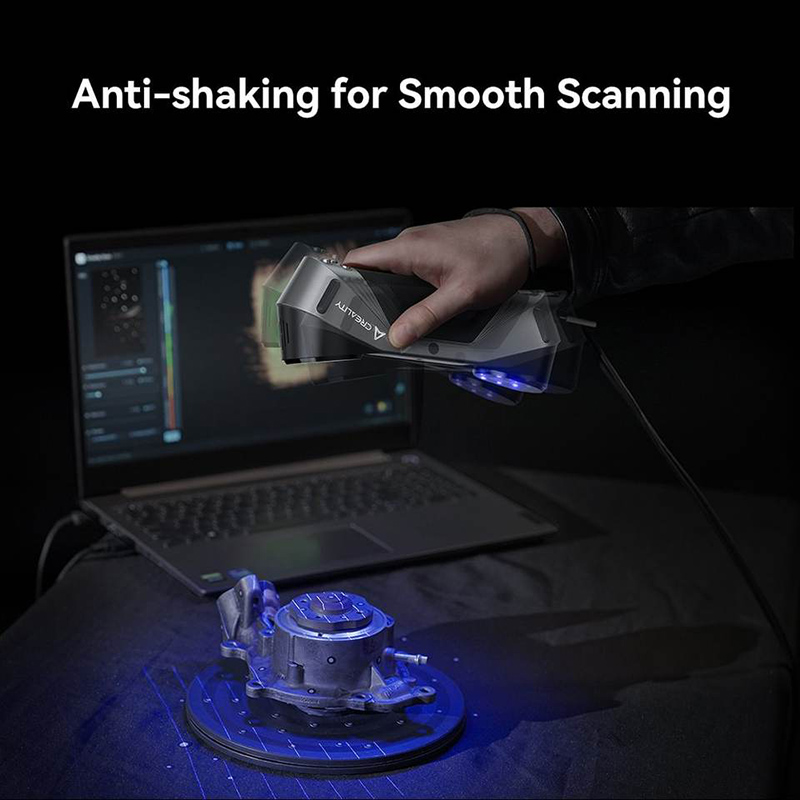

Wide Object Compatibility: Supports scanning sizes from 5×5×5 mm to 2000×2000×2000 mm.
High-Speed Capture: Laser up to 60 fps, infrared up to 20 fps for smooth and rapid workflows.
True 24-Bit Color Mapping: Delivers highly detailed textured models for visual-critical work.
Markerless Scanning (IR Mode): Feature-rich objects can be scanned without markers.
Face & Body Algorithm: Captures human facial and body data in as fast as 2 minutes.
Wide Working Distance: Up to 1000 mm scanning depth depending on mode.
Portable & Lightweight: Compact 372 g design with Type-C USB3.0 high-speed data interface.
Cross-Platform Compatibility: Supports Windows & macOS systems.
Wireless-Ready: Compatible with future wireless scanning accessories.
Products Specification:
| Item | Specification |
| Scanning Modes | Blue Laser (7-line laser) / NIR Infrared Structured Light |
| Accuracy (Blue Laser) | ≤0.02 mm @ 100 mm |
| 3D Resolution (Blue Laser) | 0.02–2 mm |
| Scanning Speed (Blue Laser) | Up to 60 fps |
| Minimum Scan Volume (Blue) | 5×5×5 mm |
| Single Capture Range (Blue) | 270×170 mm @ 300 mm |
| Working Distance (Blue) | 150–400 mm |
| Color Mapping (Blue) | Supported |
| Alignment Method (Blue) | Marker-based |
| Accuracy (NIR Mode) | ≤0.1 mm |
| 3D Resolution (NIR) | 0.1–2 mm |
| Scanning Speed (NIR) | Up to 20 fps |
| Single Capture Range (NIR) | 930×580 mm @ 1000 mm |
| Working Distance (NIR) | 170–1000 mm |
| Alignment Methods (NIR) | Marker / Geometry / Texture |
| 3D Camera Resolution | 1920×1200 |
| White LED Lighting | 12 LEDs |
| Infrared Marker LEDs | 12 LEDs |
| Laser Class | Class I (Eye Safe) |
| IMU | Built-in |
| Output Formats | OBJ / STL / PLY |
| Data Interface | Type-C / USB 3.0 |
| Input Power | 12V 2A |
| Device Size | 215×50×74 mm |
| Device Weight | 372 g |
| Calibration Board | High-precision glass calibration board |
| Wireless Scanning | Supported with upcoming accessories |
| System Compatibility | Windows / macOS |
| Operating Temperature | −10°C ~ 40°C |
| Operating Humidity | 0–90% RH |
Products Pictures:
