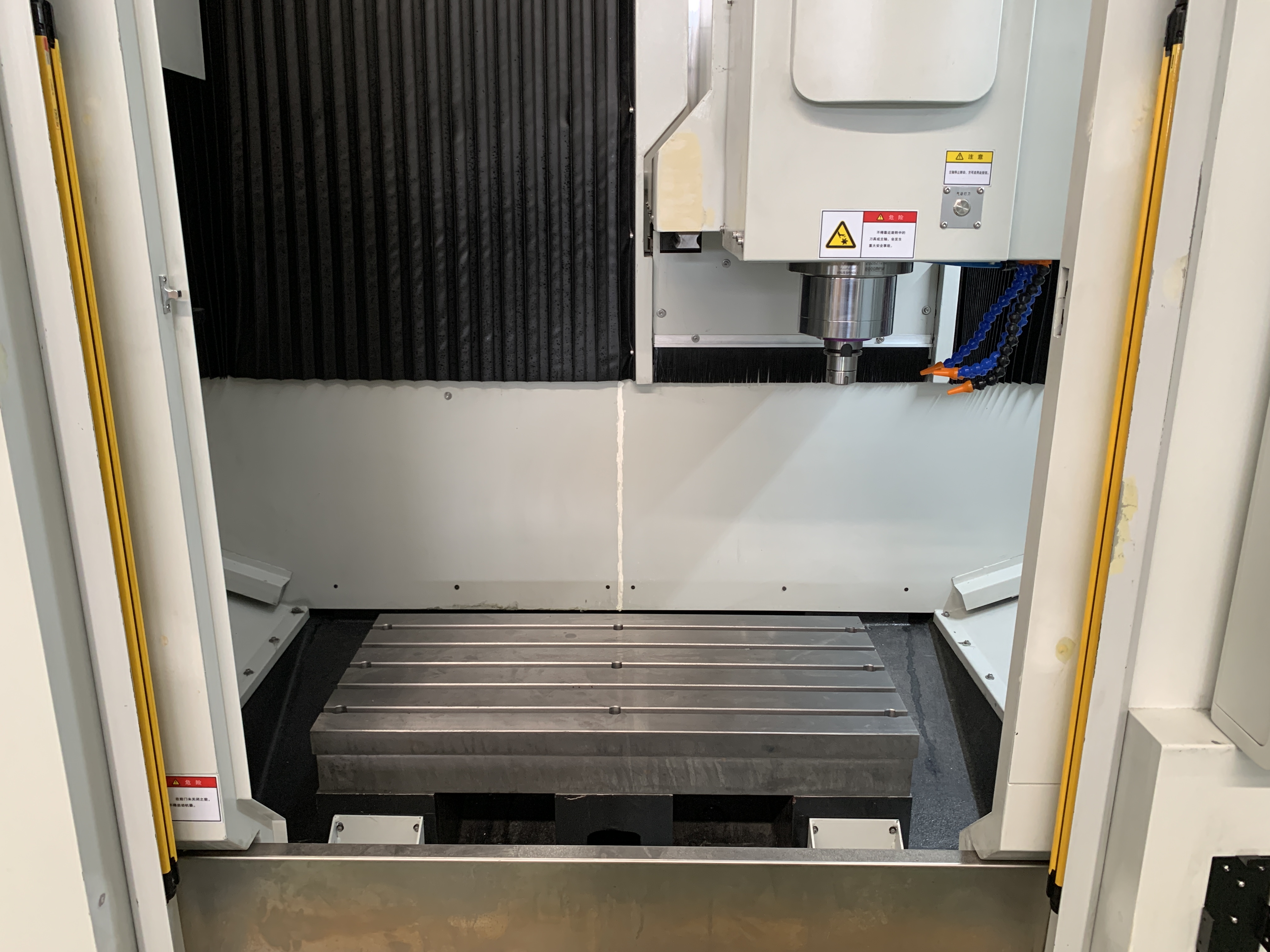

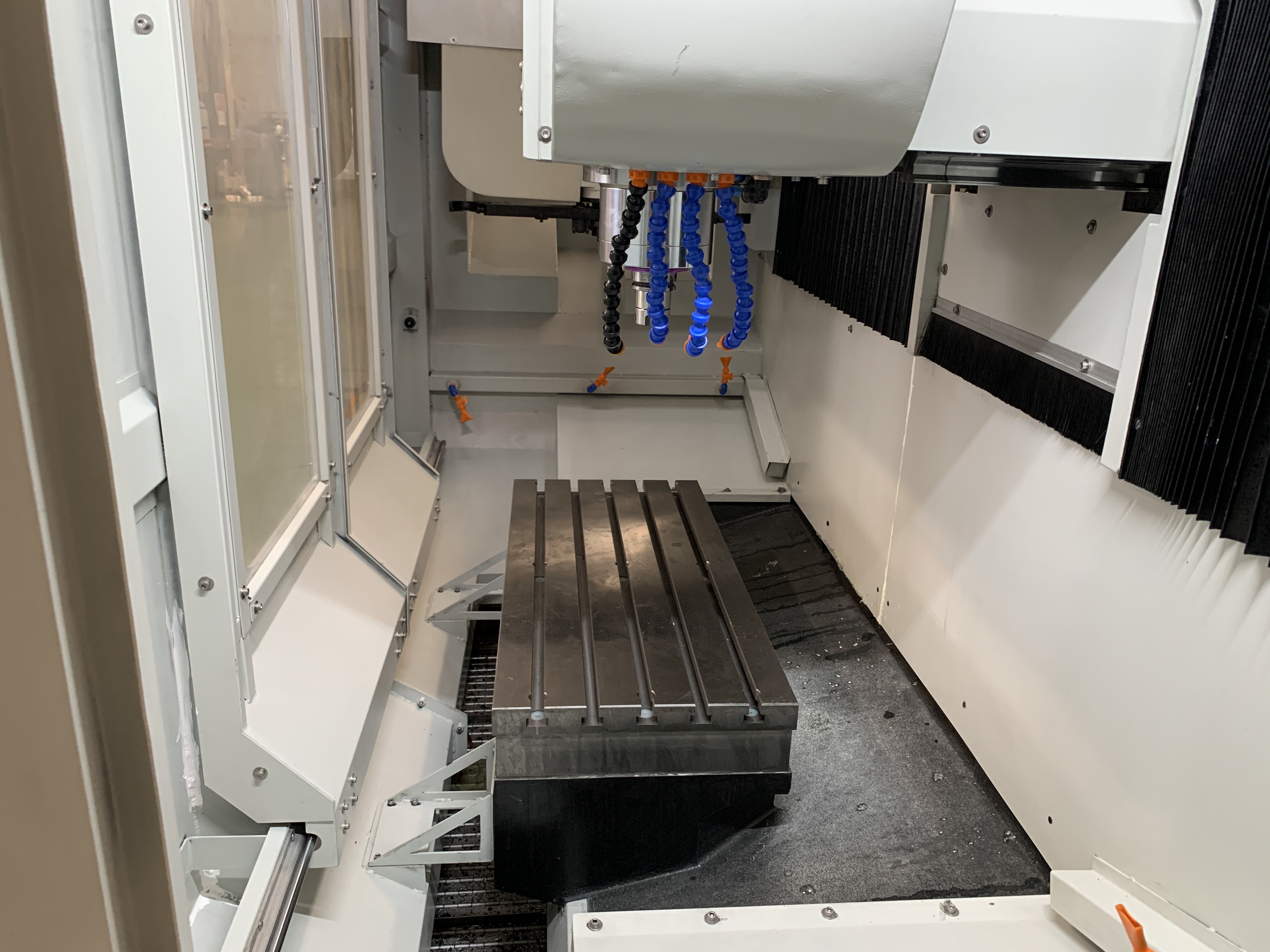

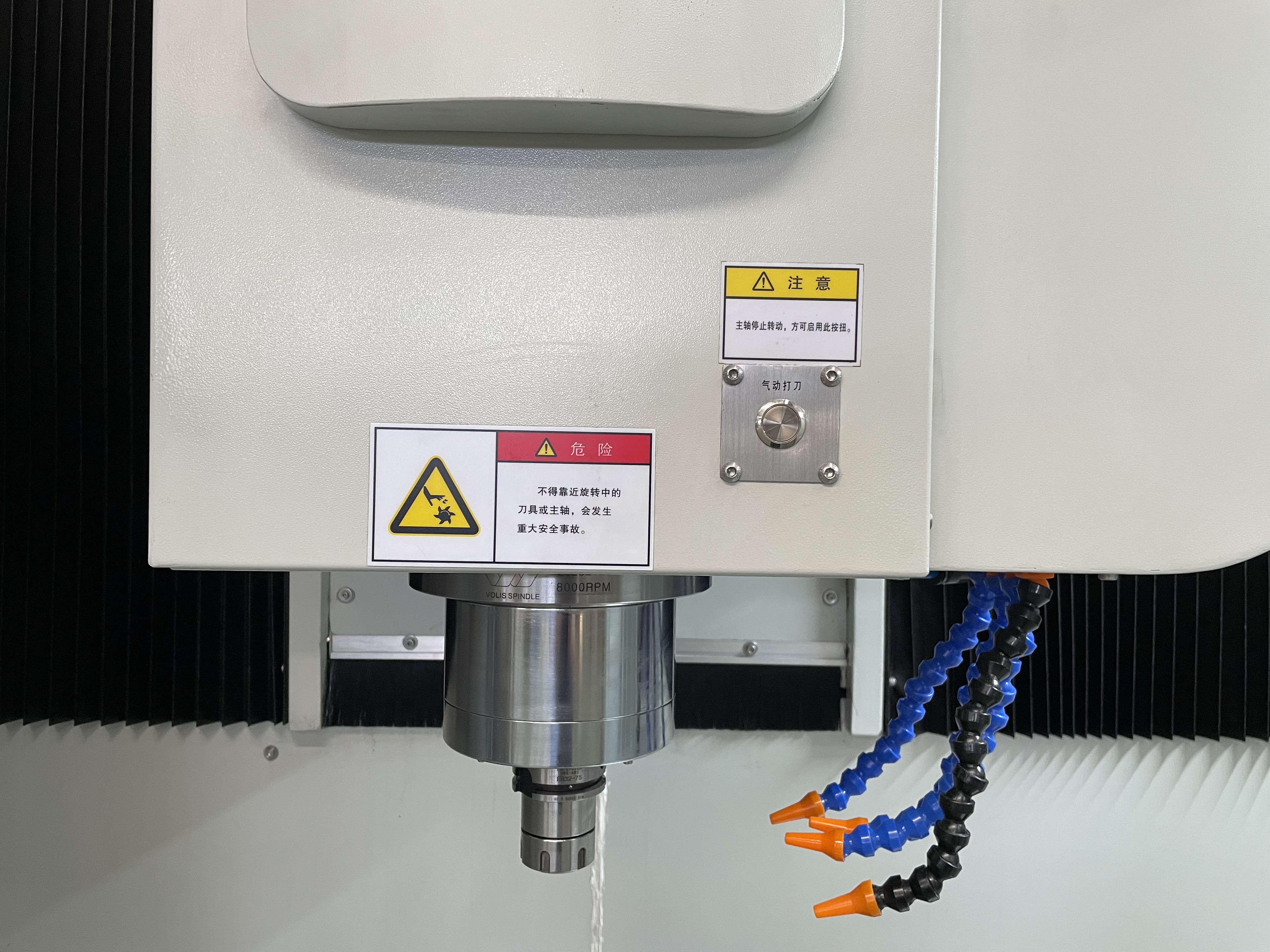

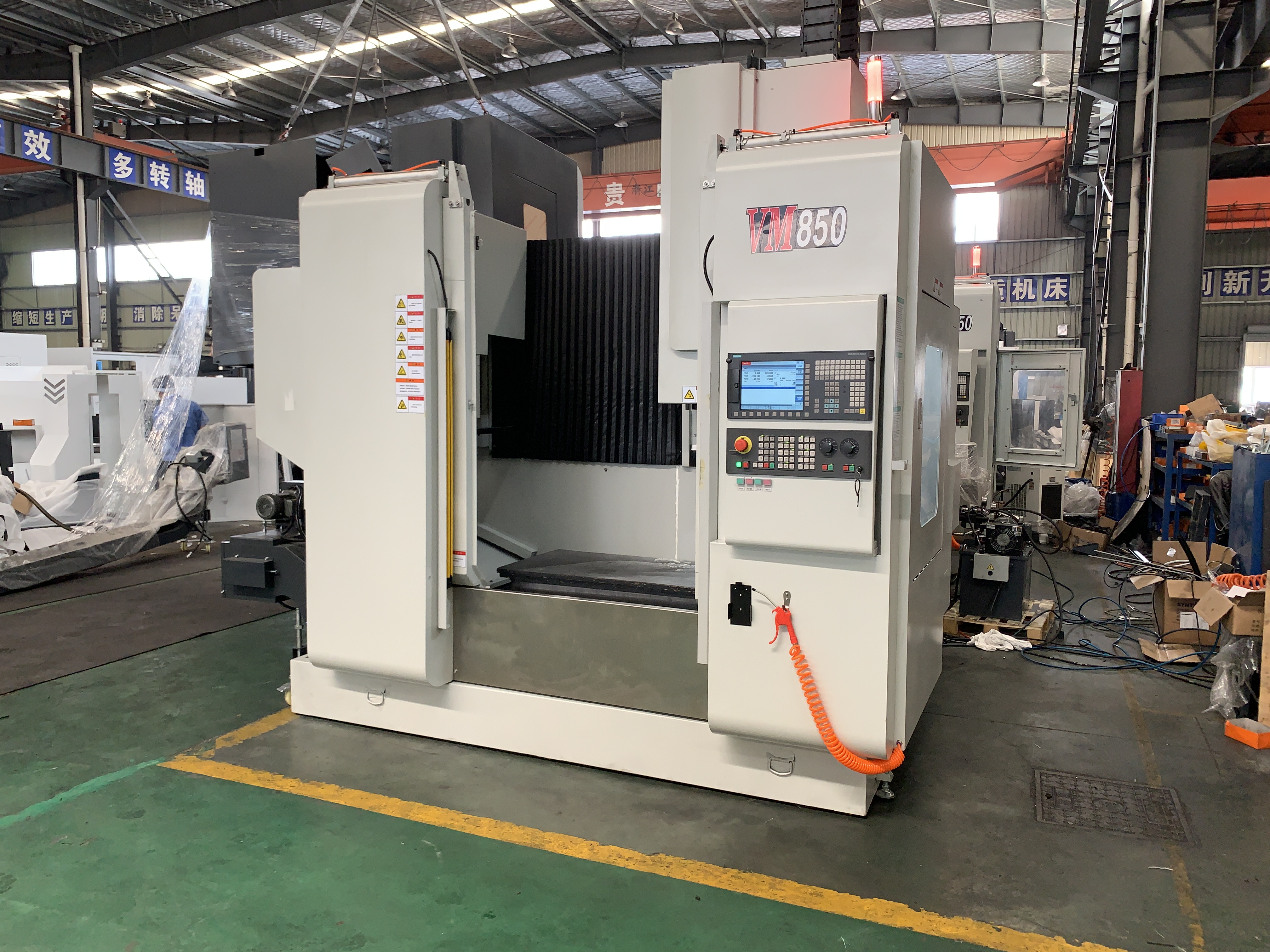

The VM855 Moving-Column Machining Center is a high-precision, high-rigidity CNC machine that features a fully moving-column structure, ensuring a stationary worktable for reduced vibration and enhanced machining stability. Inspired by advanced Japanese and American machine tool designs, it incorporates a large-span three-axis guideway structure and an X-axis six-slider design, significantly improving load-bearing capacity and rigidity. Equipped with a high-torque spindle motor, it supports heavy-duty machining and features a large inclined guideway protective cover, optimizing chip evacuation and extending machine life. The VM855 is highly adaptable for automation, seamlessly integrating with gantry robots or articulated robotic arms to facilitate smart manufacturing.
The VM855 Moving-Column Machining Center is widely used in precision component manufacturing, mold processing, automotive production, aerospace, and smart equipment manufacturing. It is particularly suitable for large workpieces and high-rigidity machining tasks, such as precision molds, structural components, and complex contoured parts. With its stable moving-column structure and seamless automation integration, it is an ideal choice for high-efficiency production lines.

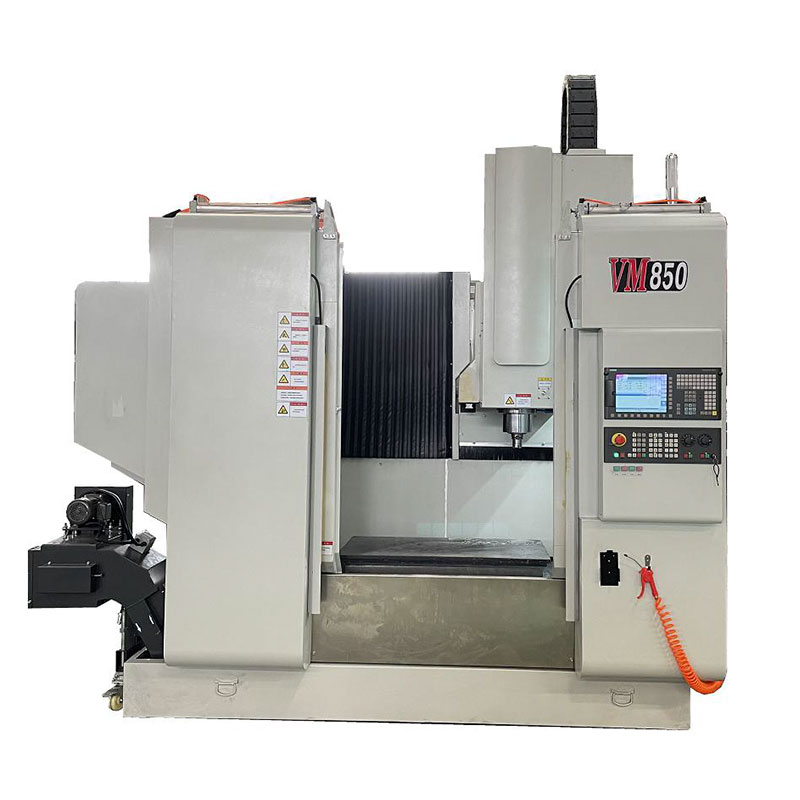

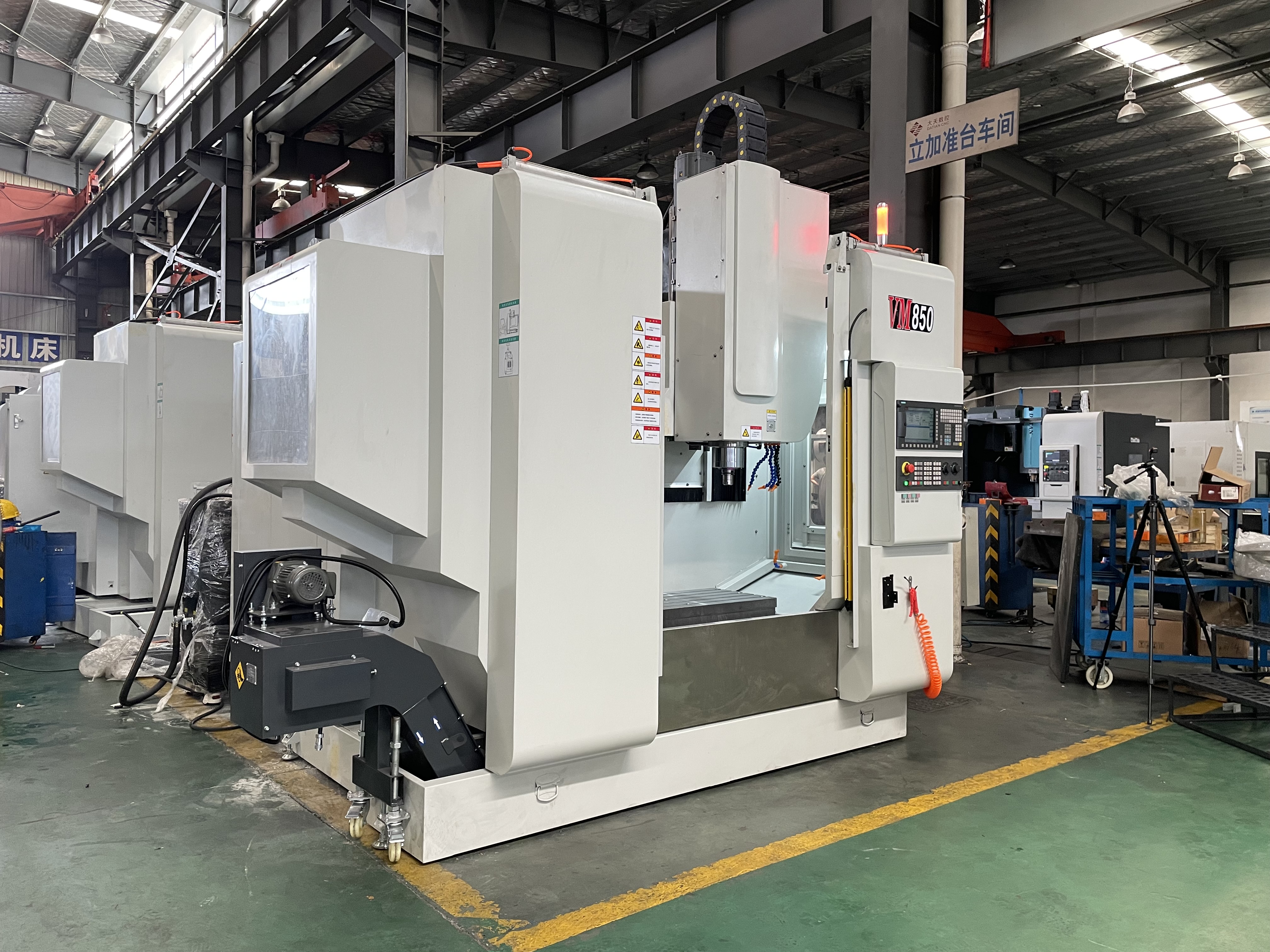

Model | UNLT | VM850 | VM850EV | VM1160 |
Travel | ||||
X-Axis Travel (mm) | 800 | 800 | 800 | 1100 |
Y-Axis Travel (mm) | 500 | 500 | 500 | 600 |
Z-Axis Travel (mm) | 500 | 500 | 500 | 600 |
Spindle Nose to Worktable Distance (mm) | 170-670 | 170-670 | 170-670 | 150-750 |
Spindle Center to Column Guideway Distance (mm) | 220 | 220 | 220 | 220 |
Worktable | ||||
Worktable Size (mm) | 1000×450 | 1300×800 (Central Exchange Table) | 1300×800 (Central Exchange Table) | 1200×600 |
Maximum Load Capacity (Kg) | 1500 | 600×2 | 600×2 | 2000 |
T-Slot Width (mm) | 18×5×100 | 18×5×100 | 18×5×100 | 18×5×100 |
Spindle | ||||
Maximum Spindle Speed (rpm) | 8000 | 8000 | 8000 | 8000 |
Spindle Taper | BT40 | BT40 | BT40 | BT40 |
Feed System | ||||
X, Y, Z Rapid Traverse Speed (m/min) | 48/48/48 | 48/48/48 | 48/48/48 | 36/36/36 |
X, Y, Z Cutting Feed Speed (mm/min) | 1-10000 | 1-10000 | 1-10000 | 1-10000 |

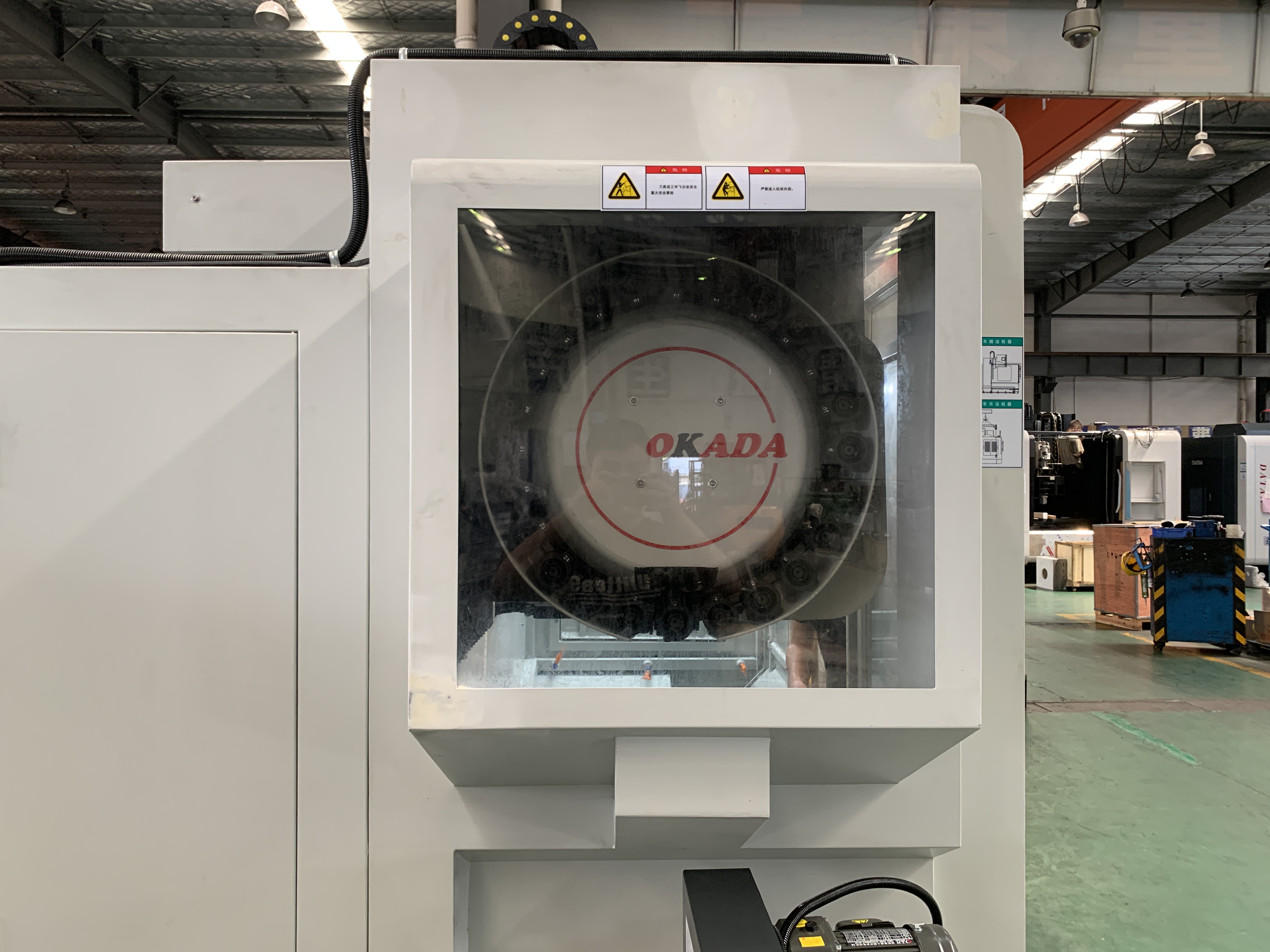

Automatic Tool Changer System | ||||
Tool Magazine Capacity (Pcs) | 24 | 24 | 24 | 24 |
Maximum Tool Diameter (mm) | Ø78 | Ø78 | Ø78 | Ø78 |
Maximum Tool Length (mm) | 300 | 300 | 300 | 300 |
Tool Change Time (T-T/C-C) (sec) | 3.8 | 3.8 | 3.8 | 3.8 |
Motor System | ||||
Spindle Motor Power (Kw) | 7.5/11 | 7.5/11 | 7.5/11 | 11/15 |
X/Y/Z Axis Servo Motor Power (Kw) | 3/3/3 | 3/3/3 | 3/3/3 | 3/3/3 |
Precision | ||||
Positioning Accuracy (mm) | 0.005 | 0.005 | 0.005 | 0.005 |
Machine Dimensions & Power | ||||
Machine Dimensions (L×W×H) (mm) | 3300×2700×3400 | 3900×3300×3500 | 3900×3300×3500 | 4000×3100×3600 |
Machine Weight (Kg) | 10000 | 9500 | 9500 | 12000 |
Power Requirement (KVA) | 25 | 30 | 30 | 30 |
