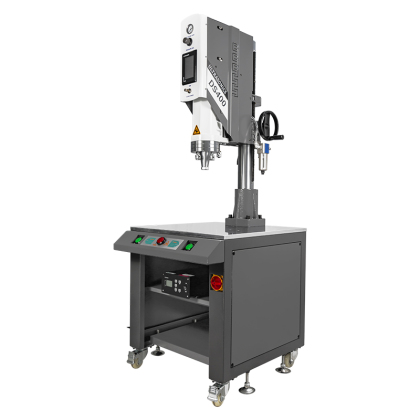

Stable Operation: Thanks to the thickened gravity die - casting process, the machines feature high stability and smooth operation, ensuring consistent welding quality.
Advanced Frequency Control: The welding machines support automatic frequency tracking across frequencies of 15KHZ, 20KHZ, 28KHZ, 30KHZ, 35KHZ, and 40KHZ. This ensures that the welding process can adapt to different plastic materials and welding requirements, maintaining optimal welding performance.
Rich Interfaces and Automation - Friendly: With a wide range of interfaces, the machines are easy to integrate into automated production lines, facilitating seamless connection with other industrial equipment for increased production efficiency.
User - Friendly Interface: Equipped with a 4.7 - inch human - machine interaction interface (4.3 - inch in some models), the operation is intuitive and convenient. The interface supports both Chinese and English, making it accessible to a global user base.
Precise Welding Control: It offers multiple welding modes, including time - based, energy - based, and ground - based welding. The welding amplitude can be adjusted from 10% to 100% with 1% precision, and there is an amplitude compensation function to ensure consistent welding results.
Comprehensive Protection Functions: The machines are equipped with various protection features such as mold impedance analysis and protection, overload protection, voltage protection (input), and transducer voltage protection. These functions safeguard the machine from damage during operation and extend its service life.
Quality Management and Data Recording: With quality management capabilities that allow for mutual detection of time and energy, as well as welding record and data export functions, users can easily monitor and analyze the welding process to improve product quality.
Powerful Processor and Communication: Powered by a 4 - core 32 - bit processor and featuring 485 communication, the machines can handle complex welding tasks and communicate with other devices effectively.
| Product Model | 15K - 4200W | 15K - 3200W | 15K - 2600W | 20K - 3000W | 20K - 2500W | 28K - 1200W | 30K - 1200W | 35K - 1200W | 40K - 800W |
|---|---|---|---|---|---|---|---|---|---|
| Working Frequency | 15KHZ | 15KHZ | 15KHZ | 20KHZ | 20KHZ | 28KHZ | 30KHZ | 35KHZ | 40KHZ |
| Working Power | 4200W | 3200W | 2600W | 3000W | 3000W | 3000W | 3000W | 3000W | 800W |
| Working Voltage / Air Source | 220V±10% / 0.2 - 0.7 Mpa | ||||||||
| Welding Stroke | 100MM | 75MM | 75MM | 75MM | 75MM | 75MM | 75MM | 75MM | |
| Lifting Mode | Hand - cranked | Hand - cranked | Hand - cranked | Hand - cranked | Hand - cranked | Hand - cranked | Hand - cranked | Hand - cranked | |
| Horizontal Adjustment Plate Size | L750W670 | L650W650 | L700W700 | L700W700 | L700W700 | L700W700 | L700W700 | L700W700 | |
| Cooling System | Air - cooled | Air - cooled | Air - cooled | Air - cooled | Air - cooled | Air - cooled | Air - cooled | Air - cooled | |
| Auxiliary Management (Pre - and Post - operation Time) | 0 - 10S | 0 - 10S | 0 - 10S | 0 - 10S | 0 - 10S | 0 - 10S | 0 - 10S | 0 - 10S | |
| Dual - station Support | No | No | No | No | No | No | No | No | |
| Working Frame Type | Cylindrical | Cylindrical | Cylindrical | Cylindrical | Cylindrical | Cylindrical | Cylindrical | Cylindrical | |
| Working Base Type | Deluxe Table | Deluxe Table | Deluxe Table | Deluxe Table | Deluxe Table | Deluxe Table | Deluxe Table | Deluxe Table | |
| Body Color | Gray / Green | Gray / Green | Gray / Green | Gray / Green | Gray / Green | Gray / Green | Gray / Green | Gray / Green | |
| Body Dimensions | L750×W900×H1900 | L650×W750×H1880 | L650×W750×H1880 | L650×W750×H1880 | L650×W750×H1880 | L650×W750×H1880 | L650×W750×H1880 | L650×W750×H1880 | |
| Body Net Weight | ≤260kg | ≤150kg | ≤150kg | ≤150kg | ≤150kg | ≤150kg | ≤150kg | ≤150kg | |
| Operation Interface | 4.3 - inch Touch Screen | 4.3 - inch Touch Screen | 4.3 - inch Touch Screen | 4.3 - inch Touch Screen | 4.3 - inch Touch Screen | 4.3 - inch Touch Screen | 4.3 - inch Touch Screen | 4.3 - inch Touch Screen | |
| System Language | Chinese / English | Chinese / English | Chinese / English | Chinese / English | Chinese / English | Chinese / English | Chinese / English | Chinese / English | |
| System Security | Management Password | Management Password | Management Password | Management Password | Management Password | Management Password | Management Password | Management Password |
