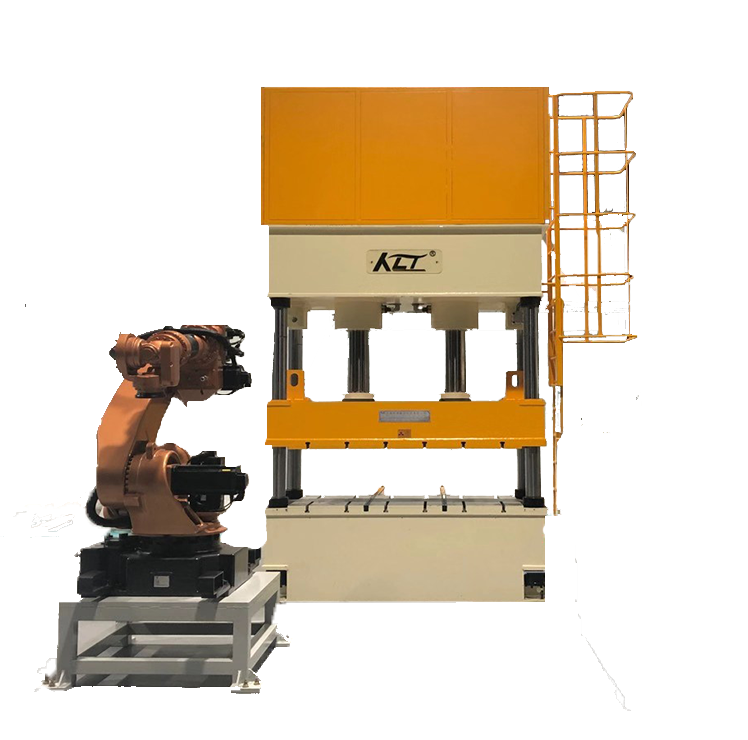

Material Preparation: Lay the carbon fiber prepreg flat between the upper and lower molds.
Molding Operation: Seal the mold and place it on the hydraulic molding platform. Then, subject it to high - temperature and high - pressure conditions in a specialized carbon fiber molding hydraulic press. This process cures the resin in the prepreg.
Product Removal: After the curing is complete, take the carbon fiber product off the hot press. This molding method offers advantages like high strength, high precision, low weight, minimal environmental impact, and is conducive to mass production, making it suitable for standardized and mass - produced components.

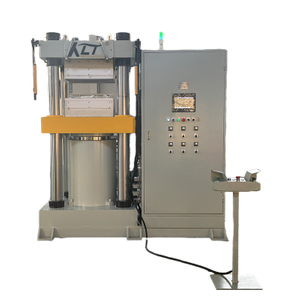

Servo - Controlled Hydraulic System: The servo - controlled oil circuit system enables adjustable and controllable pressure. It also features low noise, high - efficiency energy - saving, and a high product qualification rate.
Stable Temperature Control: Using a mold temperature controller for heating, the temperature can be maintained within an error range of ±1 degree. This stability significantly improves the product yield.
High Precision: With a pressure accuracy of ±2%, the machine ensures uniform temperature distribution and minimal heat dissipation.
Segmented and Zoned Control: It allows for segmented and zoned control of temperature and pressure. This means it can perform segmented pressurization, heating, and achieve a curve - shaped temperature rise.
Fully Automatic PLC Control: Pressure, displacement, and speed can be digitally set through the PLC control system.
Multi - Stage Heating: The heating process can be set with multiple heating stages, ensuring more accurate temperature control. The upper and lower parts can be heated independently.
User - Friendly Operation: The electrical control system, composed of an industrial PLC and a touch - screen human - machine interface, is easy to operate.
3C and Mobile Phone Industry: It is suitable for manufacturing AR smart glasses, helmets, mobile phone front and back covers, and protective cases.
Automotive and Motorcycle Industry: Used in the production of automotive and motorcycle modification parts, as well as license plate frames.
Aviation Industry: Applied to the manufacturing of aircraft components and UAV parts.
High - Tech Industry: Used for producing components for robots and quadruped robots.
Other Fields: Such as in the production of golf club heads.
| Model | 63T | 100T | 160T | 200T | 250T | 315T | 400T | 500T | 630T | 800T | 1000T |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Maximum Liquid Pressure (MPa) | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Maximum Opening Height (mm) | 700 | 800 | 700 | 900 | 1000 | 1250 | 1400 | 1500 | 1500 | 1500 | 1500 |
| Slide Stroke (mm) | 400 | 500 | 400 | 500 | 600 | 800 | 800 | 800 | 900 | 900 | 900 |
| Effective Worktable Area (Left - Right, mm) | 500 | 700 | 800 | 900 | 900 | 1200 | 1200 | 1400 | 1500 | 1600 | 1600 |
| Effective Worktable Area (Front - Back, mm) | 500 | 600 | 800 | 900 | 900 | 1200 | 1200 | 1400 | 1500 | 1600 | 1600 |
| Unloaded Descending Speed (mm/s) | ≥100 | - | - | - | - | - | - | - | - | - | - |
| Working Speed (mm/s) | 8 - 15 | - | - | - | - | - | - | - | - | - | - |
| Return Speed (mm/s) | 70 | - | - | - | - | - | - | - | - | - | - |
| Ejection Force (T) | 20 | 20 | 30 | 50 | 50 | 63 | 100 | 100 | 100 | 120 | 120 |
| Ejection Stroke (mm) | 200 | 200 | 200 | 250 | 250 | 250 | 300 | 300 | 300 | 350 | 350 |
| Servo Power (KW) | 7 | 10 | 14 | 18 | 25 | 25 | 45 | 52 | 25 | 25 | 30 |
Energy - Saving and High - Precision: The machine is designed for significant energy savings and high - repeat accuracy, with a relatively low failure rate. It also meets the IP54 protection standard.
Safety Protection: Optional safety light curtains can be installed to protect the safety of operators, especially their hands and fingers.
Versatile Function Selection: It can quickly switch between constant - pressure and constant - stroke functions to meet different product requirements, and is capable of performing operations such as pressing, shaping, trimming, stretching, and sizing.
