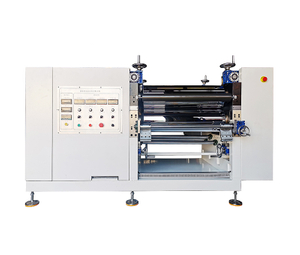

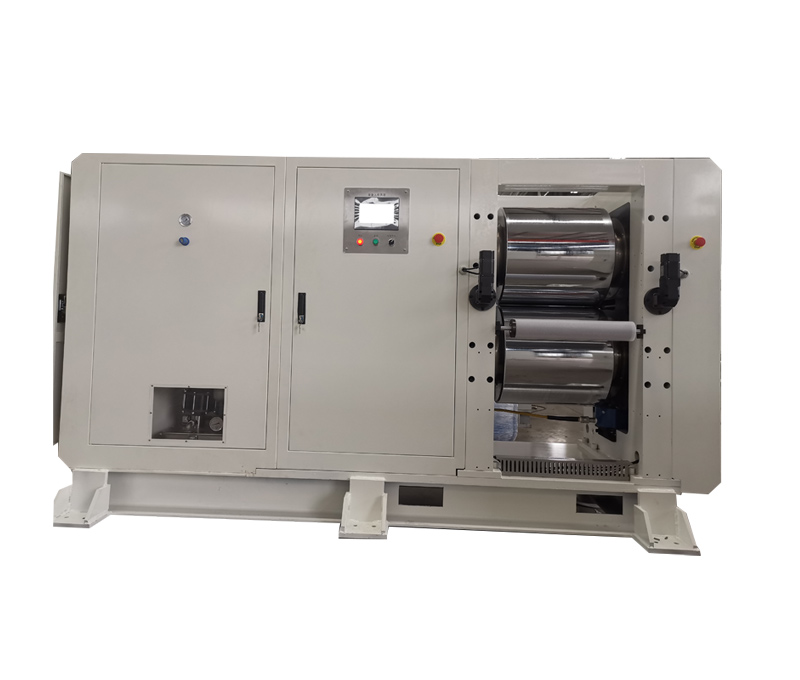

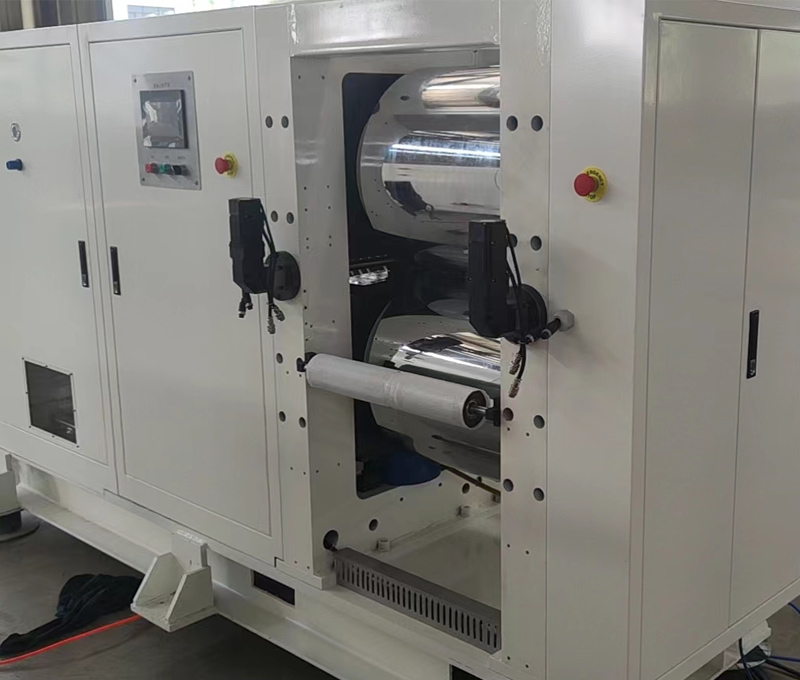

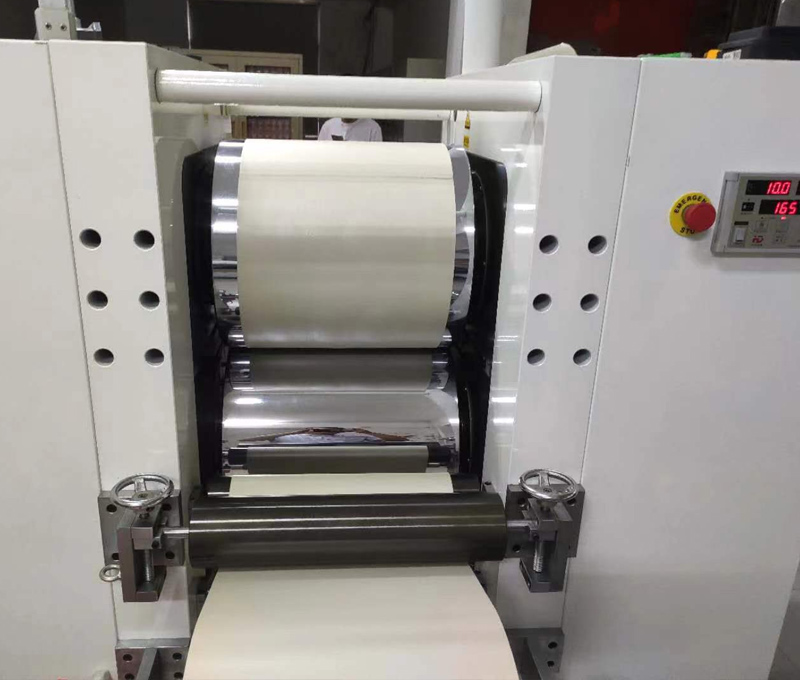

Fluororubber Two Roll Precision Rolling Machine

Core Technical Highlights

1. High-Precision Roller Design

• Rollers are made of high-strength alloy steel or coated with specialized surfaces (e.g., hard chrome), with a surface hardness ≥ HRC 60 and mirror polishing (Ra ≤ 0.2μm) to eliminate air bubbles and impurities.

• Roller gap adjustment accuracy: ±0.01mm, supporting precision forming of ultra-thin films (from 0.1mm) to thick sheets (up to 10mm).

2. Intelligent Temperature Control

• Rollers feature oil-circulation or electric heating systems with a temperature range of ambient temperature to 200℃ (±1℃ accuracy), tailored for FKM vulcanization requirements.

• Equipped with a PLC + touchscreen interface for real-time monitoring of pressure, speed, and temperature, with programmable recipe storage.

3. Safety & Stability

• Hydraulic gap adjustment system paired with emergency braking to prevent overload.

• Fully enclosed safety guard with interlock mechanism, compliant with CE/ISO standards.

4. Energy Efficiency

• Variable-frequency drive motor reduces energy consumption by 30%.

• Adjustable roller speed range: 3–30m/min, adaptable to diverse production needs.

Key Technical Specifications

Applications

• FKM Products: O-rings, oil seals, diaphragms, high-temperature gaskets.

• Specialized Rubber Processing: Precision calendering of silicone rubber, HNBR (hydrogenated nitrile rubber).

• Industries: Automotive manufacturing,新能源 battery sealing, military equipment, medical devices.

Support Services

• Customization: Optional roller dimensions, heating methods, and automated feeding systems.

• Technical Support: Process debugging, operator training, lifetime maintenance.

• Warranty: 1-year full machine warranty, 3-year extended coverage for core components.

Manufacturer Advantages

• 20+ Years of Expertise: Serving 500+ global clients in rubber/plastic machinery.

• Certifications: ISO 9001 Quality Management System, CE (EU), and UL (North America) compliance.

•
