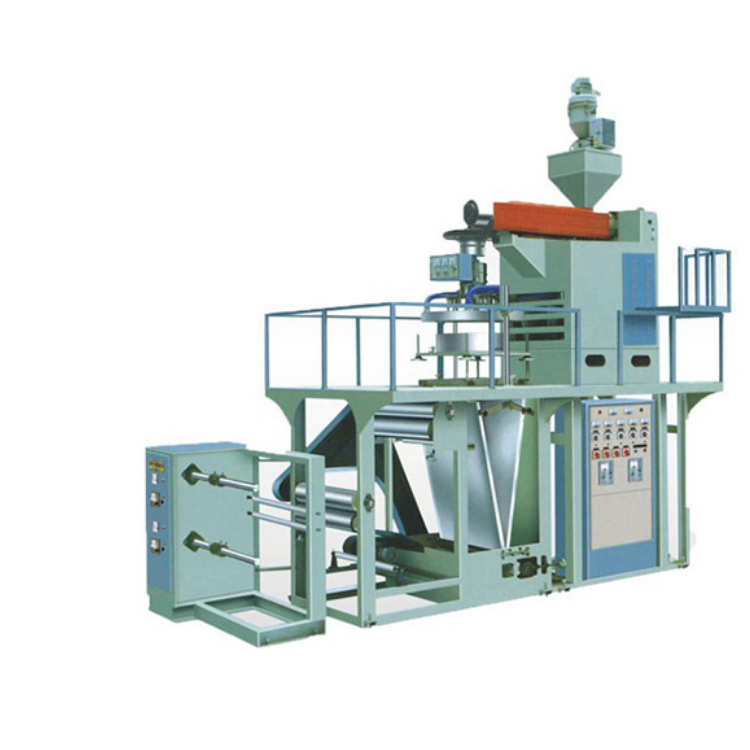

High - Quality Screw and Barrel: The screw and barrel are made of 38CRMOALA alloy steel. After nitriding treatment and precision machining, they have excellent hardness and corrosion resistance, ensuring long - term stable operation and reliable performance during the plastic - melting process.
Advanced Die Head and Cooling System
The die head is hard - chromium plated, featuring a roller - rotating mandrel structure. This design enables uniform and smooth material discharge, which is crucial for producing films with consistent thickness.
The air - cooling device has a labyrinth - type structure. It can output uniform air volume and is equipped with automatic temperature control and heating functions. This helps to cool the blown film effectively and maintain the film's quality during the production process.
Automatic Material Suction: This option can automatically transfer plastic raw materials to the machine, reducing manual labor and improving production efficiency.
Surface Treatment: Surface treatment equipment can enhance the surface properties of the film, such as improving its printability and adhesion, making it more suitable for post - printing and other processing requirements.
Rotating Die Head: A rotating die head can further improve the uniformity of the film thickness and the quality of the film, especially beneficial for high - end
film production.
Air Compressor: An air compressor provides the necessary compressed air for the machine's operation, ensuring the stable operation of pneumatic components.
Model | XYF - 55 | XYF - 60 | XYF - 70 |
---|---|---|---|
Applicable Material | PP | PP | PP |
Film Width | 100 - 550mm | 100 - 600mm | 300 - 800mm |
Film Thickness | 0.03 - 0.11mm | 0.03 - 0.11mm | 0.03 - 0.11mm |
Output | 35kg/h | 40kg/h | 60kg/h |
Screw Diameter | Φ50 | Φ60 | Φ70 |
Screw L/D Ratio | 28:1 | 28:1 | 28:1 |
Barrel Cooling | 370w×2 | 370w×2 | 370w×3 |
Drive Motor | 11kw | 15kw | 18.5kw |
Die Opening | Φ150 | Φ250 | Φ300 |
Blower | 1.5kw | 1.5kw | 2.2kw |
Pressure Wheel | Φ165×600mm | Φ165×650mm | Φ165×850mm |
Take - up Motor | 1.5kw | 2.2kw | 2.2kw |
Take - up Speed | 5 - 60m/min | 5 - 60m/min | 5 - 60m/min |
Rewinding Speed | 5 - 60m/min | 5 - 60m/min | 5 - 60m/min |
Rewinding Motor | 5N.m | 5N.m | 5N.m |
Overall Dimensions | 4.5×1.1×3.0m | 4.8×1.1×3.3m | 5.0×1.5×3.8m |
The unit price of this product is $60,000.00 per unit. The minimum order quantity is 1 unit, and the total supply capacity is 999 units. The product is available for a long - term period. If you are interested in this product, you can contact us for more information and inquiries.
