Rubber - Wheel Specifications: The rubber wheel has a size of Ø100x50mm and a hardness of 80 degrees, which is optimized for effective hot stamping contact with various products.
Power Supply: It operates at a rated voltage of 220V, 50HZ, with a power consumption of 3.2KW, ensuring stable and reliable power support during operation.
Dimensions: The approximate external dimensions of the machine are 1200×700×1700MM (the actual size shall prevail), making it suitable for installation in different production environments.
Stamping Pressure: Driven by a 750W servo motor, the maximum stamping pressure ranges from 500 - 700kg, providing sufficient force for high - quality hot stamping.
Stamping Stroke and Product Compatibility: The maximum servo stamping stroke is 850mm. The product fixture height is approximately 350mm, and the machine can handle products with a height between 50 - 450mm, offering great flexibility in processing different - sized items.
Machine Weight: The machine weighs approximately 390kg, which combines stability and portability to some extent.
Worktable: The worktable measures 220x300mm and is designed as a T - slot plate, facilitating the fixation and adjustment of product fixtures.
Stamping Speed: The theoretical hot stamping speed is about 8 - 12 seconds per cycle (excluding loading and unloading time), enabling relatively high - volume production.
Air Pressure: It requires a working air pressure of 0.5 - 0.6mpa to ensure the proper operation of pneumatic components.
Control System: The machine adopts an industrial computer and a 10 - inch touch screen for circuit control. This control system provides an intuitive operation interface and powerful control functions.
Stamping Temperature: The stamping temperature can be adjusted from room temperature to 330℃, meeting the requirements of different hot - stamping materials.

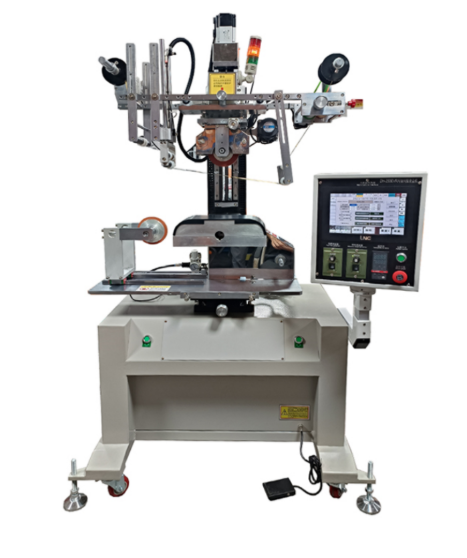

Versatile Stamping: This 2 - axis automatic edge - seeking CNC hot stamping machine is capable of meeting the hot - stamping requirements for most circular and elliptical products at any angle. It offers multiple hot - stamping operation modes, which can be flexibly selected according to different product shapes and hot - stamping needs.
Data Management: The industrial computer has functions such as trial calibration and graphic import. It can store hundreds of sets of hot - stamping data, facilitating quick switching between different production tasks and product - specific stamping parameter settings.
